Features Ubiquiti USW-Pro-Max-16-PoE

16-port L3 managed switch from Ubiquiti4x 2.5 Gigabit Ethernet ports with PoE++12x Gigabit Ethernet ports with PoE+Total PoE budget: 180 Watts2x 10 Gigabit SFP+ portsThroughput speed: 84 GbpsSimple overview with Etherlighting technologyWorks with UniFi Network Controller softwareEasy remote managementLayer 3 functions (inter-VLAN routing, static routing, DHCP server)Fanless designSuitable for wall mounting, rack mount kit available separately

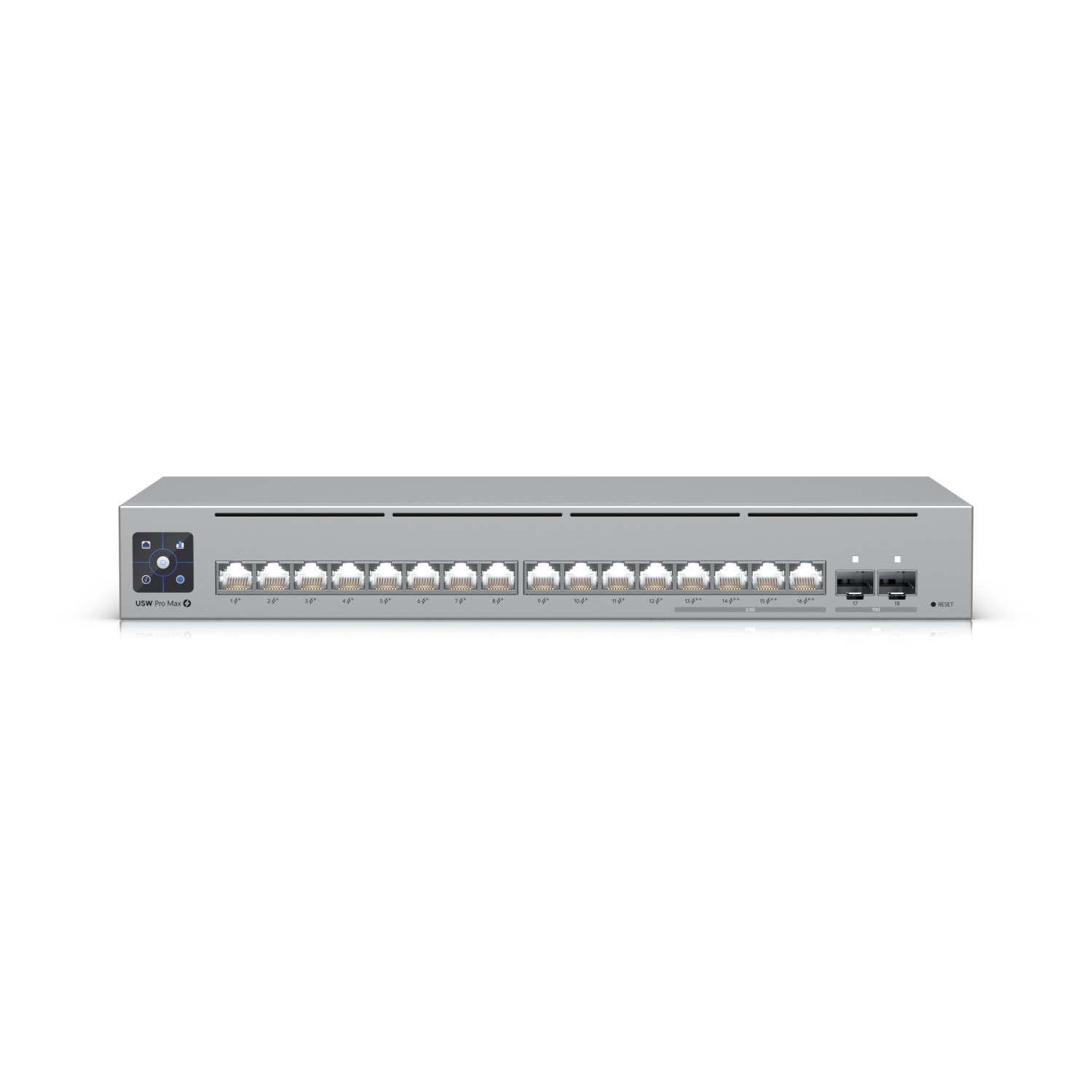

16-port PoE++ switch from Ubiquiti

The Ubiquiti USW-Pro-Max-16-PoE is the basis of your business UniFi network. The switch is equipped with a total of 16 ports. Of these, 4 have a maximum speed of 2.5 Gbps and 12 have a Gigabit throughput. The USW-Pro-Max-16 also has 2x 10G SFP+ ports for fiber optic connections. This gives a total throughput speed of 84 Gbps.

Power over Ethernet

The USW-Pro-Max-16-PoE is equipped with 4x 2.5G PoE++ ports and 12x 1G PoE+ ports. You connect all your PoE-powered network equipment to this. The power then goes via the Ethernet cable, so you don't need an external socket. This makes your network installation a lot more flexible!

Etherlighting technology

The integration of Etherlighting gives you an easy overview of which port is connected to which. You link a color to the different port speeds, port locations or different VLANs. Colored labels are therefore a thing of the past. On the switch you can immediately see which port and cable are connected to it.

Ubiquiti UniFi Network Controller software

With Ubiquiti UniFi Network Controller software you can easily manage and configure the USW-Pro-Max-16-PoE switch within a graphical user interface. For example, read the status per port or set any VLANs. The user-friendly software also makes it possible to access multiple switches, so that you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform updates or adjust configurations with the software. The UniFi software is free to use. However, a Controller is required for this.

Package contents

• Ubiquiti UniFi USW-Pro-Max-16-PoE
• Power cable
• Mounting material for wall mounting
• Manual
