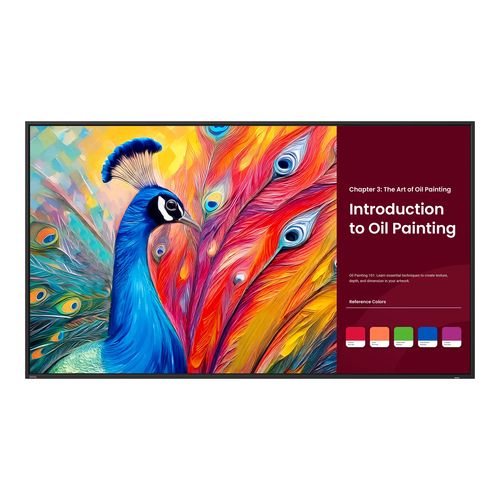

iiyama LH8664UHS-B2AG Signage Display Digital signage flat panel 2.17 m (85.6") Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
iiyama LH8664UHS-B2AG, Digital signage flat panel, 2.17 m (85.6"), 3840 x 2160 pixels, Wi-Fi, 24/7
Availability:: Arriving soon
Elevate your visual communication with the LH8664UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
| Display | |
|---|---|
| Panel type | IPS |
| Display diagonal | 85.6 " |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | N |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25 % |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DVI port | N |
| USB port | Y |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Y |
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 16 mm |
| Bezel width (side) | 14 mm |
| Bezel width (top) | 14 mm |
| Bezel colour | Black |
| Anti-glare screen | Y |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) | Y |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,POL,RUS,SWE |
| Operating hours (hours/days) | 24/7 |
| HDCP | Y |
| HDCP version | 1.4/2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 145 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 145 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Computer system | Y |
| Built-in processor | Y |
| Processor model | A53 |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 4 |
| Internal memory | 2 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Weight & dimensions | |
| Display width | 1938 mm |
| Display depth | 79.5 mm |
| Display height | 1109 mm |
| Display weight | 47900 g |
| Packaging data | |
| Package width | 2125 mm |
| Package depth | 2125 mm |
| Package height | 1275 mm |
| Package volume | 73700 cm³ |
| Package weight | 62200 g |
| Packaging content | |
| Remote control included | Y |
| Batteries included | Y |
| Cables included | AC,HDMI |
| Mounting kit | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Network | |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Technical details | |
| Audio in (mini jack) | Y |
| Other features | |
| Quick start guide | Y |
| Audio output | Mini Jack |
| Power supply type | Internal |
