ATEN 4X4 True 4K HDMI Martrix Switch
ATEN 4X4 True 4K HDMI Martrix Switch, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, Black, Metal
Availability: Arriving Soon
ATEN's VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch1x LIN2-418K-E12G Power Cord1x 2XRT-0106G IR Remote Control1x 2XRT-0003G IR Receiver1x Rack Mounting Kit 1x User Instructions
| Features | |
|---|---|
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Y |
| HDCP version | 2.2 |
| 3D | Y |
| EDID management | Y |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 1U |
| Remote control included | Y |
| Display | |
| Built-in display | Y |
| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
| Power consumption (max) | 17.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 3760 g |
| Master (outer) case length | 556 mm |
| Master (outer) case width | 247 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case net weight | 2750 g |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width | 152.8 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2750 g |
| Package width | 247 mm |
| Package depth | 556 mm |
| Package height | 153 mm |
| Package weight | 3760 g |
| Packaging content | |
| Cables included | AC |
| Mounting brackets included | Y |

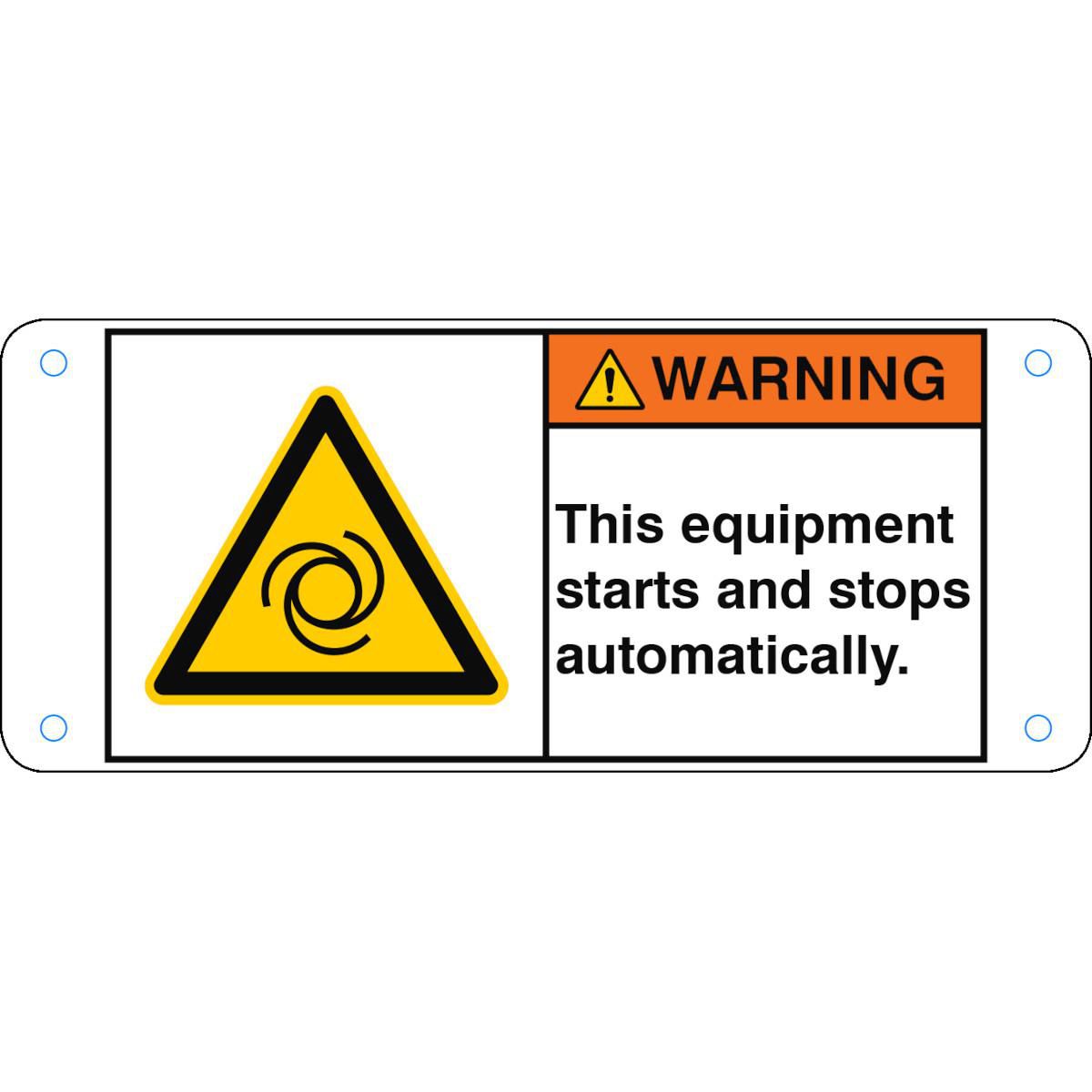

ISO Safety Sign - This
Individual Pipe Markers on a
PowerIT High Density Rack

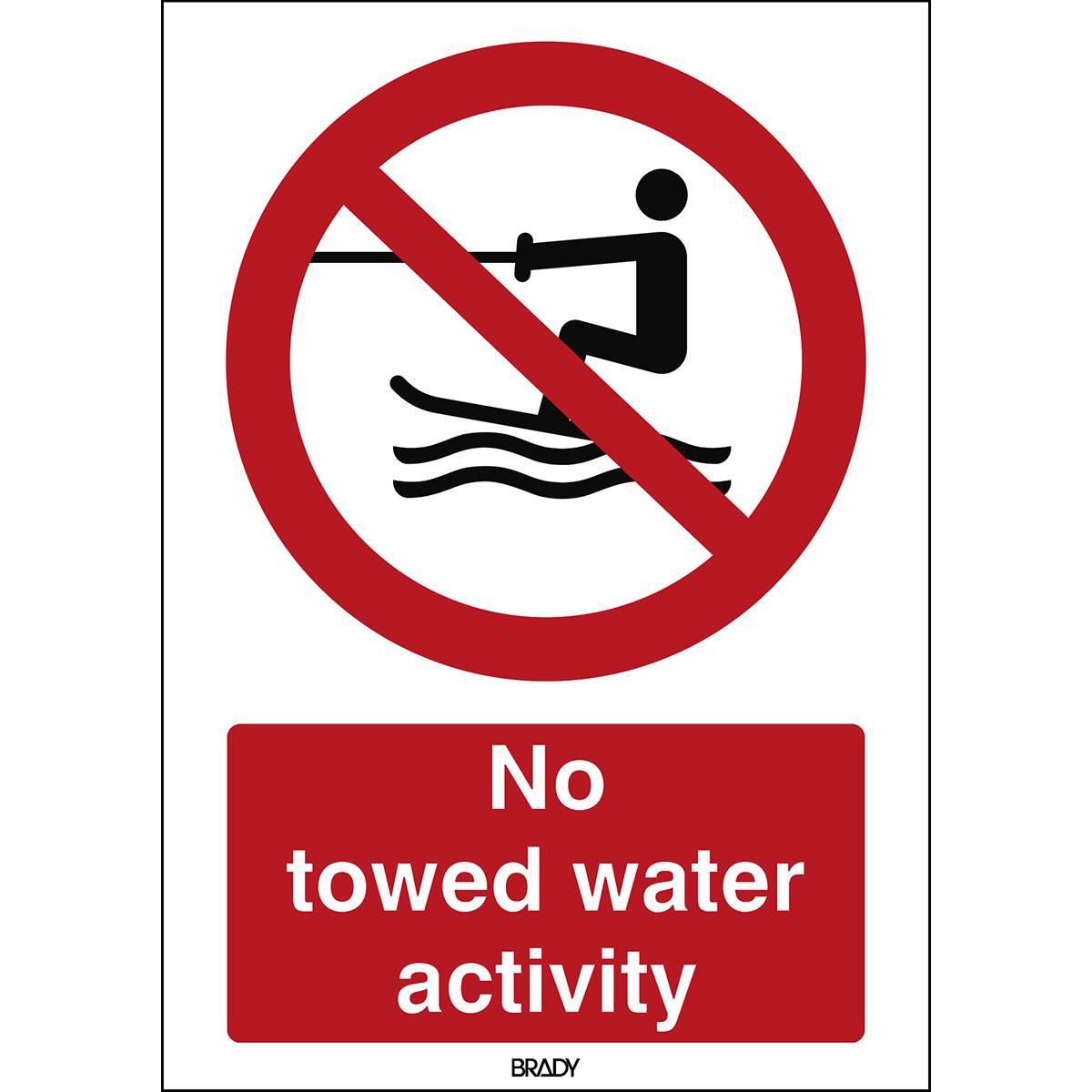

ISO Safety Sign - No towed
LANcare Basic XL
Polyester Cable Tag

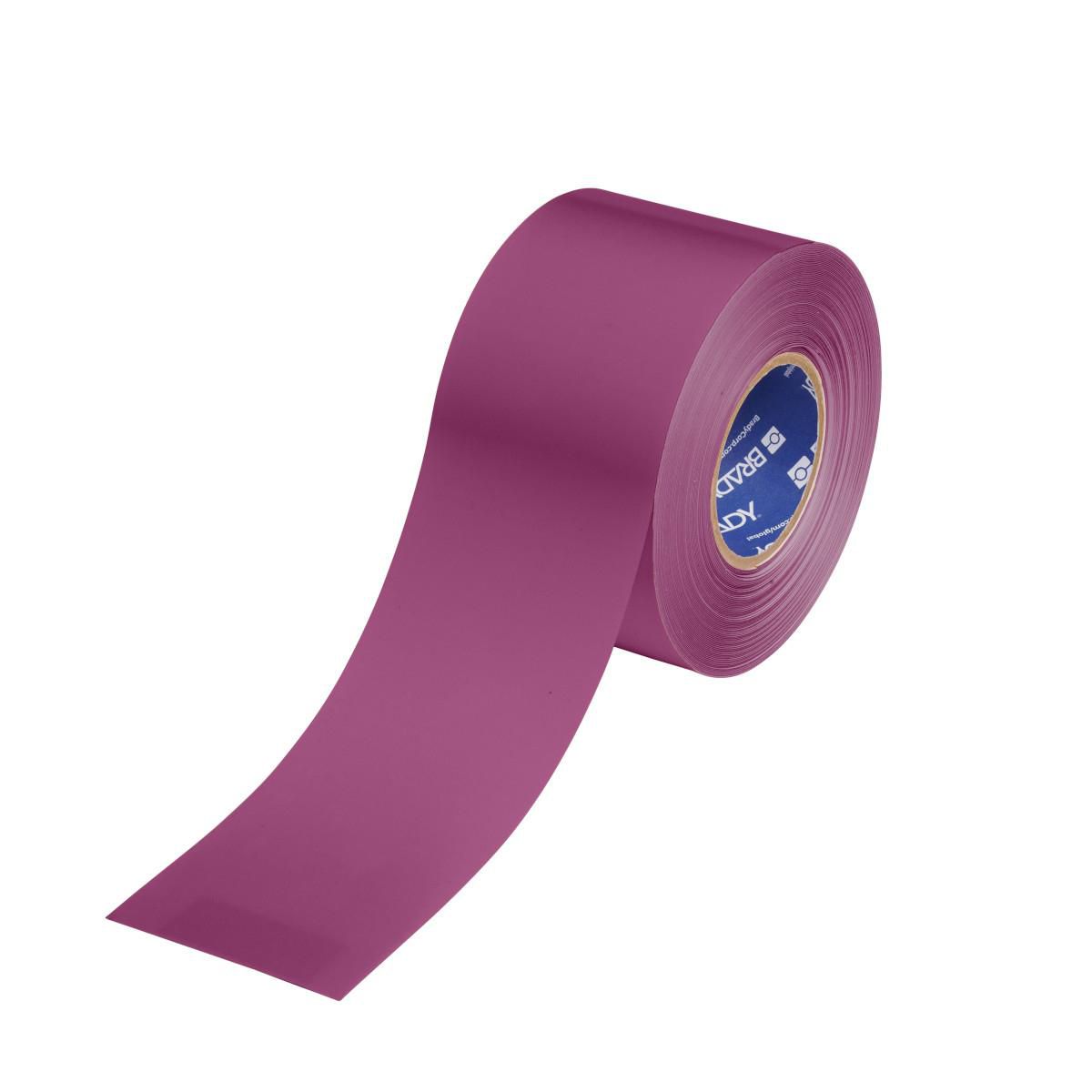

ToughStripe Max Solid Floor

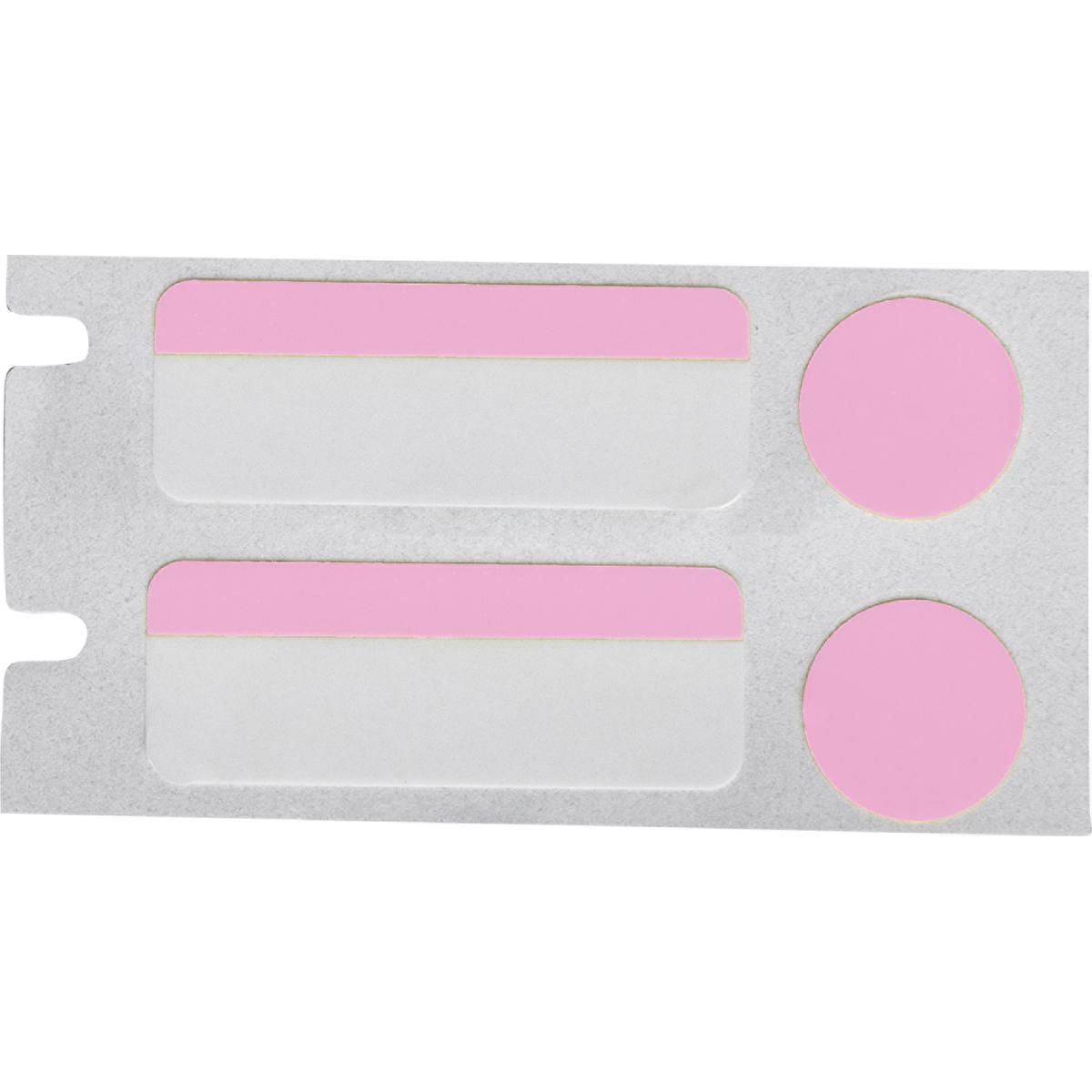

Polyester Labels for the
