TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 19000 Mbit/s, WPA, WPA2, WPA3, 10000 Mbit/s
Availability: Arriving Soon
Multi-Link Operation (MLO)Enables devices to simultaneously send and receive data across different frequency bands and channels. Two 10G PoE++ PortsBoosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.Auto Channel Selection and Power AdjustmentBoost WiFi performance and minimize interference for your network.Intelligent Power ManagementOffers more reliable network operation for your business.Centralized Cloud ManagementManage the whole network locally or from the cloud.Omada Mesh TechnologyMore flexible and convenient wireless deployment.△PoE++ PowerSupports both 12V DC and 802.3bt PoE++ for flexible installations.
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| 6 GHz | Y |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11be,IEEE 802.11g,IEEE 802.11n |
| Number of users | 760 user(s) |
| Automatic channel selection | Y |
| Automatic channel scanning | Y |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| VLAN support | Y |
| Rate limiting | Y |
| Flow control support | Y |
| Band steering | Y |
| Airtime Fairness (ATF) | Y |
| Quality of Service (QoS) support | Y |
| BeamForming | Y |
| Security | |
| Security algorithms | WPA,WPA2,WPA3 |
| Access Control List (ACL) | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Y |
| Power | |
| Power over Ethernet (PoE) | Y |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Y |
| LED indicators | Y |
| Antenna | |
| Antenna type | Internal |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 280 mm |
| Height | 46.5 mm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Y |
| Quick start guide | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
ISO Safety Sign - Emergency

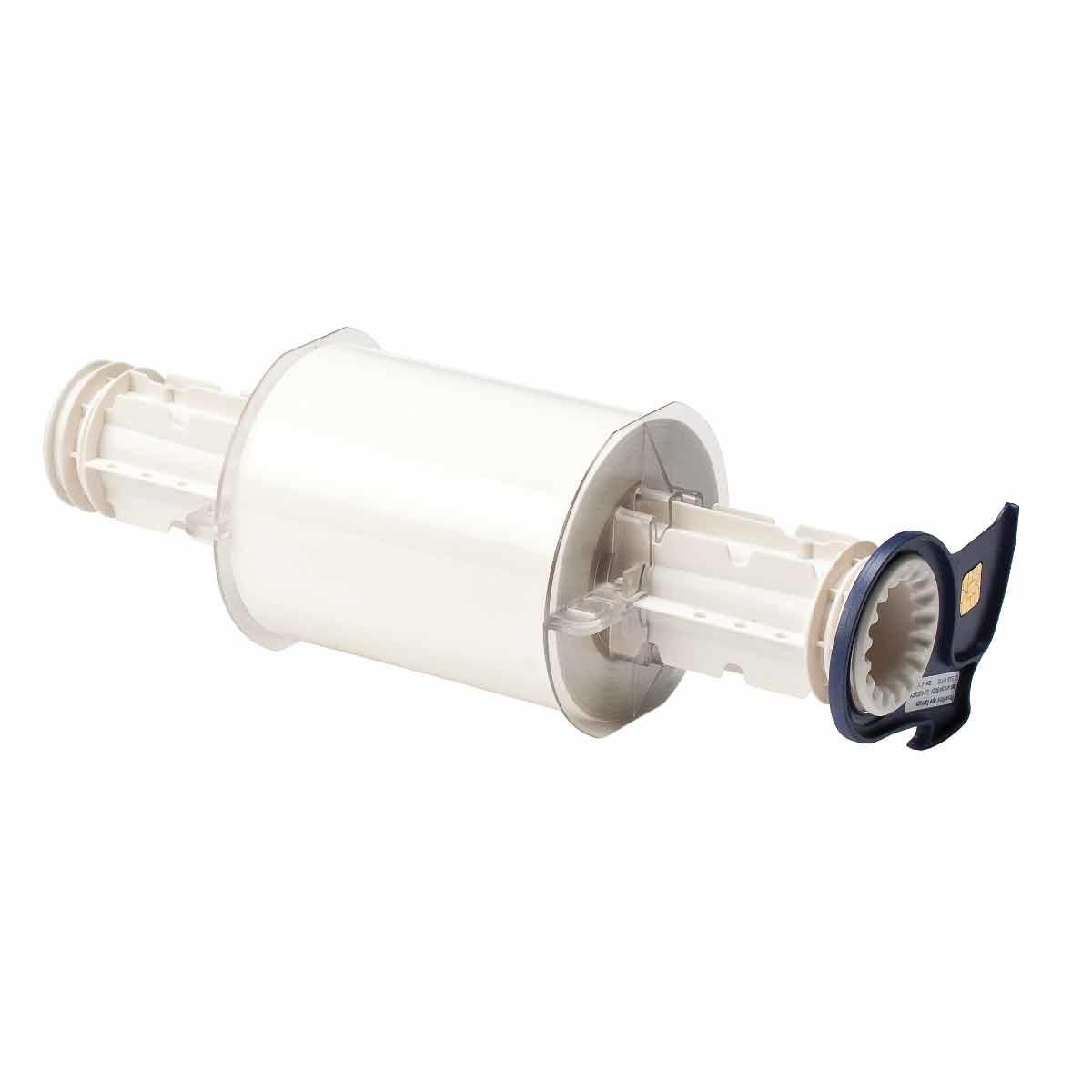

BBP85 Tape - Vinyl 100 mm

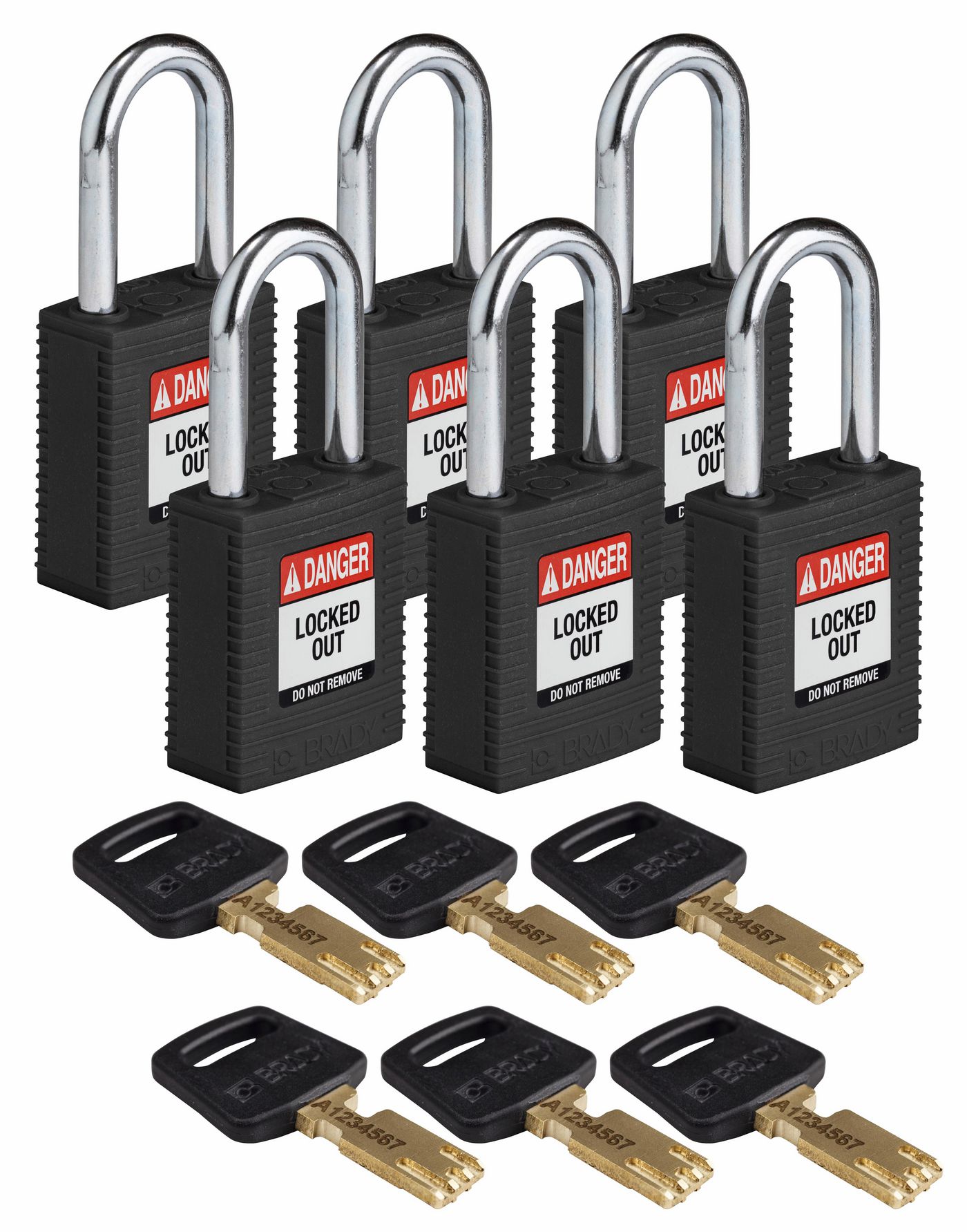

SafeKey Padlocks - Nylon

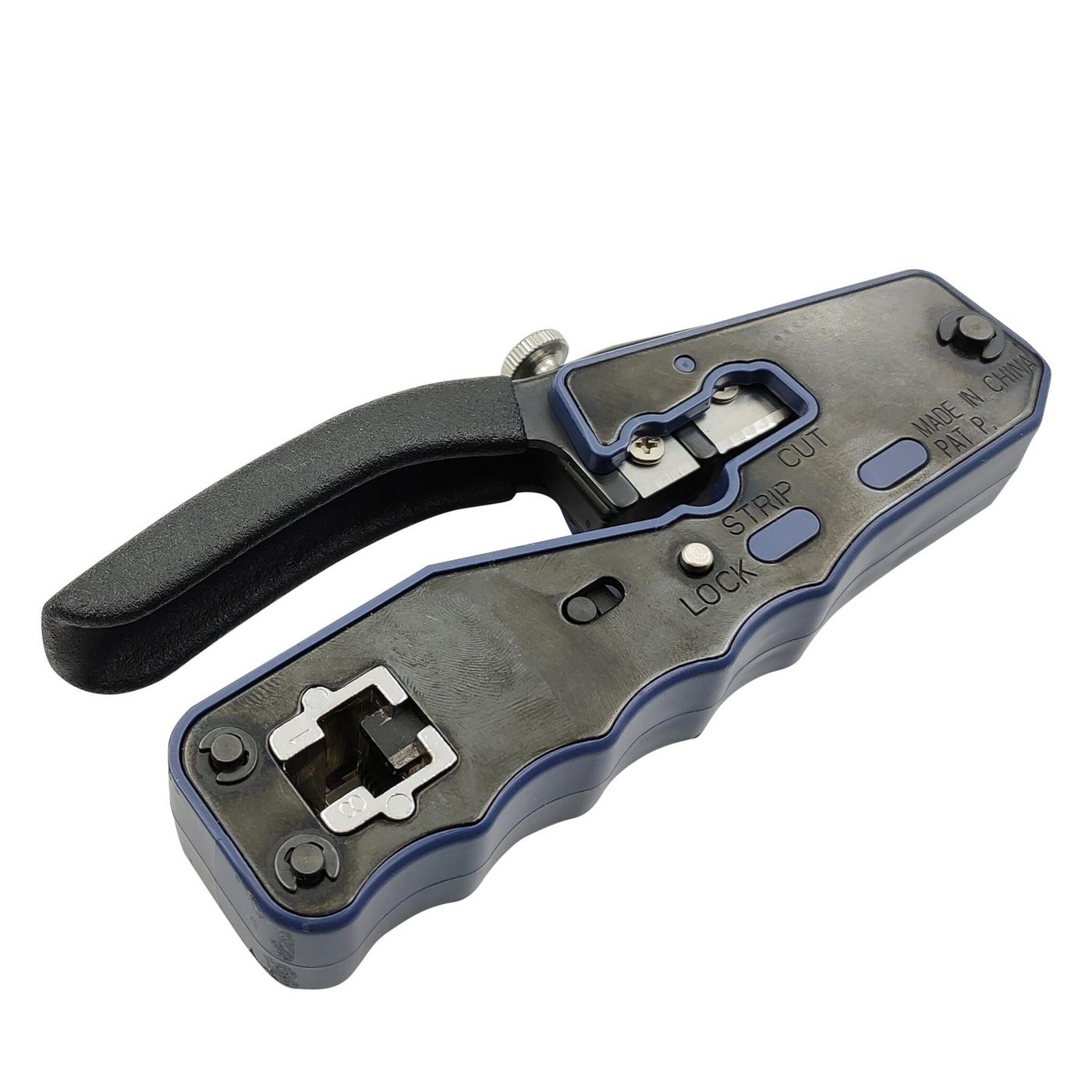

Crimping tool for

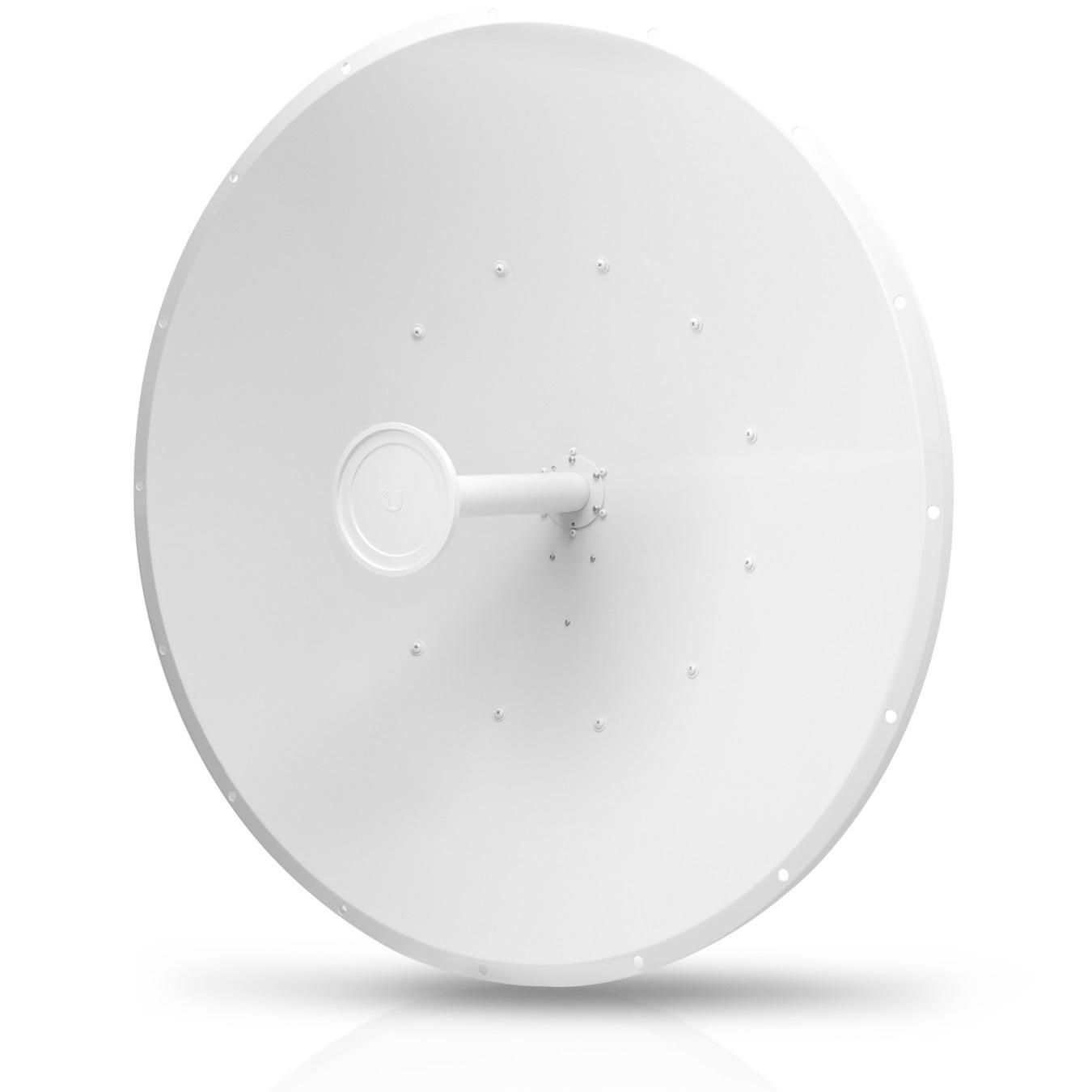

5 GHz airFiber Dish, 34 dBi,
