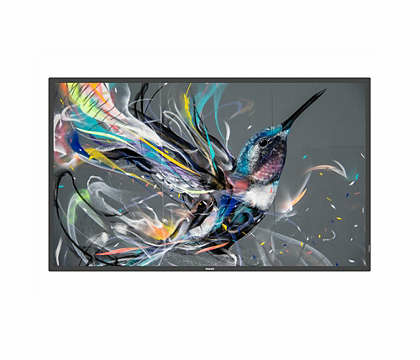

iiyama TE8614MIS-B1AG Signage Display Interactive flat panel 2.17 m (85.6") LCD Wi-Fi 435 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
iiyama TE8614MIS-B1AG, Interactive flat panel, 2.17 m (85.6"), LCD, 3840 x 2160 pixels, Wi-Fi, 24/7
Availability:: Arriving soon
The TE8614MIS-B1AG is an extraordinary 4K UHD interactive display setting a new standard for innovation and performance. With a host of advanced features like a Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR+ with Palm Rejection, iiWare 11 with Android 13, Wifi, and the iiyama (DMS) Device management platform. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. Boasting a new 4K Interface with customizable User Profiles for simple login and access to your very own bespoke applications and Cloud Drives, the TE8614MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users. This display transforms collaboration, communication, engagement, making it a cornerstone for modern workplaces, educational institutions, dynamic meeting spaces and beyond.
| Display | |
|---|---|
| Panel type | VA |
| Display diagonal | 85.6 " |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 435 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Y |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 50 |
| Multi-touch | Y |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.494 x 0.494 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Surface hardness | 7H |
| Glass thickness | 3 mm |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB port | Y |
| USB ports quantity | 6 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Y |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Y |
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 4 |
| RMS rated power | 54 W |
| Design | |
| Product design | Interactive flat panel |
| Orientation | Horizontal |
| Product colour | Black |
| Screen shape | Flat screen |
| VESA mounting | Y |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 41 mm |
| Bezel width (side) | 16.5 mm |
| Bezel width (top) | 16.5 mm |
| Bezel colour | Black |
| Anti-glare screen | Y |
| Positioning accuracy | 1 mm |
| Performance | |
| On Screen Display (OSD) | Y |
| On Screen Display (OSD) languages | CZE,DEU,DUT,ENG,ESP,FRE,ITA,POL,RUS |
| Operating hours (hours/days) | 24/7 |
| Pen type | Passive pen |
| Writing tools | Finger,Passive pen |
| HDCP | Y |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 267 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Built-in processor | Y |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G610 MP4 |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Weight & dimensions | |
| Display width | 1957 mm |
| Display depth | 86 mm |
| Display height | 1171 mm |
| Display weight | 63600 g |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 2110 mm |
| Package height | 1291 mm |
| Package weight | 80200 g |
| Packaging content | |
| Remote control included | Y |
| Batteries included | Y |
| Stylus pen | Y |
| Number of stylus pens | 4 |
| Cables included | HDMI,Power,USB |
| Mounting kit | Y |
| Wi-Fi module included | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Y |
| Other features | |
| Quick start guide | Y |
| Power supply type | Internal |
