Industrial Gigabit PoE+

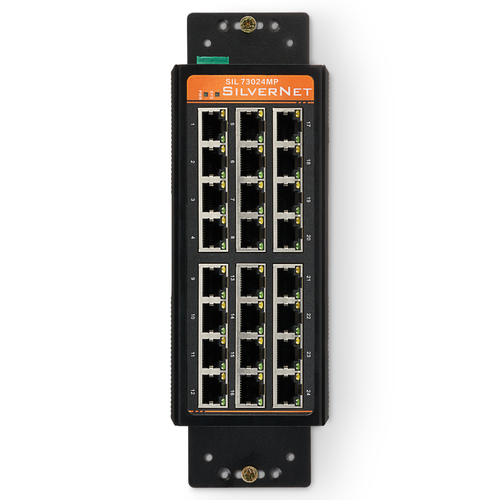

SilverNet SIL 73024MP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Availability: Arriving Soon
The SIL 73024MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, boasting 24 x 10/100/1000Base-T ports, with 16 capable of providing PoE+.Like its Series 7 counterparts, this switch offers smart features such as a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.It serves as a flexible solution for extending Ethernet across distances through fiber daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. Additionally, it functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments.Complying with the IEEE802.3af/at standard, the switch facilitates Power-over-Ethernet delivery via twisted pair cables.
Switch type: Managed Switch layer: L2 Quality of Service (QoS) support: Y Web-based management: Y Traffic classification: Y Traffic shaping: Y Configuring Location Settings (CLI): Y System event log: Y User operation log: Y Basic switching RJ-45 Ethernet ports quantity: 24 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 24 Console port: RJ-45 Networking standards: IEEE 1588,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3az,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z Copper ethernet cabling technology: 10BASE-TX,100BASE-TX,1000BASE-TX Cable types supported: Cat5e,Cat6 Port mirroring: Y Full duplex: Y IP routing: Y Policy-based routing: Y Half duplex: Y Flow control support: Y Link aggregation: Y Broadcast storm control: Y Rate limiting: Y Auto MDI/MDI-X: Y Spanning tree protocol: Y Ethernet LAN data rates: 10,100,1000 Auto-negotiation: Y VLAN support: Y Virtual LAN features: IP subnet–based VLAN,Interface-based VLAN,Port-based VLAN,Tagged VLAN,VLAN Identifier ( VLAN ID) Number of VLANs: 4095 Switching capacity: 56 Forwarding rate: 29.76 MAC address table: 8000 Store-and-forward: Y Latency (10-100 Mbps): 7 Latency (1 Gbps): 7 Static route: Y Jumbo frames support: Y Jumbo frames: 10000 Packet buffer memory: 4 DHCP features: DHCP snooping Access Control List (ACL): Y IGMP snooping: Y MAC address filtering: Y Loop protection: Y IP-MAC-Port binding: Y Password protection: Y Multicast support: Y Rack mounting: N Stackable: Y Product colour: Black Housing material: Aluminium Temperature sensor: Y Reset button: Y LED indicators: Data,LAN,PoE,Power International Protection (IP) code: IP40 Wall mountable: Y DIN rail mounting: Y Firmware upgradeable: Y Minimum system requirements: Web Browser Power supply included: N Redundant power supply (RPS) support: Y Number of power supply units: 1 DC input voltage: 9 - 56 Power consumption (typical): 7 Power consumption (max): 30 Power protection features: Overload,Reverse polarity Power over Ethernet (PoE): Y Power over Ethernet (PoE) type supported: Active PoE Power over Ethernet (PoE) ports quantity: 16 Power over Ethernet plus (PoE+) ports quantity: 16 Power over Ethernet (PoE) voltage: 48 Power over Ethernet (PoE) power per port: 30 Total Power over Ethernet (PoE) budget: 480 Operating temperature (T-T): -40 - 75 Storage temperature (T-T): -40 - 85 Operating relative humidity (H-H): 5 - 90 Width: 70 Depth: 140 Height: 160 Weight: 1150 Cables included: RS-232 Quick start guide: Y User guide: Y Manual: Y Package type: Box Package width: 215 Package depth: 205 Package height: 95 Package weight: 1400 Certification: CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UK Trade Tariff code: 85176200
