ATEN 16-Port USB - PS/2 VGA KVM Switch
ATEN 16-Port USB - PS/2 VGA KVM Switch, 2048 x 1536 pixels, QXGA, Rack mounting, 6.5 W, 1U, Black
Availability: In Stock
The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.1x CS1316 KVM Switch with Rack Mount Kit1x LIN5-27X6-U21G Console cable1x Firmware Upgrade cable1x Foot Pad set (4 pads)1x 0AD8-1605-24M1 Power Adapter1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Console ports | VGA (D-Sub) |
| Performance | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | Y |
| Hot-Plug support | Y |
| Firmware upgradeable | Y |
| Design | |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Y |
| LED indicators | Y |
| Push button | Y |
| Hot keys | Y |
| Display | |
| Built-in display | N |
| On Screen Display (OSD) | Y |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.5 W |
| System requirements | |
| Windows operating systems supported | Y |
| Linux operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 161.3 mm |
| Height | 44 mm |
| Weight | 2500 g |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2874 g |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Y |
| Manual | Y |
| AC adapter included | Y |
| Logistics data | |
| Master (outer) case net weight | 7500 g |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9270 g |
| Products per master (outer) case | 3 pc(s) |
Fiber Patch Cable -
ISO Safety Sign - Warning
ISO Safety Sign - Door opens
Retro Reflective Tape for
ISO Safety Sign - Warning

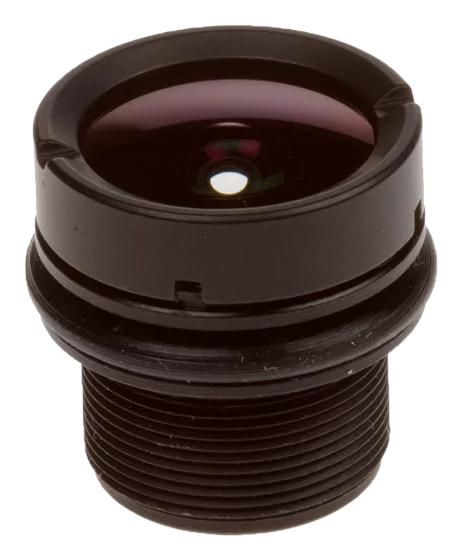

AXIS Sort CCTV objektiv
