NEC SB-07BC AV receiver
NEC SB-07BC, 1920 x 1200 pixels, AV receiver, 100 m, Wired, HDCP
Availability:: Arriving soon
OPS HDBaseT Receiver SB-07BCHDBaseT Transmitter and OPS Receiver - a clever solution allowing compressed HD multimedia content transmission up to 100 m through a single network cable.HDBaseT delivers uncompressed full HD digital video plus audio, 100BaseT Ethernet and control signals through a single 100 m LAN cable. The HDBase T transmitter (KT-100TX1) converts the input signal source and provides the high quality signals using a network cable to the HDBaseT receiver (SB-07BC) unit that is embedded into the display.Compatible with NEC large format displays and projectors featuring OPS technology and with the majority of third party HDBaseT senders.- no more cable length limitations- one single cable only- easy setup and operation- wide range of applications- compact and fully embedded- high flexibility
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5,Cat6 |
| Maximum transfer distance | 100 m |
| Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
| Supported graphics resolutions | 640 x 480 (VGA),1920 x 1200 (WUXGA) |
| Bandwidth | 10.2 Gbit/s |
| Audio formats supported | PCM |
| HDCP | Y |
| Colour depth | 8 bit |
| Certification | CE, VCCI, RCM, FCC |
| Compatible products | NEC OPS |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Y |
| RJ-45 input ports | 2 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Power | |
| Operating voltage | 16 V |
| Power consumption (max) | 5 W |
| Current | 0.33 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Storage relative humidity (H-H) | 10 - 90 % |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 200 x 120 x 30 mm |
| Receiver weight | 600 g |
| Packaging data | |
| Package dimensions (WxDxH) | 280 x 200 x 70 mm |
| Package weight | 1000 g |
| Packaging content | |
| Manual | Y |
| Technical details | |
| Compliance certificates | RoHS |

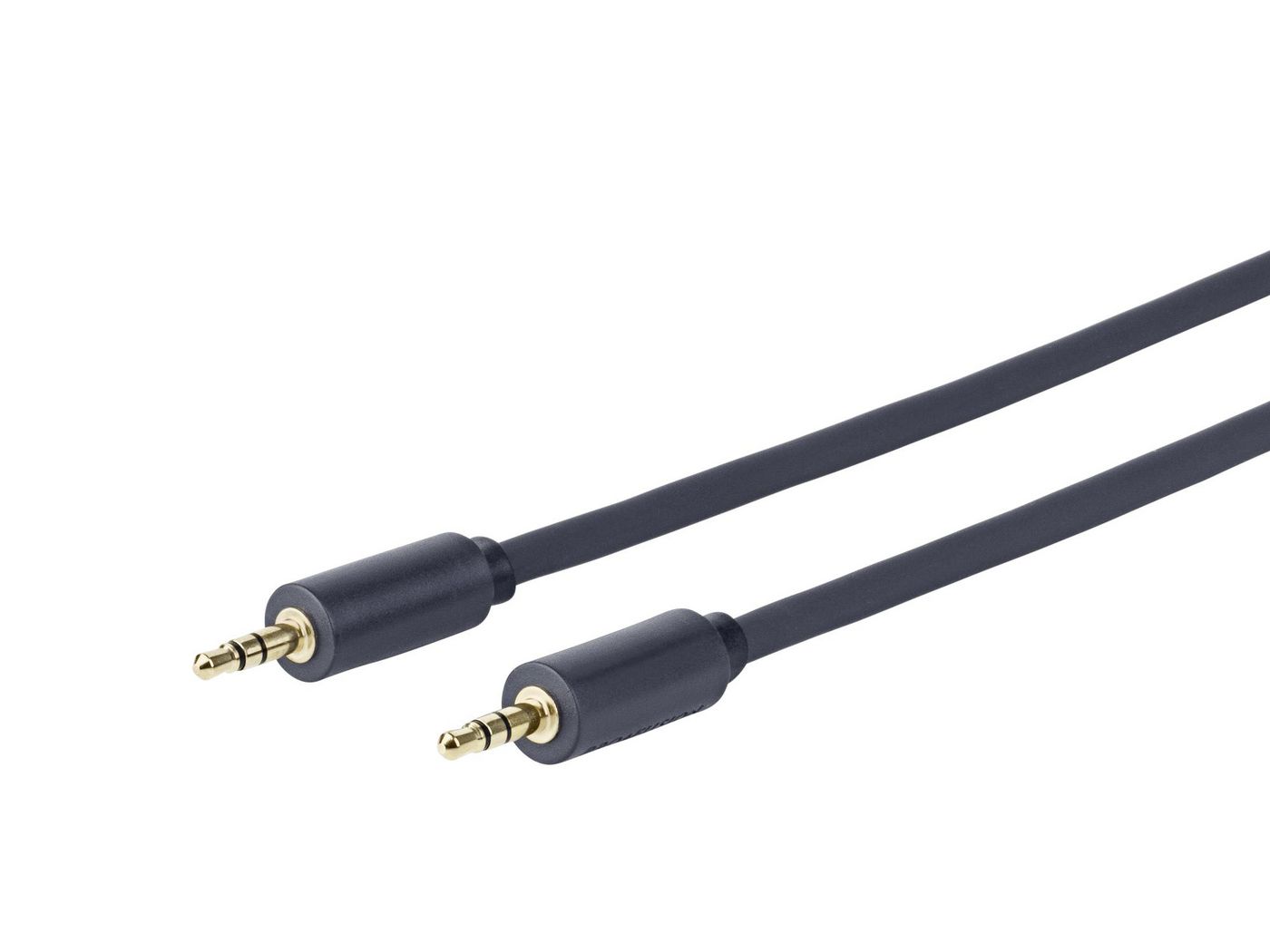

3.5MM CABLE LSZH M-M
