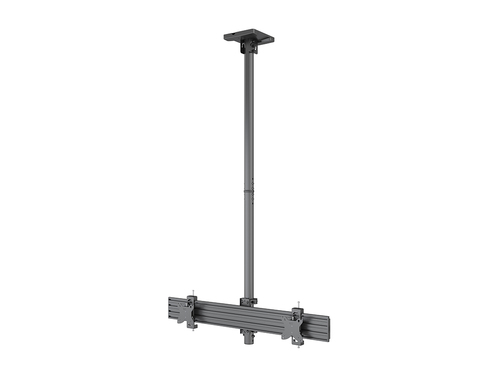

Multibrackets M Ceiling Mount Pro MBC2X2UGC HD
Multibrackets M Ceiling Mount Pro MBC2X2UGC HD, 120 kg, 190.5 cm (75"), 2.54 m (100"), 100 x 100 mm, 800 x 400 mm, 700 - 3300 mm
Availability:: Arriving soon
Multibrackets Pro Series M Ceiling Mount Pro MBC2X2UGC HD is our innovative - ready to be installed Single-Display Ceiling Mount.The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC2X2UGC HD is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.Keep your displays in balanceThe MBC2X2UGC HD is a strong, innovative ceiling mount that hangs large displays up to 100" with the natural center of gravity to provide a stable, durable installation. The angled column aligns the center of gravity of the display with the mounting point to reduce stress on the coupler joint and to prevent the column from appearing like it is angled rather than hanging straight down. With the Pro Series modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
| Mounting | |
|---|---|
| Maximum weight capacity | 120 kg |
| Minimum screen size | 75 " |
| Number of displays supported | 4 |
| Maximum weight capacity (per display) | 30 kg |
| Maximum screen size | 100 " |
| Mounting type | Ceiling |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 200,300 x 300,400 x 400,600 x 400,800 x 400 mm |
| Ergonomics | |
| Height adjustment | Y |
| Height adjustment type | Manual |
| Height adjustment range | 700 - 3300 mm |
| Cable management | Y |
| Design | |
| Product colour | Black |
| Housing material | Aluminium,Plastic,Steel |
| Weight & dimensions | |
| Weight | 56760 g |
| Aluminium content weight | 18500 g |
| Steel content weight | 56741.5 g |
| Other metals content weight | 0 g |
| Packaging data | |
| Package weight | 60000 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Y |
| Technical details | |
| Easy to install | Y |
| Orientation | Landscape/Portrait |
| Paper/cardboard packaging weight | 3200 g |
| Metal packaging weight | 0 g |
| Plastic packaging weight | 40 g |
