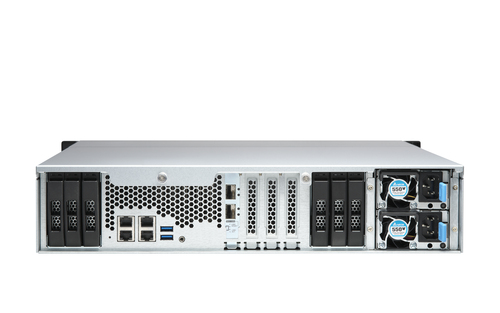

QNAP TS-832PXU-RP NAS Rack (2U) Annapurna Labs AL324 4 GB DDR4 0 TB QNAP Turbo System Black
(0 review)Add your review
€1201,72

QNAP TS-832PXU-RP, NAS, Rack (2U), Annapurna Labs, AL324, 4 GB, DDR4

Availability: Arriving Soon
EAN:4713213518144Categories:Servers & StorageTags:

With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.Higher performance x faster throughputThe TS-832PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.Upgrade your network to increase team efficiencyQNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.Boost NAS performance with SSDsAs SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.Balance performance and capacityBoost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.Extend SSD lifespanSSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.Multi-point file backup, access and syncHBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.Easily find and automatically organize files and photosThe TS-832PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.File searchQsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.Photo managementQuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.Auto archivingQfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.Secure Google™ Workspace and Microsoft 365® backupThe convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.Low Latency Access to Cloud Data with Cloud Storage GatewaysBy deploying cloud storage gateways and enabling local caching on the TS-832PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.HybridMount File-Based Cloud GatewayFlexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.VJBOD Cloud Block-Based Cloud GatewayVJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.Flexibly expand storage capacity whenever neededThe storage capacity of the TS-832PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU-RP can also be used to expand the storage space of other QNAP NAS.PCIe expandability for greater application potentialThe TS-832PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.Network AdapterAdd additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.QM2 CardAdd M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.USB CardAdd QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.Redundant power for dependable servicesThe TS-832PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.

Storage
Storage drive capacity0 GB
Storage drive interfaceSerial ATA III
Supported storage drive interfacesSerial ATA II,Serial ATA III
Storage drive sizes supported2.5,3.5 "
RAID supportY
RAID levels0,1,5,6,10,JBOD
Online RAID migrationY
Online RAID expansionY
RAID rebuildY
Hot-swap drive baysY
Supported file systemsFAT32,HFS+,NTFS,ext3,ext4
Storage drives installedN
Total installed storage capacity0 TB
Number of storage drives supported8
Installed storage drive typeN
Supported storage drive typesHDD & SSD
Bad block scanY
Processor
Processor manufacturerAnnapurna Labs
Processor familyAnnapurna Labs
Processor modelAL324
Processor frequency1.7 GHz
Processor cores4
Memory
Internal memory4 GB
Internal memory typeDDR4
Maximum RAM supported16 GB
Memory slots1
Memory form factorUDIMM
Flash memory512 MB
Network
Ethernet LANY
Ethernet LAN data rates100,1000,2500,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
DHCP clientY
DHCP serverY
Jumbo frames supportY
iSCSI supportY
Wake-on-LAN readyY
Supported network protocolsPPTP, L2TP/IPSec, OpenVPN, QBelt
Link aggregationY
Load balancing systemY
WLAN adapter supportedY
Ports & interfaces
USB portY
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity2
Fiber optic connectorSFP+
Ethernet LAN (RJ-45) ports2
Concurrent connections700
Design
Chassis typeRack (2U)
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter70 mm
LED indicatorsHDD,LAN,Status
Performance
TypeNAS
Device classSmall & Medium Business
Backup functionY
Backup featuresCloud,iSCSI LUN
BuzzerY
Multilingual supportY
Noise level30.6 dB
SnapshotY
Web-based managementY
Security algorithms256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
Access Control List (ACL)Y
Reset buttonY
On/off switchY
Built-in FTP serverY
Browser supportedMozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
System logY
Hot spareY
S.M.A.R.T. supportY
Share folderCIFS/SMB
Universal Plug and Play (UPnP)Y
USB copy functionY
Software
Operating system installedQNAP Turbo System
Operating system version5.0.0
Windows operating systems supportedWindows 10,Windows 7,Windows 8
Linux operating systems supportedY
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Power
Power supply locationBuilt-in
Power supply unit (PSU) capacity250 W
Number of power supply units2
Power consumption (typical)69.191 W
AC input voltage100 - 240 V
Fan voltage12 V
Weight & dimensions
Width482 mm
Depth534 mm
Height89 mm
Weight10940 g
Packaging content
Cables includedAC,LAN (RJ-45)
Number of screws56
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95 %
Logistics data
Harmonized System (HS) code84714100
