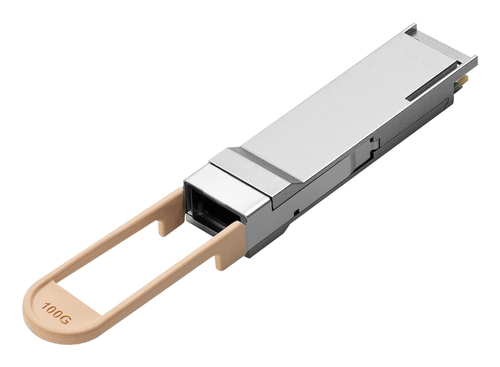

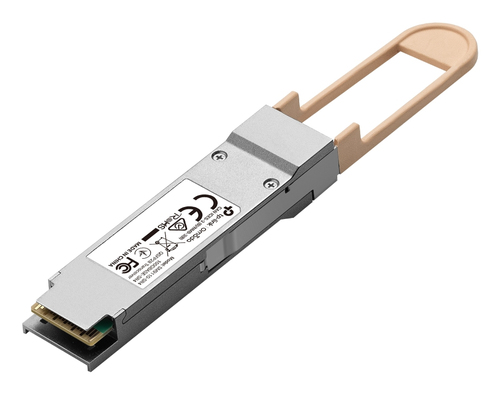

TP-Link Omada SM9110-SR4 V1 QSFP28 transceivermodul eCPRI 100 Gigabit Ethernet CPRI
TP-Link Omada SM9110-SR4, Fiber optic, 100000 Mbit/s, QSFP28, MPO-12, MTP, 50/125 µm, SR4
Availability: In Stock
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
SFP transceiver type: Fiber optic Maximum data transfer rate: 100000 Interface type: QSFP28 Single-mode fiber (SMF) supported: N Multi-mode fiber (MMF) supported: Y Fiber optic connector: MPO-12,MTP Fiber cable diameters supported (core/cladding): 50/125 SFP transceiver standard: SR4 Maximum transfer distance: 150 Wavelength: 850 Tx power (min): -8.4 Tx power (max): 2.4 Ethernet interface type: 40 Gigabit Ethernet,100 Gigabit Ethernet Networking standards: IEEE 802.3ba,IEEE 802.3bm Fiber ethernet cabling technology: 40GBASE,100GBASE Digital Diagnostics Monitoring (DDM): Y Product colour: Metallic Form factor: QSFP28 Plug and Play: Y Hot-swap: Y Input voltage: 3.3 Compliance certificates: CE,Federal Communications Commission (FCC),RoHS Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP Minimum operating temperature: 0 Maximum operating temperature: 70 Operating temperature (T-T): 0 - 70 Storage temperature (T-T): -40 - 85 Operating relative humidity (H-H): 0 - 85 Storage relative humidity (H-H): 0 - 85 Width: 124 Depth: 18.35 Height: 11.7 Quantity per pack: 1 User guide: Y Country of origin: China
