GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug
€35,79
GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug, 550 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W
Availability: In Stock
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Power | |
|---|---|
| Total power | 550 |
| AC input voltage | 155-240 |
| AC input frequency | 50/60 |
| Input current | 6.3 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 |
| Combined power (+12V) | 549.6 |
| Combined power (+5V) | 100 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 45.8 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Hold time | 16 |
| Efficiency | 90 |
| Power Good signal delay range | 100 - 150 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 600 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Y |
| ATX power connector (20+4 pin) | Y |
| Floppy drive power connector | 2 |
| Floppy disk drive connector | Y |
| PCI Express connector | Y |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Silver |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 |
| Design | |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Fan location | Top |
| On/off switch | Y |
| Weight & dimensions | |
| Width | 140 |
| Depth | 150 |
| Height | 86 |
| Weight | 1950 |
| Packaging data | |
| Package width | 254 |
| Package depth | 206 |
| Package height | 117 |
| Package weight | 2110 |
| Package type | Box |
| Logistics data | |
| Warranty period | 3 |

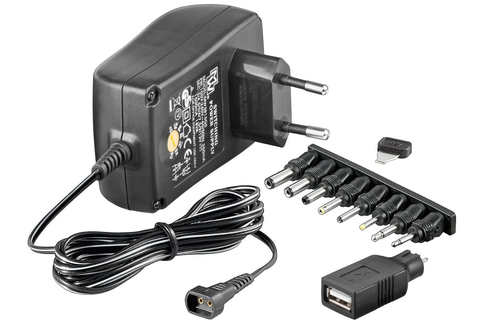

3-12V Univ. Power Supply
