Neomounts LEVEL-750 Monteringssæt Tv 43-75
Neomounts WL35-750BL14 Heavy duty wall mount 42-75" - tilt - lockable - fast installation - TÜV, 190.5 cm (75"), 100 x 100 mm, 400 x 400 mm, -15 - 15°, Steel, Black
Availability:: Arriving soon

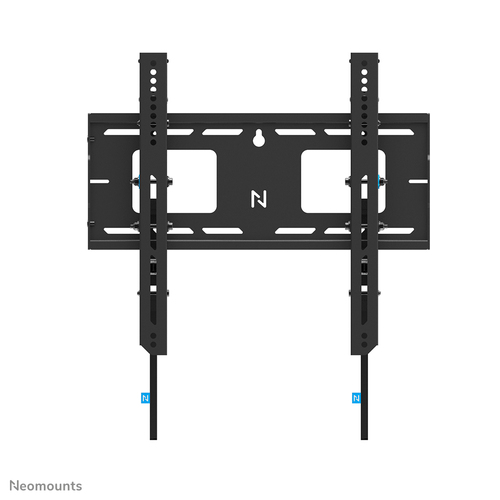

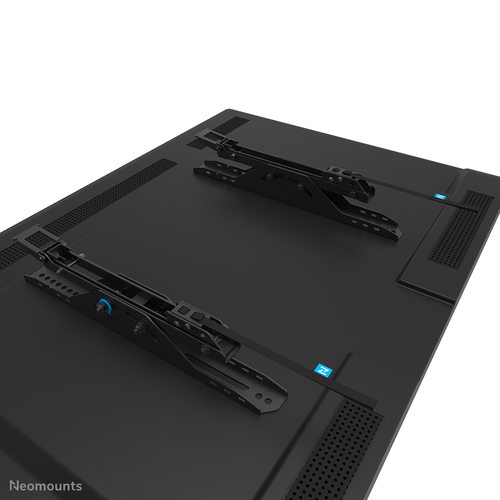

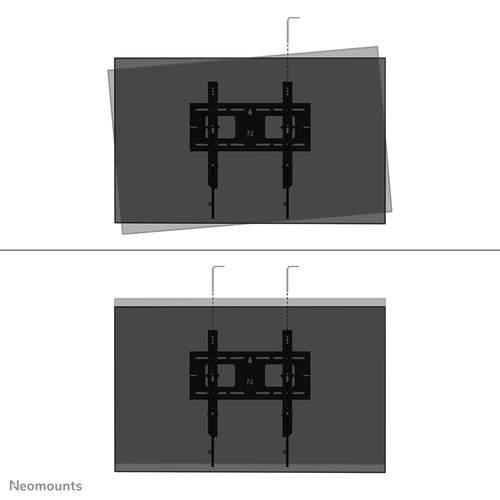

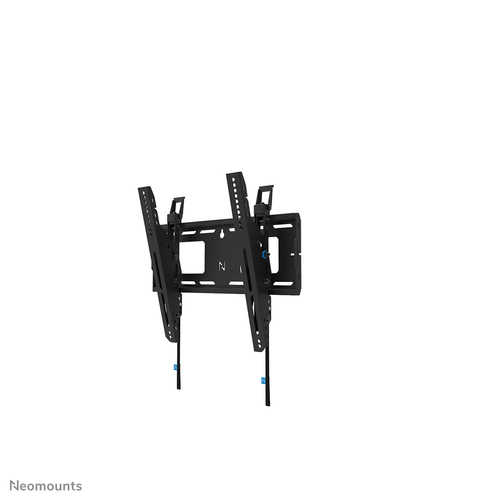

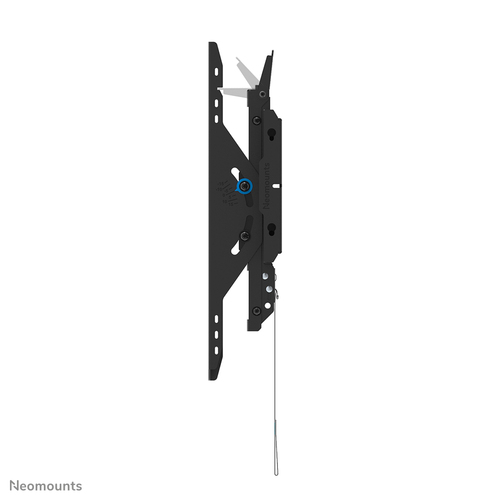

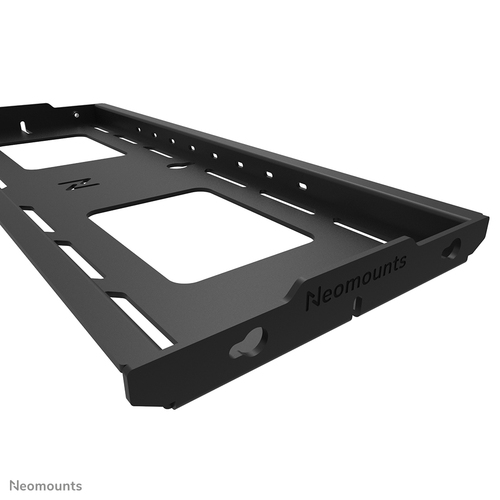

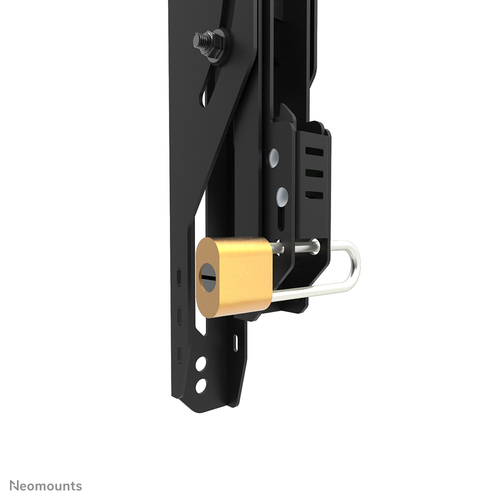

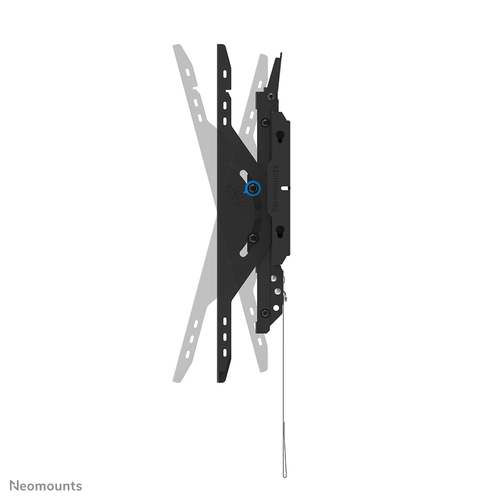

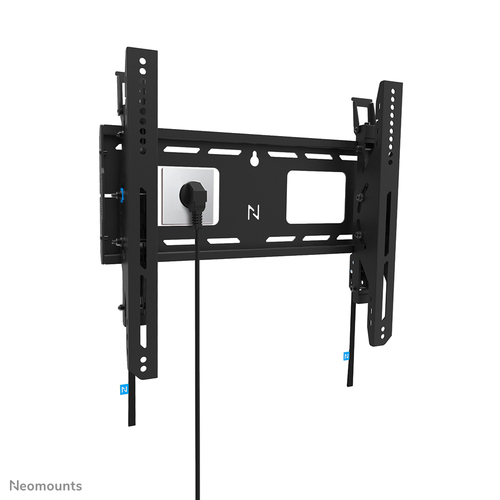

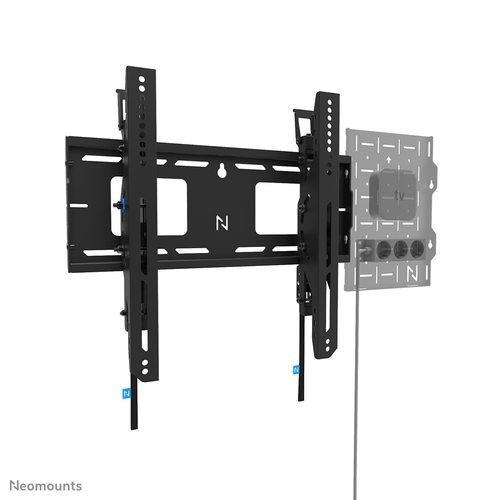

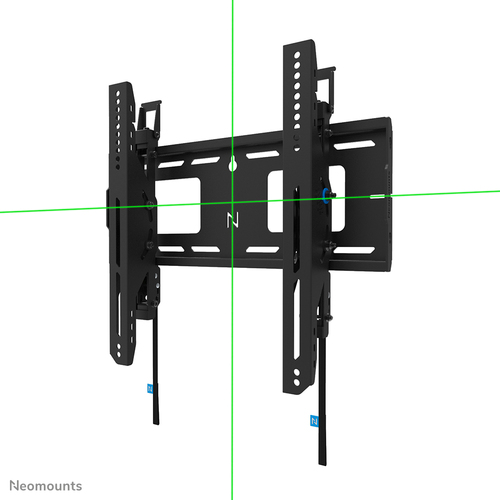

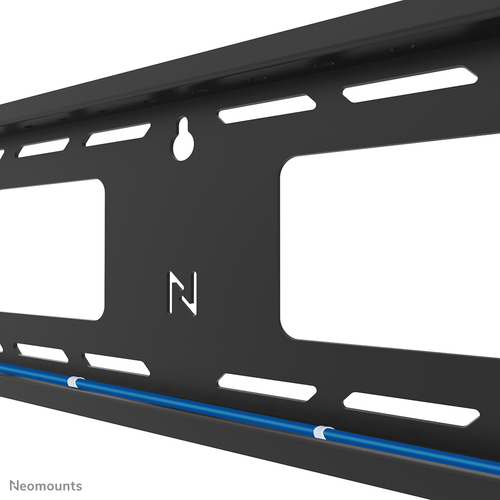

The Neomounts WL35-750BL14 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 75" with a maximum capacity of 100 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it. The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.The WL35-750BL14 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security. For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

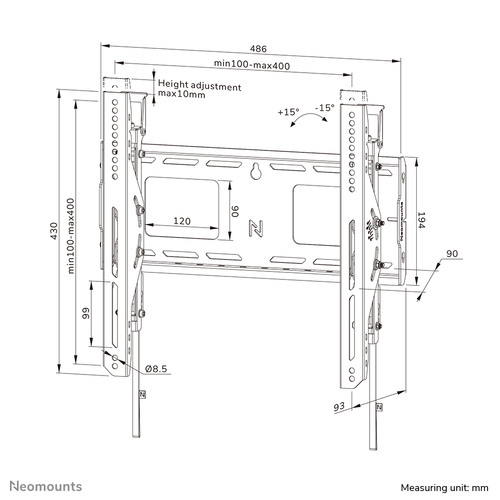

Maximum weight capacity: 100 Minimum screen size: 42 Number of displays supported: 1 Maximum weight capacity (per display): 100 Maximum screen size: 75 Minimum VESA mount: 100 x 100 Maximum VESA mount: 400 x 400 Panel mounting interface: 100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400 Mounting type: Wall Height adjustment: Y Height adjustment range: 0 - 10 Tilt adjustment: Y Tilt angle range: -15 - 15 Cable management: Y Distance to the wall (max): 93 Product colour: Black Housing material: Steel Country of origin: China Lockable: Padlock not included Width: 486 Depth: 93 Depth (max): 93 Height: 430 Weight: 4400 Package width: 528 Package depth: 102 Package height: 209 Package weight: 5600 Master (outer) case width: 546 Master (outer) case length: 227 Master (outer) case height: 324 Master (outer) case gross weight: 17400 Master (outer) case net weight: 13200 Products per master (outer) case: 3 Harmonized System (HS) code: 7326909890 Products per pallet (EU): 78
