ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 (Socket V1) ATX
ASUS PRIME B860-PLUS-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 256 GB, DIMM
Availability:: Arriving soon
Prime B860-PLUS-CSMASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | non-ECC |
| Supported memory clock speed (max) | 8666 |
| Maximum internal memory | 256 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Y |
| EPS power connector (8-pin) | Y |
| Number of COM connectors | 1 |
| TPM connector | Y |
| Thunderbolt headers | 1 |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Y |
| Microphone in | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | N |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Packaging data | |
| Package width | 377 |
| Package depth | 372 |
| Package height | 302 |
| Package weight | 1558 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |
| Height | 49 |
| Other features | |
| Weight | 896 |

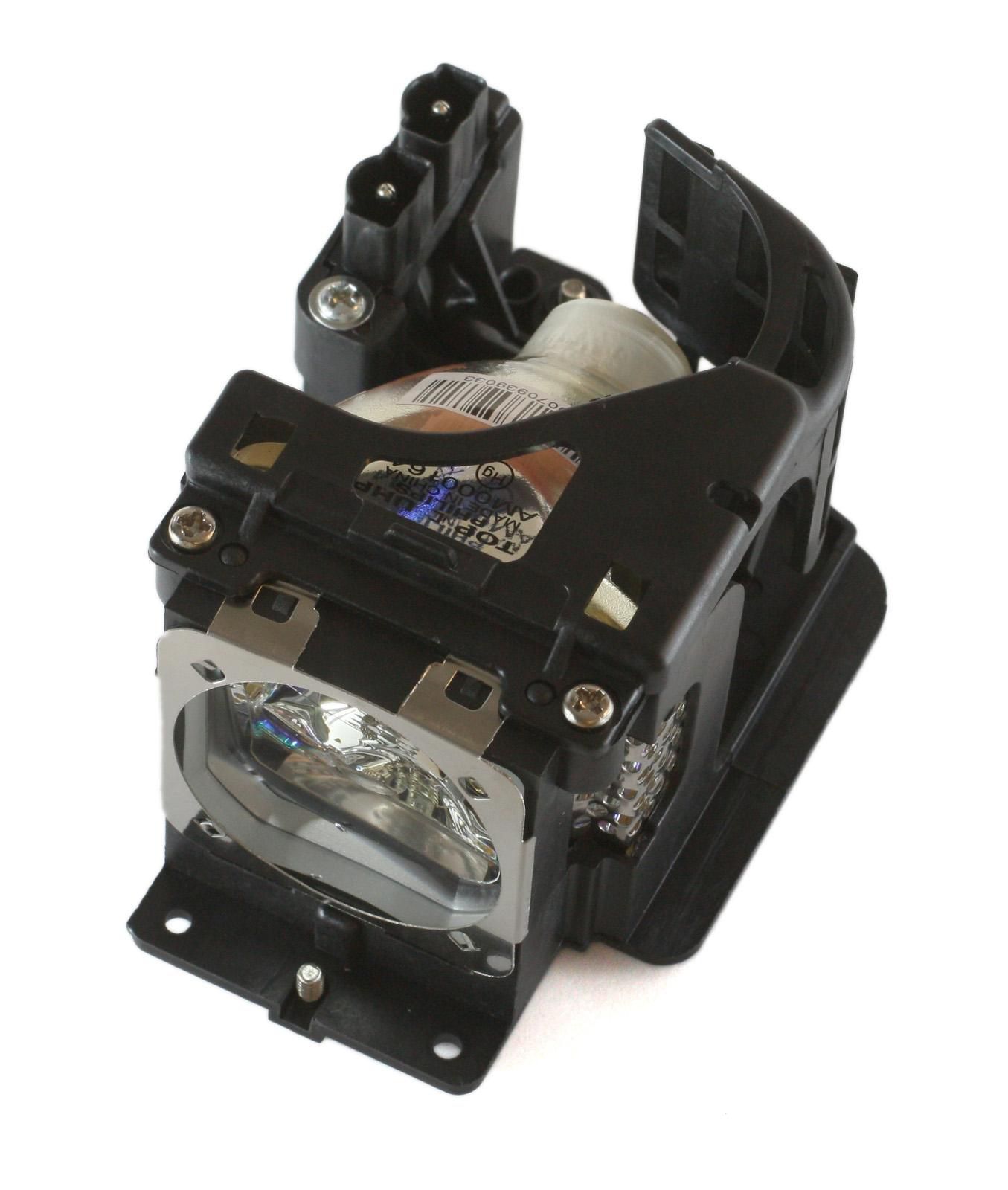

Projector Lamp for Sanyo 200
