LevelOne AX1800 Dual Band Wi-Fi 6 In-Wall PoE Wireless Access Point
LevelOne AX1800 Dual Band Wi-Fi 6 In-Wall PoE Wireless Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, WPA2-AES, WPA3, 10,100,1000 Mbit/s
Availability: In Stock
The LevelOne new access point, the WAP-8231, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point - just like a power outlet - is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 1800 Mbps. The WAP-8231 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2010 / WAC-2013 WLAN controller. LevelOne WAP-8231 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| 6 GHz | N |
| Maximum data transfer rate | 1800 |
| Maximum data transfer rate (2.4 GHz) | 574 |
| Maximum data transfer rate (5 GHz) | 1201 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.412 -2.484, 5.18 - 5.825 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | AP Mode |
| Security | |
| Security algorithms | WPA2-AES,WPA3 |
| Number of SSID supported | 8 |
| Management features | |
| Web-based management | Y |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) | Y |
| Power consumption (typical) | 14 |
| Design | |
| Placement | In-wall |
| Product colour | White |
| LED indicators | Wi-Fi |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 3 |
| Performance | |
| Flash memory | 16 |
| Internal memory | 128 |
| Technical details | |
| Master (outer) cases per pallet (air) | 10 |
| Pallet gross length | 800 |
| Pallet gross width | 1200 |
| Pallet height (air) | 1890 |
| Certificates | |
| Compliance certificates | CE,RoHS,UKCA |
| Weight & dimensions | |
| Width | 87 |
| Depth | 86 |
| Height | 31.5 |
| Weight | 138 |
| Packaging data | |
| Package width | 120 |
| Package depth | 110 |
| Package height | 65 |
| Package weight | 240 |
| Package type | Box |
| Packaging content | |
| Mounting kit | Y |
| Interface adapter included | USB Type-C male - RJ-45 female |
| Quick start guide | Y |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 10 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Sustainability | |
| Sustainability compliance | Y |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 515 |
| Master (outer) case length | 348 |
| Master (outer) case height | 580 |
| Master (outer) case gross weight | 25000 |
| Products per master (outer) case | 100 |

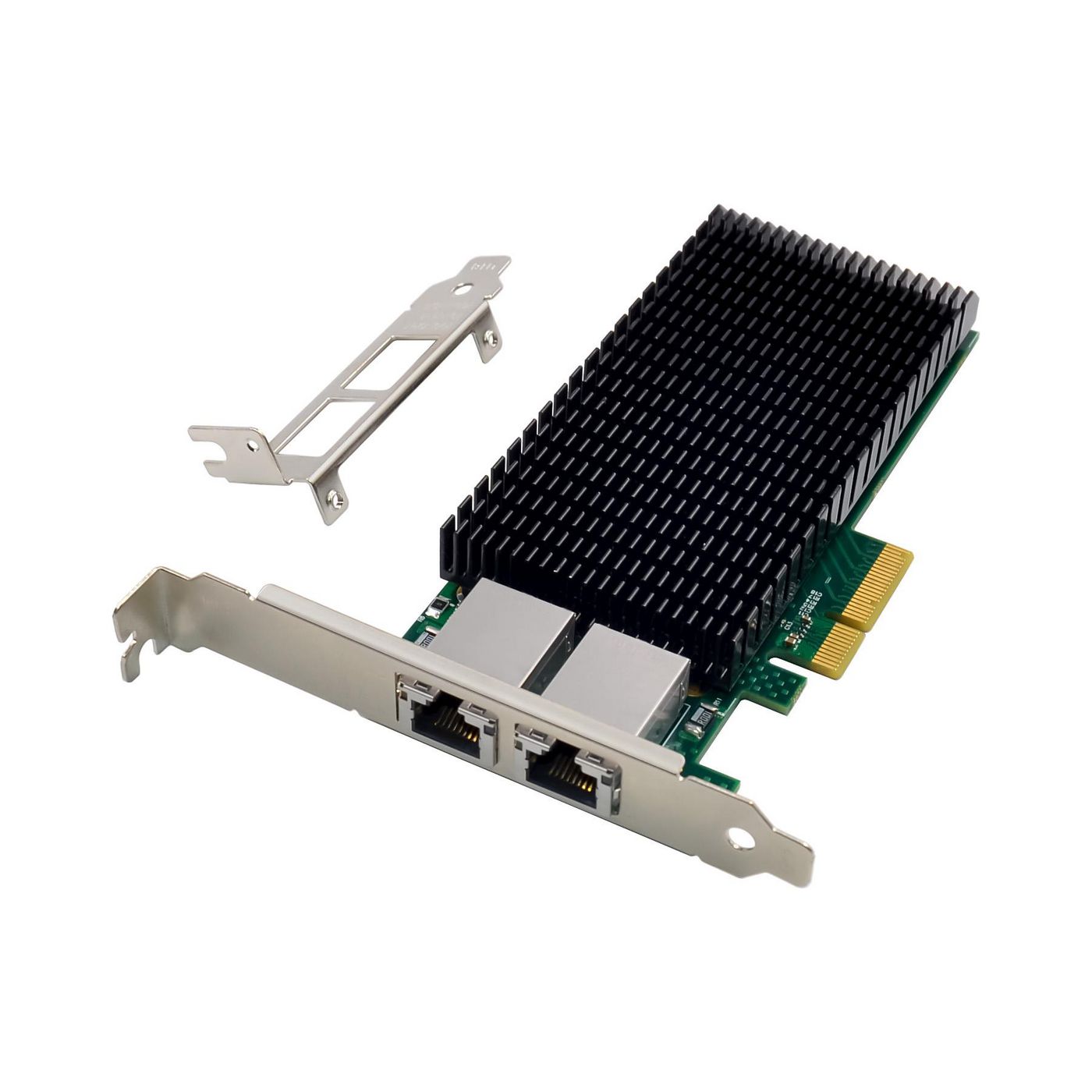

Network Card PCIe x4 X540-T2
ISO Safety Sign - Warning
ISO Safety Sign - Fire alarm

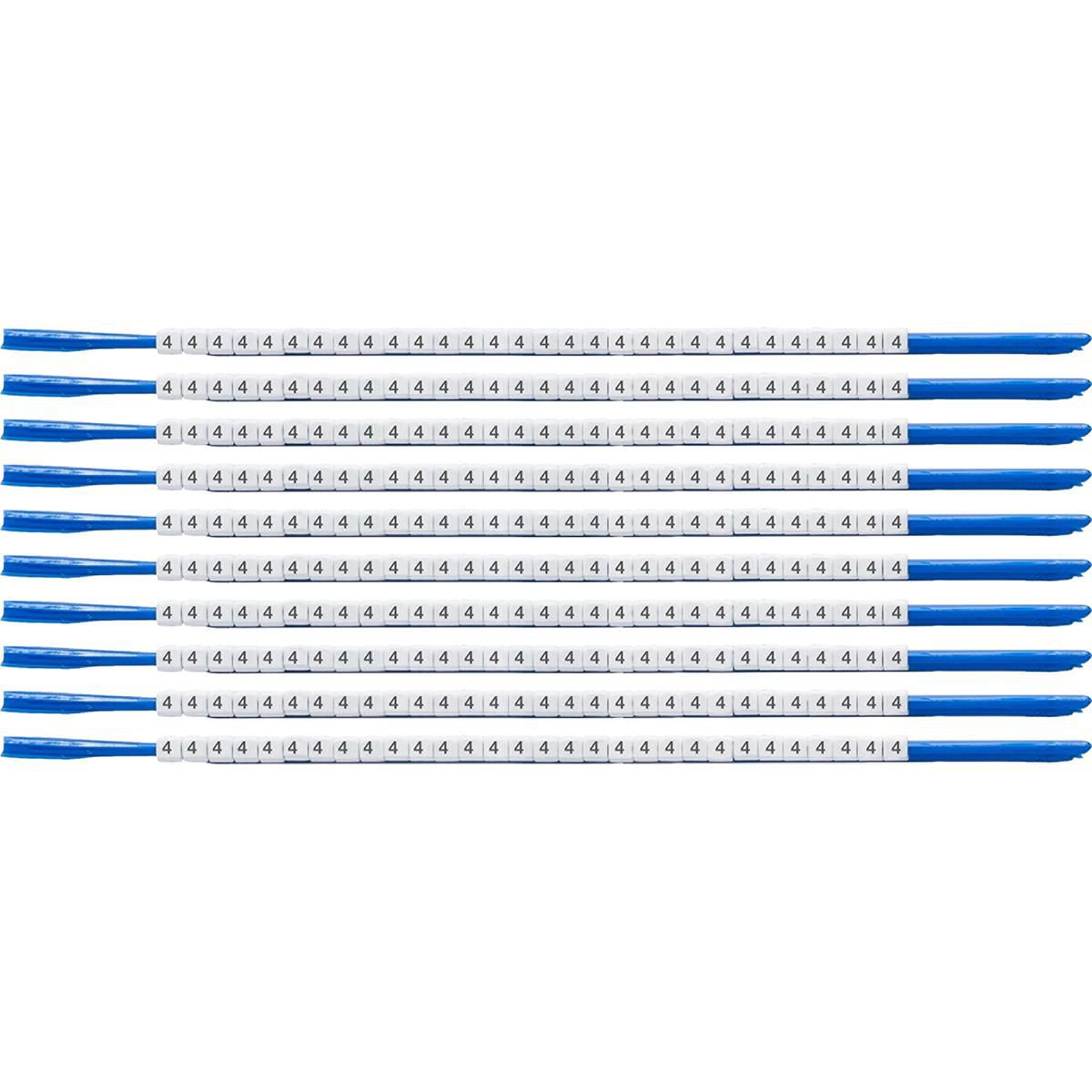

Clip Sleeve Wire Markers
Fiber Patch Cable -

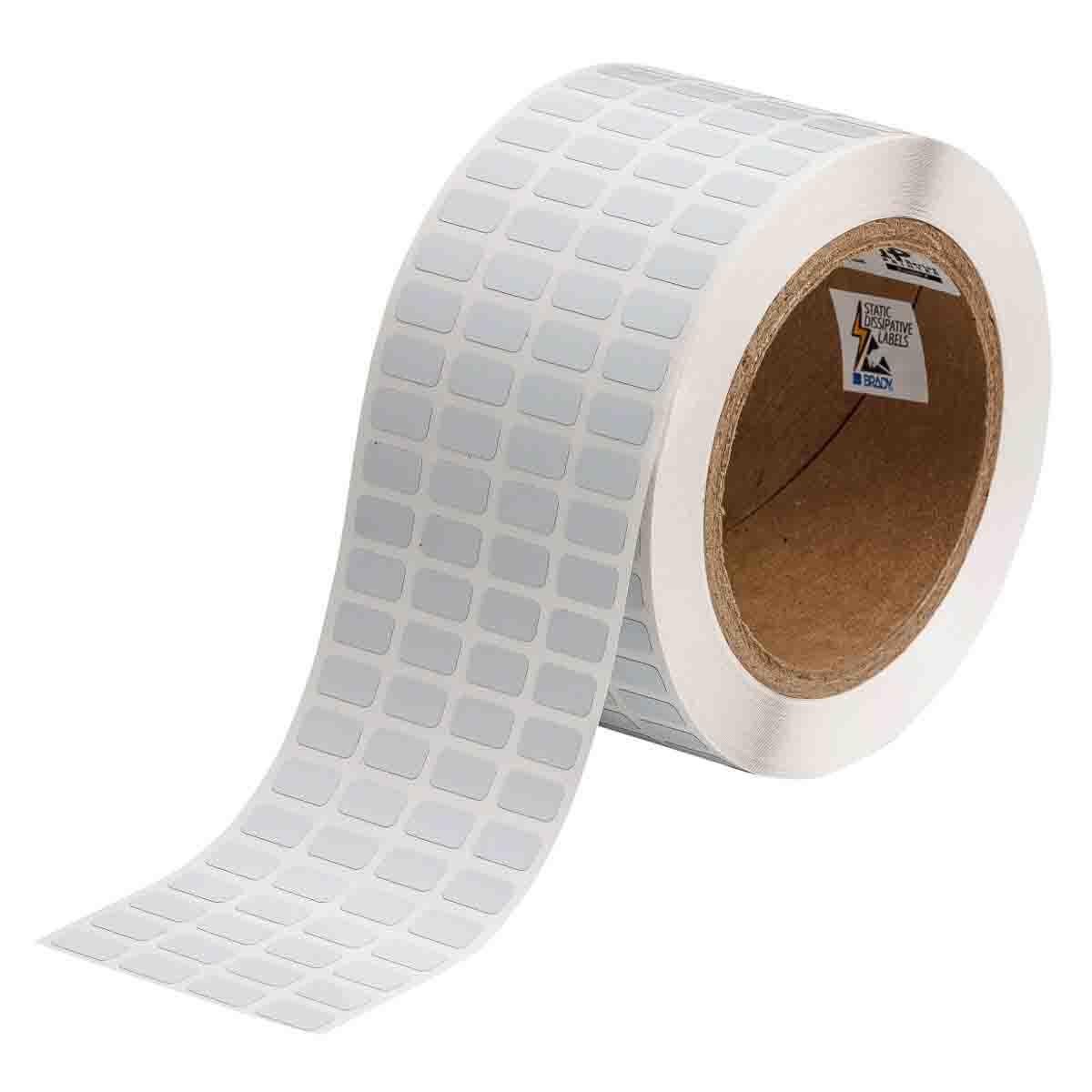

Thermal Transfer Printable
