Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait
Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait, 2.92 m (115"), 100 x 100 mm, 1500 x 900 mm, 6°, Steel, Black
Availability:: Arriving soon
The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation. The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included). The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
| Mounting | |
|---|---|
| Maximum weight capacity | 160 kg |
| Minimum screen size | 55 " |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 160 kg |
| Maximum screen size | 115 " |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 1500 x 900 mm |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 mm |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Y |
| Height adjustment range | 0 - 20 mm |
| Angle of rotation | 6 ° |
| Pivot angle | -3 - 3 ° |
| Distance to the wall (max) | 67 mm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Accepts padlock | Y |
| Technical details | |
| Country of origin | China |
| Package net weight | 11700 g |
| Orientation | Landscape/Portrait |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 1600 mm |
| Depth | 67 mm |
| Depth (max) | 67 mm |
| Height | 936 mm |
| Weight | 10150 g |
| Packaging data | |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 11700 g |
| Logistics data | |
| Master (outer) case width | 211 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case height | 938 mm |
| Master (outer) case gross weight | 23900 g |
| Master (outer) case net weight | 20300 g |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 30 pc(s) |
| Other features | |
| Width adjustment range | 893 - 1600 mm |

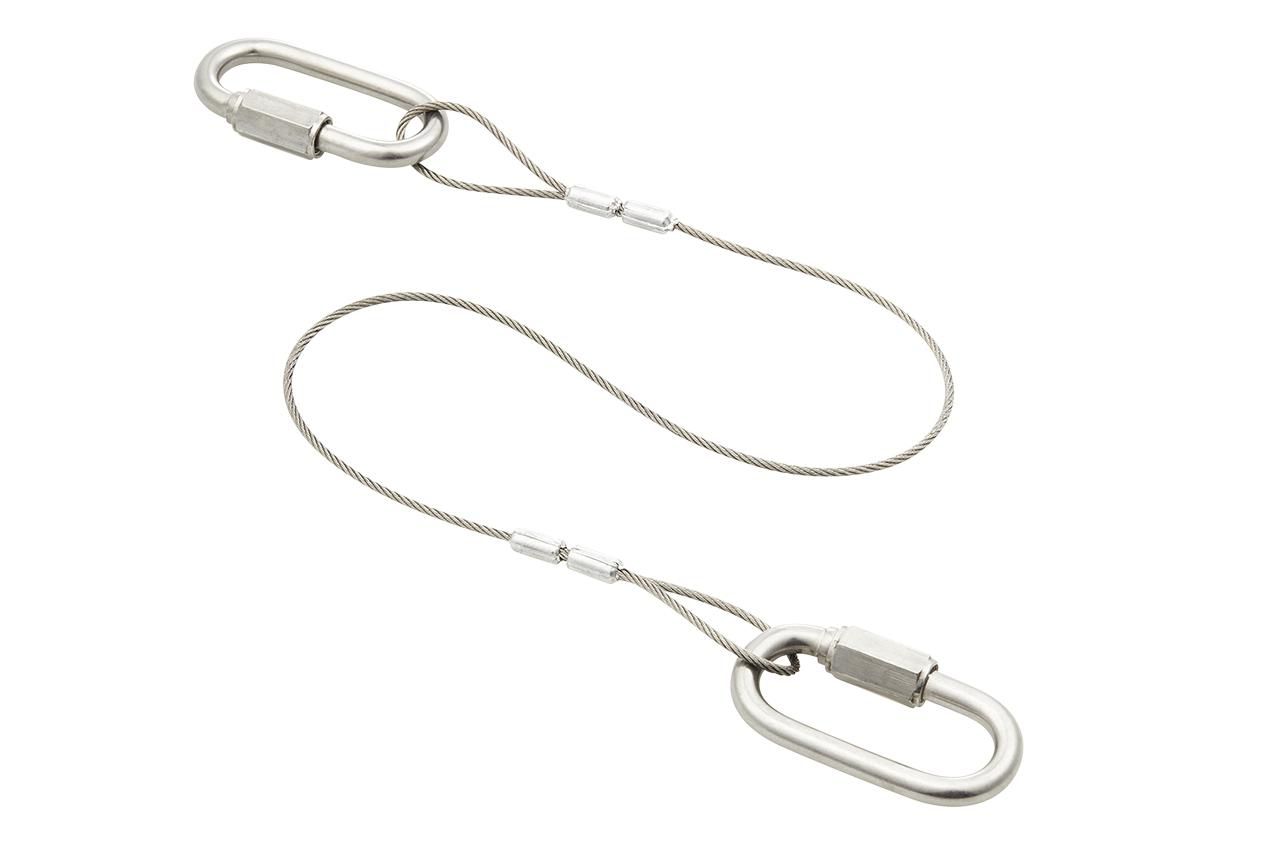

ELPWR01 - Safety Wire

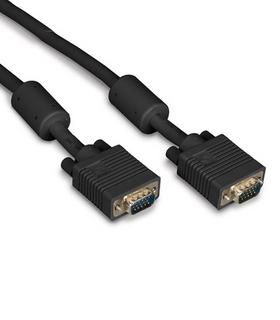

VGA VIDEO CABLE W/ FERRITE
