ATEN 8-Port USB - HDMI KVM Switch with USB Peripheral port
ATEN 8-Port USB - HDMI KVM Switch with USB Peripheral port, 1920 x 1200 pixels, WUXGA, 8.56 W, Black
Availability:: In stock
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.1x CS1798 8-Port USB HDMI KVM Switch2x 2L-7D02UH Custom USB HDMI KVM Cable Sets1x LIN5-04A2-J11G Firmware Upgrade Cable1x LIN2-418K-E12G Power cord1x 0AD8-8005-40MG Power Adaptor1x Foot Pad Set (4 pcs)&x Rackmounting Kit1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone,3.5mm mic,HDMI,USB A |
| Console USB ports quantity | 2 |
| USB hub | Y |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A,USB Type-B |
| Audio connections | Y |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| DC-in jack | Y |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Display | |
| Built-in display | N |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 8.56 W |
| System requirements | |
| Windows operating systems supported | Y |
| Linux operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Storage relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 257.2 mm |
| Height | 440 mm |
| Weight | 4633 g |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5223 g |
| Packaging content | |
| Quick installation guide | Y |
| Manual | Y |
| Logistics data | |
| Master (outer) case net weight | 13899 g |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 16680 g |
| Products per master (outer) case | 3 pc(s) |
R&S UF-1XX-3Y Full License (3
ISO Safety Sign - No access
Powercord C14 IEC Lock+ Dual

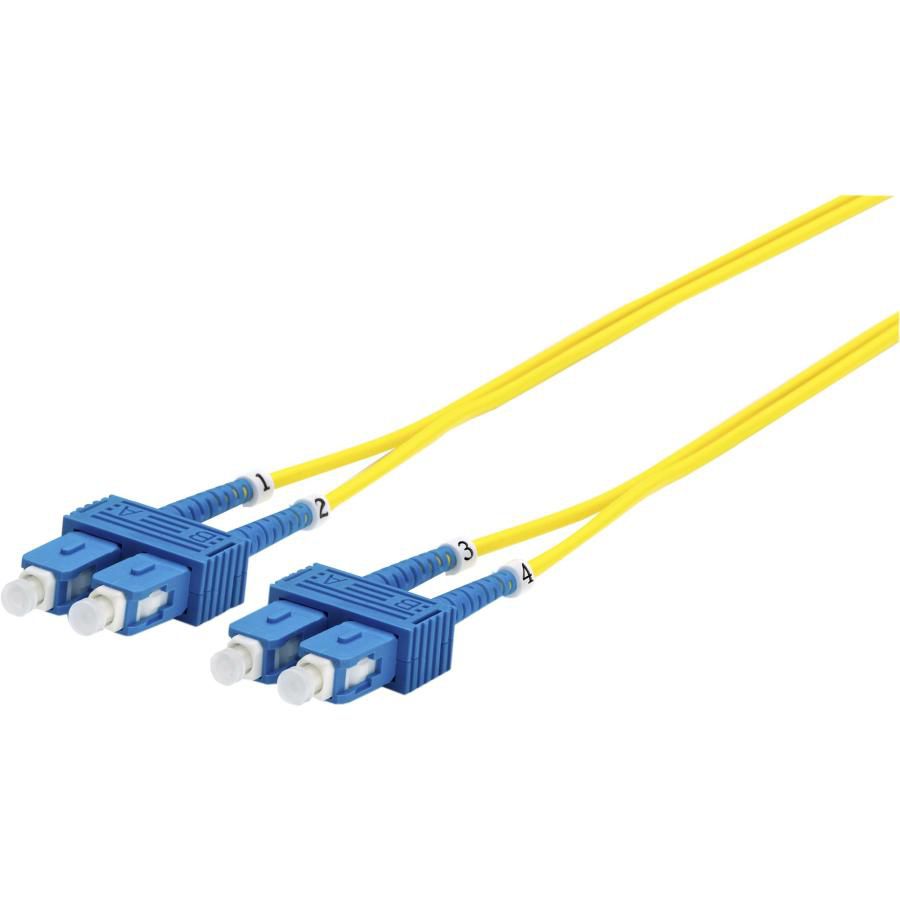

Fiber Patch Cable -
