ATEN 16-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support
ATEN 16-Port 5-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support, 1920 x 1200 pixels, Ethernet LAN, WUXGA, Rack mounting, 1U, Metallic
Availability: In Stock
ATEN's 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.1x KN4116VA KVM over IP Switch2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)2x LIN2-418K-E12G Power Cords1x Mounting Kit2x 0X12-0017-301G Lok-U-Plugs1x 0X12-0017-401G Lok-U-Plug Installation Tool1x Foot Pad Set (4 pcs.)1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D/VGA |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Console ports | DVI-D,RJ–45,USB A,VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub | Y |
| USB 2.0 Type-A hub ports quantity | 3 |
| USB connector type | Mini-USB B,USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Audio connections | Y |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 20 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security algorithms | FIPS 140-2 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| Design | |
| Rack mounting | Y |
| Rack capacity | 1U |
| Product colour | Metallic |
| Housing material | Metal |
| Cascadable | Y |
| LED indicators | Link,Power |
| Push button | Y |
| Hot keys | N |
| Display | |
| Built-in display | N |
| Power | |
| Power source | AC |
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 44 mm |
| Weight | 6630 g |
| Packaging data | |
| Package width | 521 mm |
| Package depth | 570 mm |
| Package height | 152 mm |
| Package weight | 7630 g |
| Packaging content | |
| Cables included | AC |
| Manual | Y |
| Rack mount kit | Y |
| Logistics data | |
| Master (outer) case net weight | 6630 g |
| Master (outer) case width | 506 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 7630 g |
| Products per master (outer) case | 1 pc(s) |
Identical numbers and letters
Roll form linerless Pipe
PTP 820 Act.Key - Edge-CET-
ISO Safety Sign - Warning
ISO Safety Sign - Fire alarm

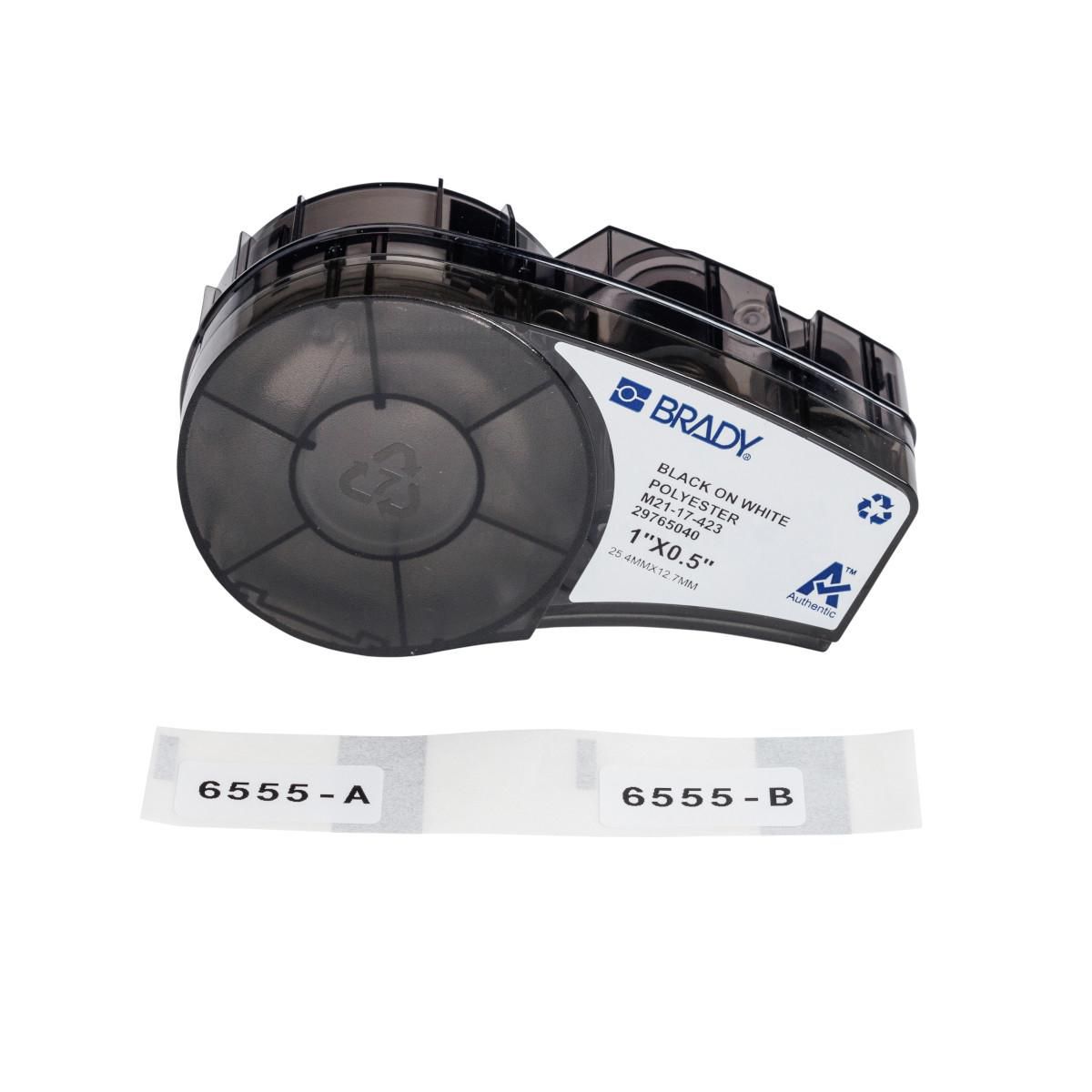

Polyester tape for M210 and
