ATEN 8-Port USB HDMI Dual Display Secure KVM
ATEN 8-Port USB HDMI Dual Display Secure KVM, 3840 x 2160 pixels, 4K Ultra HD, 5.9 W, Black
Availability: In Stock
ATEN PSS PP v3.0 Secure KVM Switch (CS1148H) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1148H) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).1x CS1148H 8-Port USB HDMI Dual Display Secure KVM Switch1x LIN2-418K-E12G Power Cord1x User Instructions
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 8 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| USB 2.0 Type-B ports quantity | 16 |
| Console ports | 3.5mm headphone,HDMI,USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-B |
| PS/2 ports quantity | 2 |
| Audio connections | Y |
| Headphone outputs | 8 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Design | |
| Rack mounting | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Push button | Y |
| Display | |
| Built-in display | N |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 5.9 W |
| System requirements | |
| Windows operating systems supported | Y |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 204.9 mm |
| Depth | 432.4 mm |
| Height | 65.5 mm |
| Weight | 3470 g |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 4225 g |
| Packaging content | |
| Cables included | AC |
| Quick installation guide | Y |
| Manual | Y |
| Logistics data | |
| Master (outer) case net weight | 10410 g |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 13600 g |
| Products per master (outer) case | 3 pc(s) |

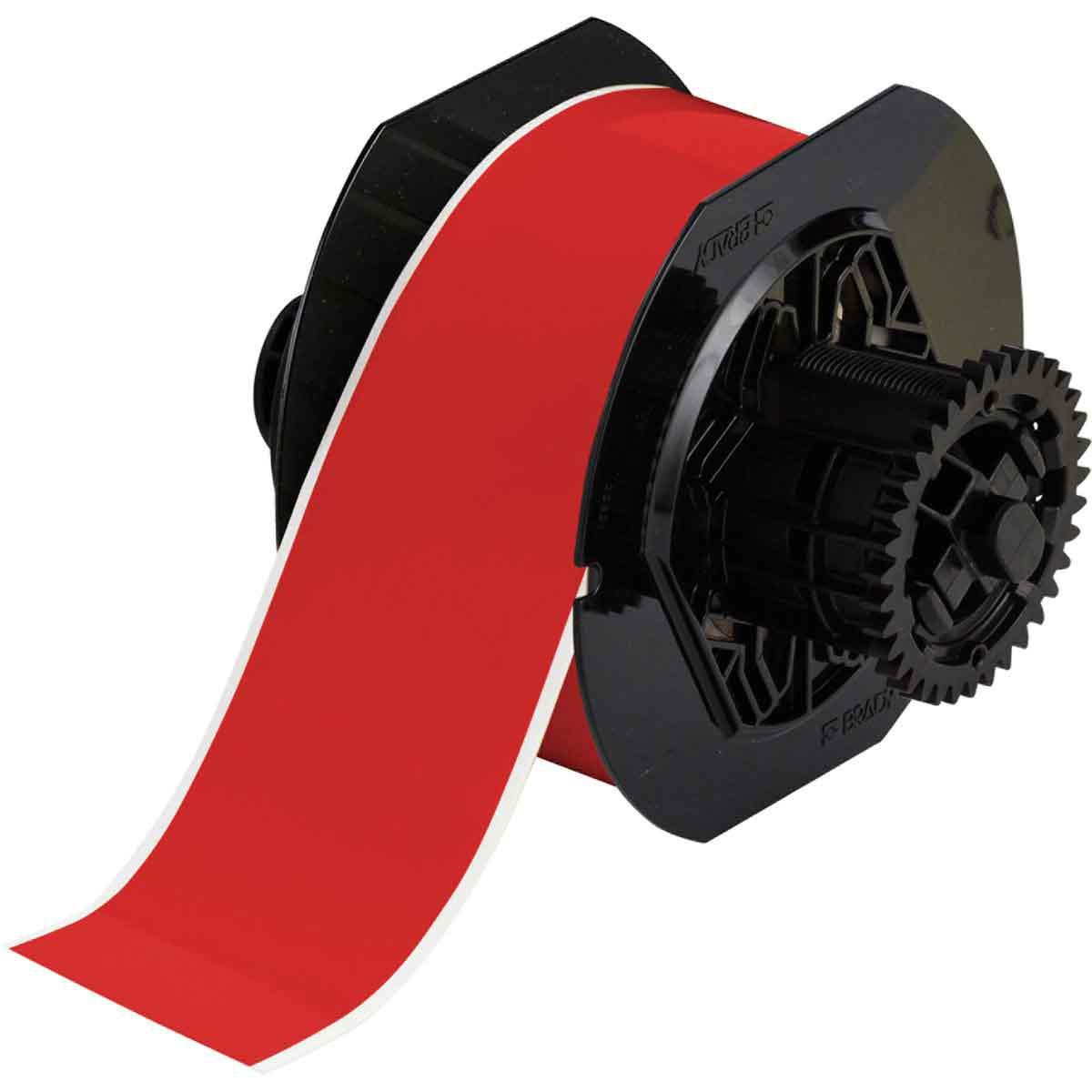

High Performance Polyester
ASME - Pipemarkers - Osmosis

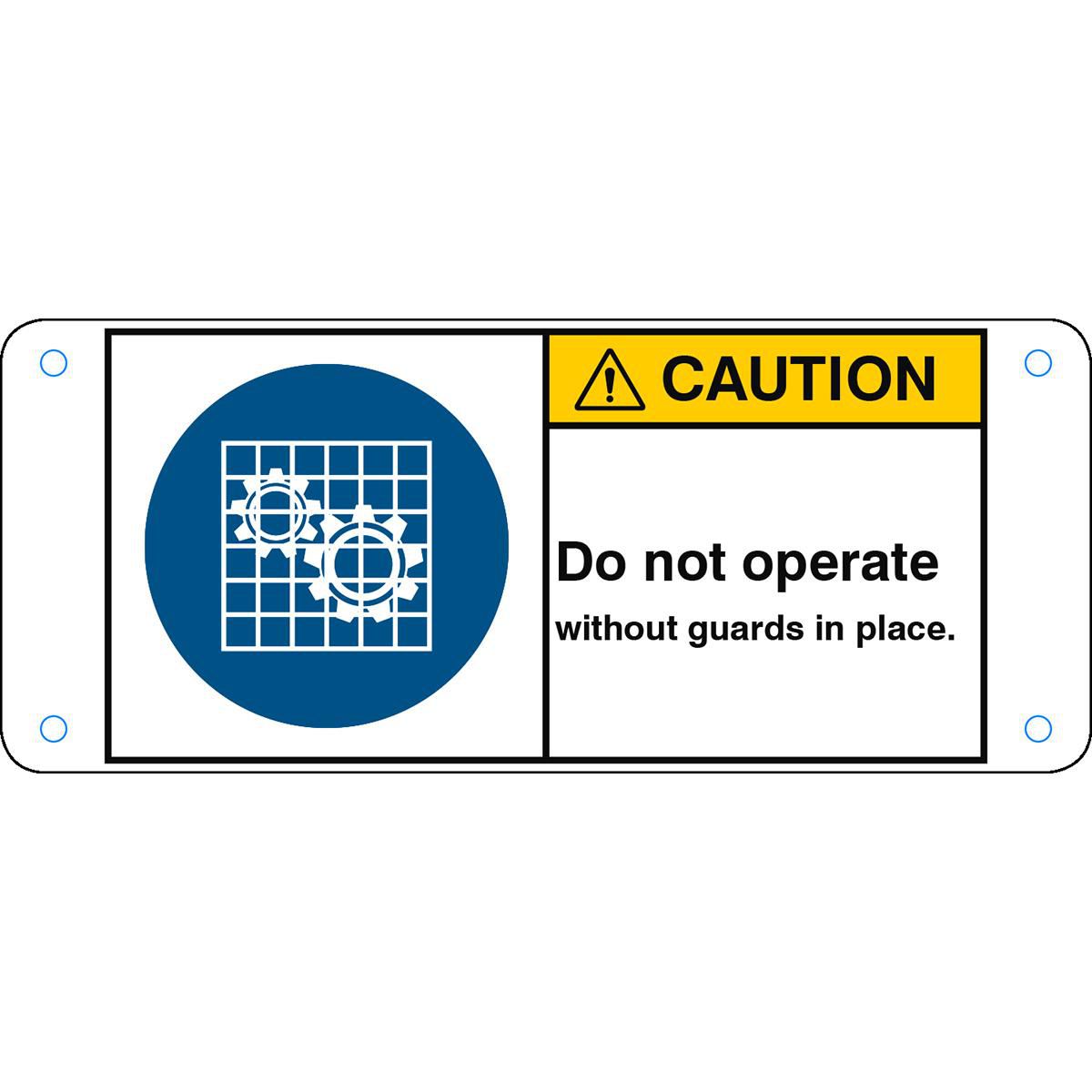

ISO Safety Sign - Do not
B-7643 cable tags for
Butterfly Valve Lockout -

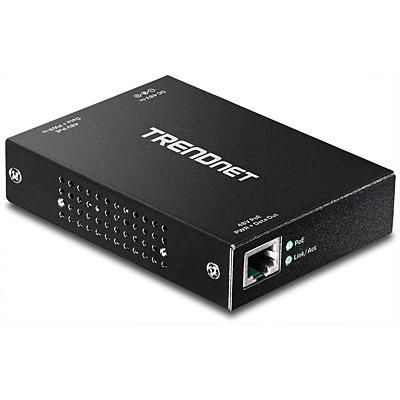

Gigabit PoE+ Repeater
