Omada 8-Port Gigabit L2+

€100,27

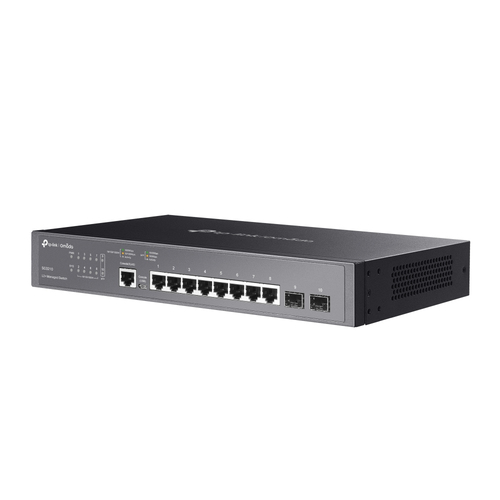

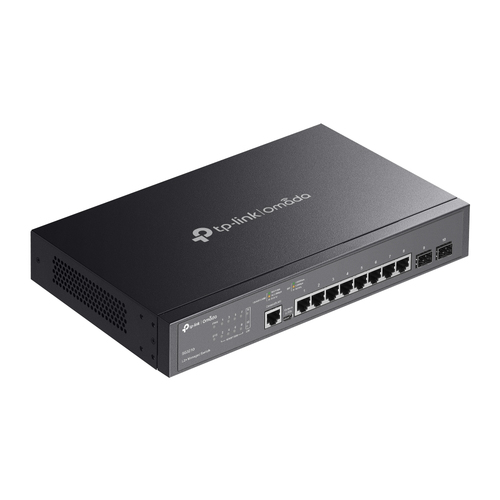

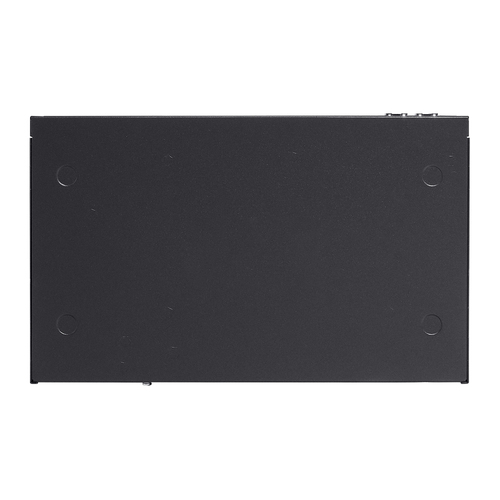

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Availability: Arriving Soon

Add to Cart

Add to wishlist

Compare

EAN:6935364006396Categories:NetworkingTags:

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like staticrouting, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-PortBinding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Switch type: Managed Switch layer: L2/L3 Quality of Service (QoS) support: Y Web-based management: Y Cloud-managed: Y ARP inspection: Y Configuring Location Settings (CLI): Y System event log: Y MIB support: Yes Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) SFP module slots quantity: 2 Console port: RJ-45/micro-USB Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z 10G support: N Port mirroring: Y IP routing: Y Flow control support: Y Link aggregation: Y Broadcast storm control: Y Rate limiting: Y Spanning tree protocol: Y Head-of-line (HOL) blocking: Y IPv4 routes: 48 IPv6 routes: 48 VLAN support: Y Virtual LAN features: Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN Number of VLANs: 4000 Switching capacity: 20 Forwarding rate: 14.9 MAC address table: 8000 Store-and-forward: Y Static route: Y Number of IP interfaces: 16 Jumbo frames support: Y Jumbo frames: 9000 Packet buffer memory: 4.1 DHCP features: DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping Access Control List (ACL): Y IGMP snooping: Y MAC address filtering: Y Static port security: Y SSH/SSL support: Y Loop protection: Y BPDU filtering/protection: Y IP-MAC-Port binding: Y Authentication: MAC-based authentication,Port-based authentication Authentication type: RADIUS Multicast support: Y Multicast Listener Discovery (MLD) snooping: Y Management protocols: SNMPv1/v2c/v3, SNTP GARP VLAN Registration Protocol (GVRP): Y IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert Rack mounting: Y Form factor: 1U Product colour: Black LED indicators: Y Firmware upgradeable: Y Fanless: Y Minimum system requirements: Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. Power source: AC Power supply included: Y AC input voltage: 100 - 240 AC input frequency: 50/60 Power consumption (max): 6.84 Power over Ethernet (PoE): N Operating temperature (T-T): 0 - 40 Storage temperature (T-T): -40 - 70 Operating relative humidity (H-H): 10 - 90 Storage relative humidity (H-H): 5 - 90 Heat dissipation: 23.33 Width: 294 Depth: 180 Height: 44 Quick start guide: Y User guide: Y Manual: Y Rack mount kit: Y
