Lenovo 4XC7A08236 network card Internal Ethernet 10000 Mbit/s
Lenovo 4XC7A08236, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s
Availability: Arriving Soon
The Broadcom 57416 10Gb BASE-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate | 10000 |
| Networking standards | IEEE 802.3ab,IEEE 802.3an |
| Ethernet LAN | Y |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 |
| Cabling technology | 10/100/1000BaseT(X) |
| Design | |
| Component for | Server |
| Internal | Y |
| Antenna | N |
| Form factor | OCP 3.0 |
| Certification | CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge |
| System requirements | |
| Windows operating systems supported | Y |
| Linux operating systems supported | Y |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 |
| Storage relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 76 |
| Depth | 115 |
AirLancer O-360Q-5G
Thermal Transfer Printable

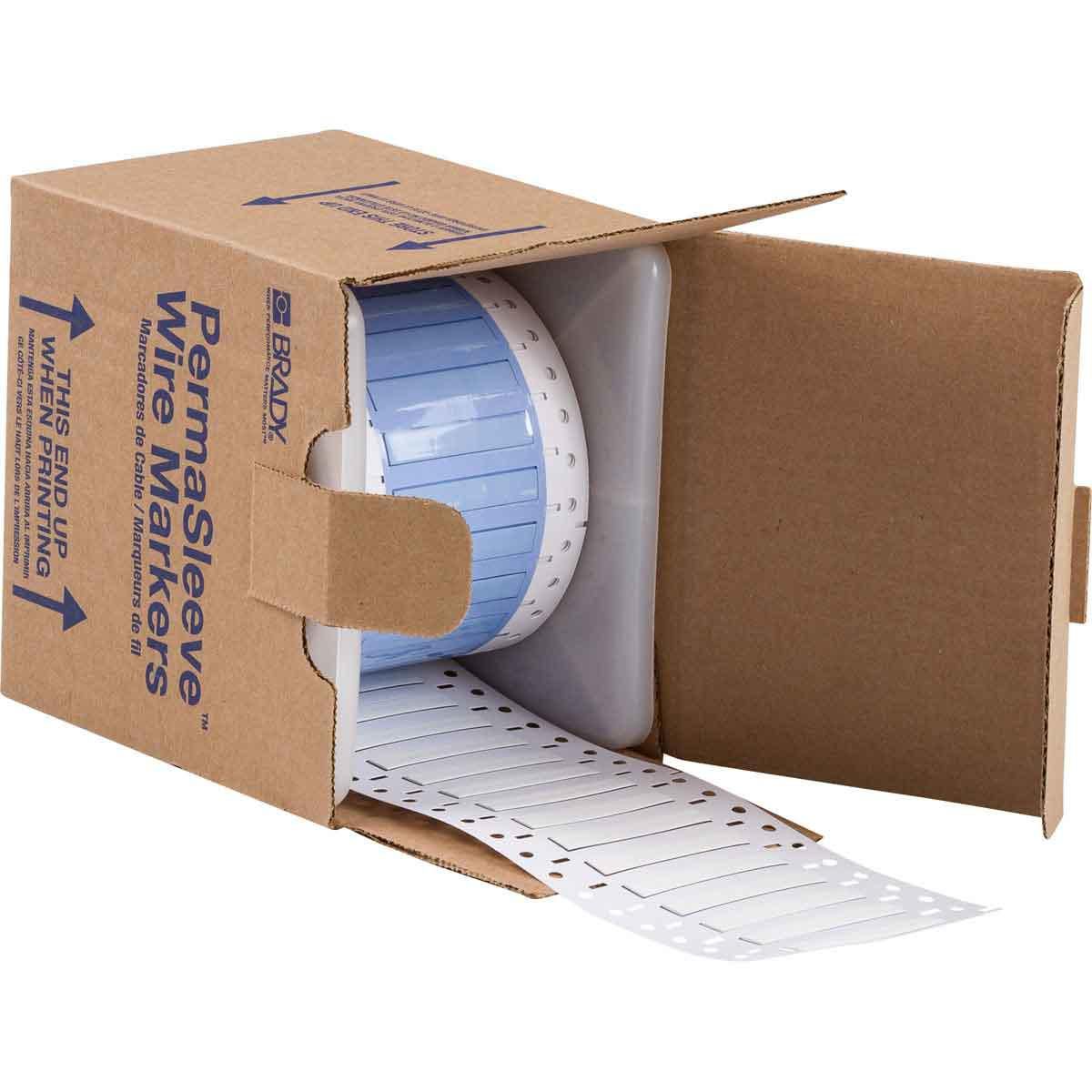

PermaSleeve Wire Marking

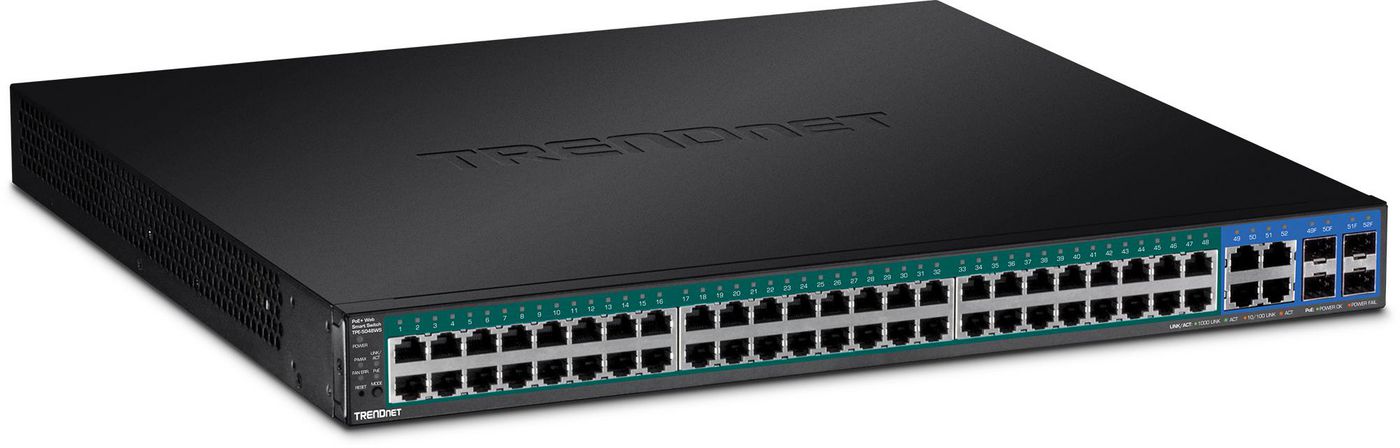

52-Port Gigabit Web Smart

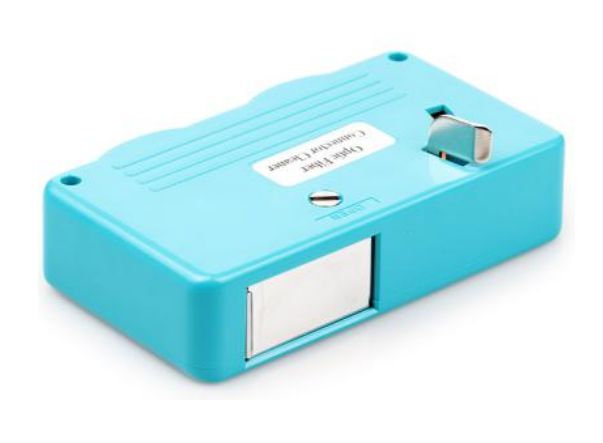

Fiber cleaning casette
