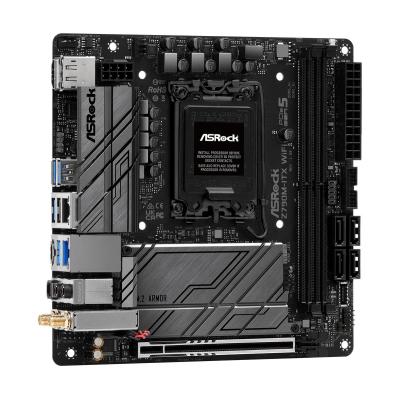

ASRock Z790M-ITX WiFi Intel LGA 1700 Mini-ITX Motherboard - Retail
€170,40
ASRock Z790M-ITX WiFi Intel LGA 1700 Mini-ITX Motherboard - Retail
Availability: In stock
Secure payment · Fast delivery
EAN:4710483941054Categories:, , Brand:
ASRock Z790M-ITX WiFi Intel LGA 1700 Mini-ITX Motherboard - Retail
Specifications
Specifications
| Produktbeskrivelse | ASRock Z790M-ITX WiFi - bundkort - mini ITX - LGA1700 sokkel - Z790 |
| Produkttype | Bundkort - mini ITX |
| Chipsættype | Intel Z790 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th and 13th Generation Intel Core/Pentium Gold/Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR5, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x Hyper M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Audio | High Definition Audio (7.1-kanal) |
| LAN | Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Chipset Type | Intel Z790 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - mini ITX |
| Bus Clock | 5200 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5600 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, RED 2014/53/EU, UKCA, FCC Part 15 Subpart B |
| Type | High Definition Audio (7.1-channel) |
| Network Controller | Intel I219V |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 1 x M.2 socket (2230 M.2 Key E slot) | 2 x M.2 socket (2280 M.2 Key M slot) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 4 x USB 3.2 Gen 2 | 1 x USB 2.0 | 1 x USB-C 3.2 Gen2x2 | 2 x antenna | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x SPDIF out | 1 x LAN (2.5Gigabit Ethernet) | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x Embedded DisplayPort (eDP) - header | 1 x USB-C 3.2 Gen 2x2 - header | 2 x USB 3.2 Gen 1 - header | 2 x USB 2.0 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock EZ Mode, Nichicon 12K Black Caps, ASRock Steel Slots, Hi-Density Power Connectors, Water Pump Header, Intel Turbo Boost Max Techno |
| Cables Included | 2 x Serial ATA cable |
| Depth | 17 cm |
| Included Accessories | 2 x M.2 screws, IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Software Included | ASRock A-Tuning, ASRock XFast LAN, ASRock Polychrome SYNC |
| Width | 17 cm |
