Features Ubiquiti UniFi Switch Aggregation

Managed switch, management via UniFi Network Controller

8x SFP+ port, 10Gbps uplinking

1.3" LCM touchscreen

Switching capacity: 160 Gbps

Layer 2 functions

Rackmountable

Dimensions: 442.4 x 120 x 43.7 mm

8-port SFP+ switch

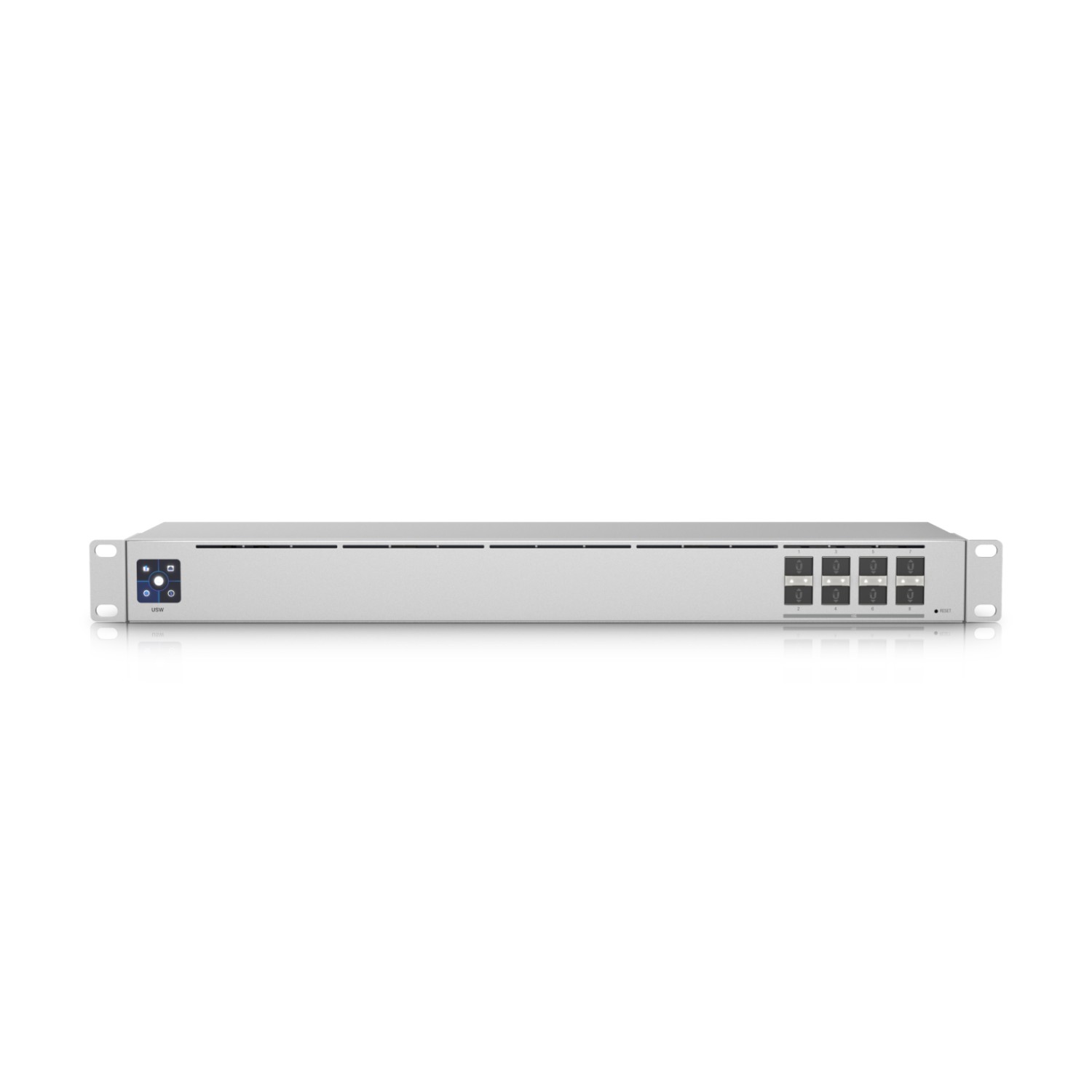

The Ubiquiti USW Switch Aggregation is a managed layer 2 switch with 8 SFP+ ports for extra bandwidth and increased network performance via fiber optic. The link aggregation switch offers 160 Gbps switching capacity and is equipped with a 1.3 inch touchscreen on which you can read status information. With a depth of only 12 cm, you can easily place this compact fanless switch in a rack mount while it takes up little space. The fanless design ensures quiet operation.

Ubiquiti UniFi Network Controller and UniFi app

You easily configure and manage the switch via the UniFi Network Controller software on your PC or via the UniFi mobile app. The software also makes it possible to access your other switches within the network, so that you can easily manage them from one central point. All devices are clearly displayed within the graphical interface and you can perform software updates or adjust configurations. You do not have to pay anything for the UniFi Controller software and the UniFi app and no licenses are required.

Package contents

• Ubiquiti UniFi Switch Aggregation
• Power adapter
• Manual
