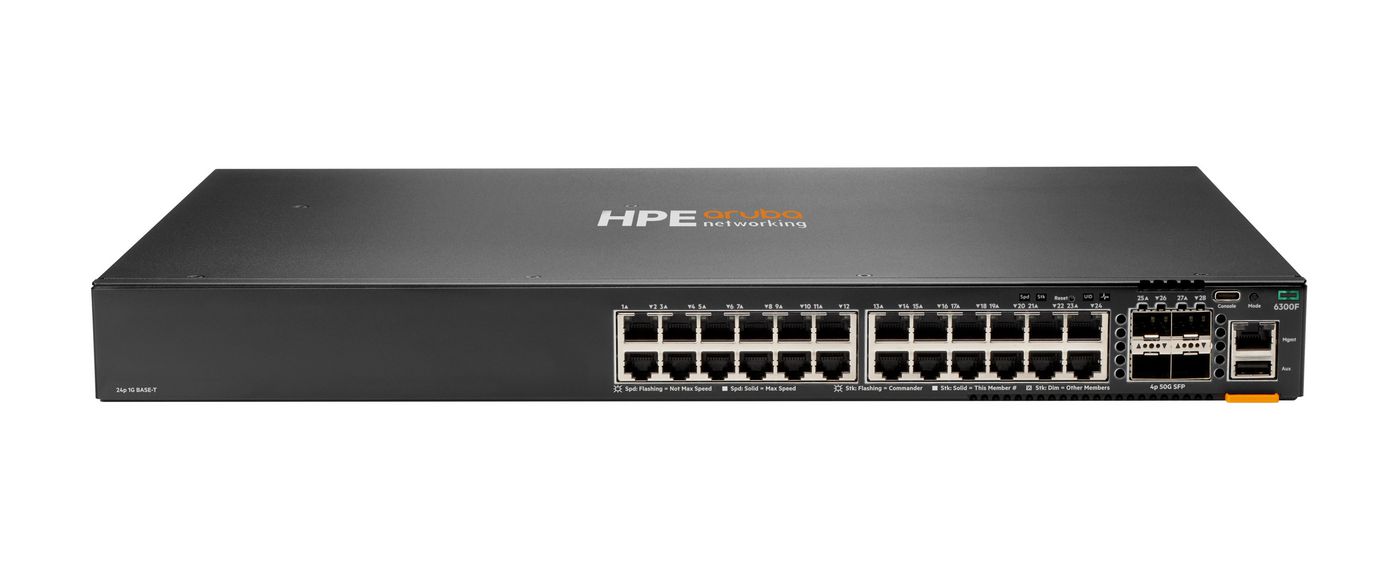

HPE Aruba Networking CX 6300F
€5.107,53
HPE Aruba Networking CX 6300F
Availability: In stock
Secure payment · Fast delivery
EAN:W129106792Categories:, , Brand:
HPE Aruba Networking CX 6300F
Specifications
Specifications
| Latency (1 Gbps) | 2,28 µs |
| Latency (10 Gbps) | 1,46 µs |
| Number of queues | 8 |
| Packet buffer memory | 8 MB |
| Switching capacity | 448 Gbit/s |
| Throughput | 334 Mpps |
| Design | Airflow direction Front-to-back airflow Product colour Black Rack mounting Yes Stackable Yes |
| Airflow direction | Front-to-back airflow |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| Multicast features | IPv4 multicast entries 8000 IPv6 multicast entries 8000 Multicast support Yes Number of multicast groups filtered 8000 |
| IPv4 multicast entries | 8000 |
| IPv6 multicast entries | 8000 |
| Multicast support | Yes |
| Number of multicast groups filtered | 8000 |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Non-operating altitude | 0 - 4600 m |
| Operating altitude | 0 - 3040 m |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 15 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Optical fiber | Transmission distance (max) 10 km |
| Transmission distance (max) | 10 km |
| Dimensions (W x D x H) (imperial) | 1.73 x 17.4 x 12.9 " |
| Fan | Fixed fans |
| Latency | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |
| Weight (imperial) | 9,61 lbs |
| Packaging content | Rack mount kit Yes |
| Rack mount kit | Yes |
| Built-in processor | Yes |
| Flash memory | 32000 MB |
| Internal memory | 8000 MB |
| Memory type | DDR4-SDRAM |
| Noise level | 31,6 dB |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Input current | 2.5/1.4 A |
| Number of power supply units | 1 |
| Power consumption (max) | 63 W |
| Power consumption note | Idle: 49W 100% Traffic Rate: 63W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Protocols | Routing protocols OSPF, OSPFv3 |
| Routing protocols | OSPF, OSPFv3 |
| Security | Access Control List (ACL) Yes DHCP features DHCP relay, DHCP serverIGMP entries 8000 SSH/SSL support Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| IGMP entries | 8000 |
| SSH/SSL support | Yes |
| Vendor information | Brand Name Hewlett Packard Enterprise Warranty 1 Ã…r |
| Brand Name Hewlett Packard Enterprise | Warranty 1 Ã…r |
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 Ã…r |
| Hovedkategori | Surveillance & Security |
| Underkategori | Network Switches |
