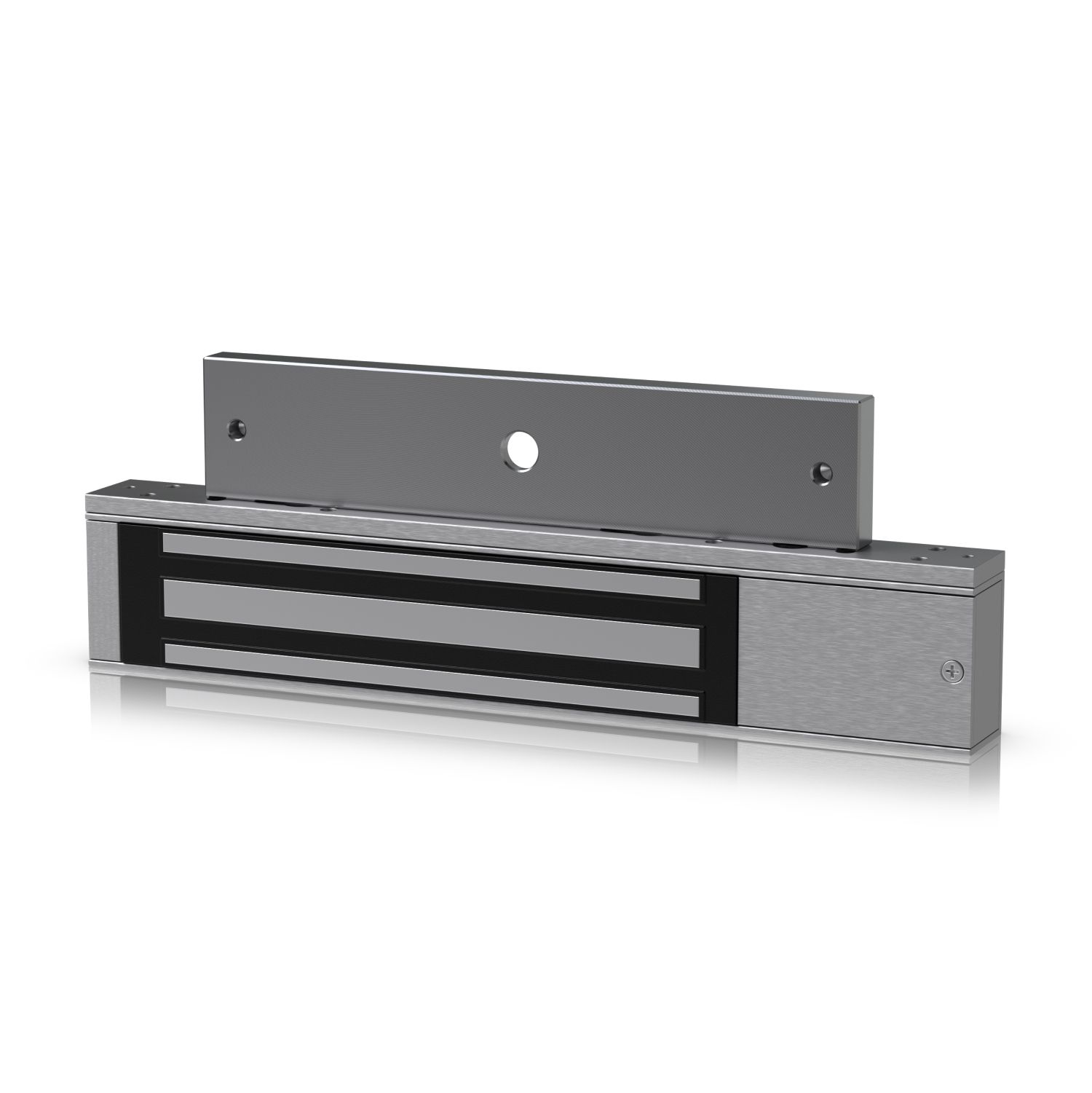

Fail-safe magnetic lock for

Features Ubiquiti UniFi Access Magnetic Lock 270kg

Fail-safe magnetic lock with a holding force of 270kgSuitable for various doors, opening inwards or outwardsDirect connection to UniFi Access HubSuitable for wooden, metal and glass doorsLED status indication: red (locked) and green (unlocked)Supports L, Z and U mounting bracketsNDAA compliant and CE/FCC/IC certified

Fail-safe door lock for secure access control

The Ubiquiti UniFi Access Magnetic Lock 270kg works according to the fail-safe principle. This means that the door automatically unlocks when the power supply is lost. This ensures safe passage in the event of a power outage or emergency situations. In combination with a UniFi Access Hub, this magnetic lock is suitable for professional environments where security and reliable access control are central.

Seamless integration with UniFi Access

The UniFi Access magnetic lock is connected directly to a UniFi Access Hub. The connection is via a powered lock relay and DPS contacts, so that door status and locking are centrally managed within UniFi Access. The Ubiquiti UniFi Access Magnetic Lock is compatible with the following UniFi Access Hub:

Widely applicable lock with flexible mounting

The 270kg version of the Ubiquiti UniFi Access Magnetic Lock is suitable for wooden, metal and glass doors. Depending on the type of door and direction of rotation, you use an L, Z or U bracket. This makes the lock suitable for both inward and outward opening doors, including glass doors with a narrow door thickness and gap distance.

Robust construction for everyday use

The housing and mounting plates of the magnetic lock are made of aluminum, while the anchor is made of steel. These sturdy materials ensure a long lifespan and stable locking, even with intensive use. The lock operates on 12V DC with a power consumption of approximately 500mA and functions reliably at temperatures from -10 °C to 50 °C.

Package contents

• Ubiquiti UniFi Access Magnetic Lock 270kg (UA-Lock-Magnetic-270kg)
• Installation plate
• Anchor plate
