Poynting · Antennen · LTE/GSM · Marine · A-OMNI-0291-V2 · N-Type (F) · Marine 7dbi Rundstrahl OMNI-291 N-Type-F "LTE-Kompatibel"

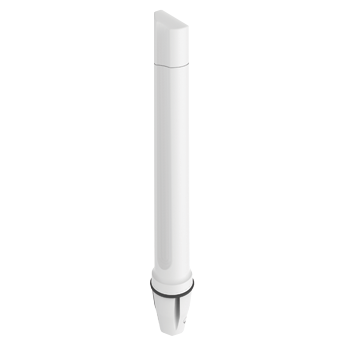

Poynting LTE/GSM marine antenna OMNI-291-V2 N-TYPE (F) - white GSM antenna marine 7dbi omnidirectional OMNI-291 N-Type-F "LTE compatible" The OMNI-291 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation on most marine attachment
Availability: In stock
["Poynting LTE/GSM marine antenna OMNI-291-V2 N-TYPE (F) - white GSM antenna marine 7dbi omnidirectional OMNI-291 N-Type-F \"LTE compatible\" The OMNI-291 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation on most marine attachments. The ultra-wide frequency band covers all current LTE operating frequencies and provides excellent balanced gain across all frequencies, including the LTE and CDMA 450 MHz bands commonly required for marine applications. Higher frequencies are unaffected and the antenna design allows Poynting to have superior control of the pattern across the entire frequency range, making the OMNI-291 a true high performance omnidirectional antenna. The OMNI-291 guarantees signal reception almost anywhere along the coast, allowing it to be used in all parts of the world. Poynting Antennas achieves this through a new antenna configuration that uses multiple dipoles and a unique (patented) feeding network. The antenna is future-proof as it covers the 450MHz LTE frequency, which is becoming increasingly popular in different regions and countries!", "Medium gain omnidirectional antenna", "Specially designed antenna for marine and coastal applications", "Light", "UV and salt water resistant", "Robust and weather-resistant", "Use in the 2.4 - 2.5 GHz Wi-Fi band", "Marine / Yachts / Boats / Ferries", "Improved LTE reception", "IoT and M2M", "Poor data signal reception", "Improving the reliability and stability of data transmission", "Wi-Fi applications", "Frequency band: 450-470 MHz, 698-960 MHz, 1710-2700 MHz", "Gain max: 7 dBi", "Connection Type: M-Type-female", "Operating temperature: -40° - +80° C", "Waterproof to IP68", "Wind survival time: <186 km/h", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 68", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +80°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Product dimensions (L x W): 560 x 75mm", "Packed dimensions: 580 x 95 x 90mm", "Weight: 800g", "Packed weight: 950g", "Radome material: ABS (halogen-free)", "Housing color: white"]
Specifications
| Frequenzband | 450-470 MHz, 698-960 MHZ, 1710-2700 MHz |
| Gewinn max | 7 dBi |
| Verbindungs Typ | M-Type-female |
| Betriebstemperatur | -40° - +80° C |
| Wind survival time | <186 km/h |
| Umgebungsbedingungen | Outside/Inside |
| Protection class/standard for water ingress | IP 68 |
| Salt spray | MIL-STD 810F/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +80°C |
| Flammability class of the housing | UL 94-HB |
| Impact resistance | IK 08 |
| Produktabmessungen (L x B) | 560 x 75mm |
| Verpackte Abmessungen | 580 x 95 x 90mm |
| Weight | 800 g |
| Packed weight | 950 g |
| Radom Material | ABS (Halogenfrei) |
| Housing color | white |
