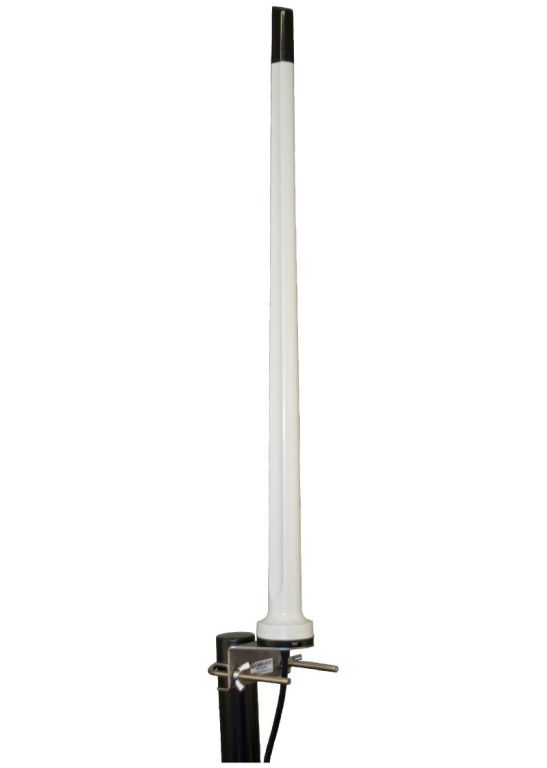

Poynting Antennas LTE/GSM Mast/Wall A-OMNI-0121-V3 white SMA (M) 2.4dbi omnidirectional/wall 8m cable SMA-M "LTE"
€69,53

Poynting LTE/GSM antenna A-OMNI-0121-V3 omnidirectional/wall SMA (M) - white OMNI-DIRECTIONAL, WIDEBAND LTE ANTENNA 690 - 960 MHz, 1.8 dBi; 1710 - 2700 MHz, 6 dBi This medium gain omnidirectional omnidirectional antenna covers the GSM 900, GSM1800 / UMTS and LTE frequency bands. It is a lightweight

Availability: In stock
-
+
Secure payment · Fast delivery
EAN:6009693810709Categories:PHONE & SMARTWATCH, Landline Telephone, Landline Phone AccessoriesBrand:

["Poynting LTE/GSM antenna A-OMNI-0121-V3 omnidirectional/wall SMA (M) - white OMNI-DIRECTIONAL, WIDEBAND LTE ANTENNA 690 - 960 MHz, 1.8 dBi; 1710 - 2700 MHz, 6 dBi This medium gain omnidirectional omnidirectional antenna covers the GSM 900, GSM1800 / UMTS and LTE frequency bands. It is a lightweight antenna that is easy to install. It is a cost-effective omnidirectional solution as it comes with an 8m cable. The antenna is a popular choice among installers because of its versatile base station capabilities. It is also ideal for Machine to Machine (M2M) applications that communicate over the GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE).", "Coverage of the GSM 900, GSM 1800/UMT and LTE frequency bands", "Increased connectivity stability", "Machine-to-Machine (M2M) capabilities", "Constantly high gain over a very wide frequency range", "Popular choice among installers because of its versatile base station", "Vandal-proof and waterproof housing (IP 65)", "Enables the provision of rural and remote wireless services", "M2M communications (ATMs, financial data processing, telemetry, etc.)", "Extend wireless data transmission to areas with weak signals (can increase connection range by a factor of 3 or more)", "If data signal reception is poor (inside or outside)", "With slow data transfer", "Unstable connection", "Increasing the reliability of system transmission", "Coax cable type - HDF-195", "Coax cable length - 8 meters", "Connection type - SMA - Male", "Medium gain omnidirectional antenna", "Wall and pole mounting possible", "Agile base station", "Light weight", "Covers most international GSM and LTE bands", "Wind survival time: ≤160 km/h", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65", "Salt spray: MIL-STD 810F/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK 08", "Product dimensions 590mm x 80mm x 55mm", "Packaging dimensions: 595mm x 130mm x 65mm", "Radome material: ABS (halogen-free)", "Housing color: white", "Mounting type: pole and wall mounting"]

Specifications

Specifications
Wind survival time≤160 km/h
Temperature range (operation)-40°C bis +70°C
UmgebungsbedingungenOutside/Inside
Protection class/standard for water ingressIP 65
Salt sprayMIL-STD 810F/ASTM B117
Relative humidity during operationBis zu 98%
Humidity during storage5% bis 95% - nicht kondensierend
Lagertemperatur-40°C bis +70°C
Flammability class of the housingUL 94-HB
Impact resistanceIK 08
Verpackungsabmessungen595 mm x 130 mm x 65 mm
Material des RadomsABS (halogenfrei)
Housing colorwhite
MontageartPole and wall mounting
