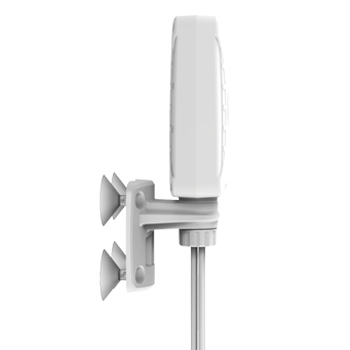

Poynting · Antennas · 5G/LTE · Mast/Wall/Window · A-XPOL-0001-V2-21 · SMA (M) · 3dbi 2x2 MIMO Cross Polarized Omnidirectional · SMA - Male · 2 x 5 Me
GSM antenna 3dbi 2x2 MIMO Cross Polarized Omnidirectional LTE 5G antenna XPOL-A0001-V2-21 The XPOL-1-5G is Poynting's second generation "V2" of the very popular cross-polarized 2x2 MIMO antenna. A 4X4 MIMO derivative is also available for special applications. The antenna has been completely redevel
Availability: In stock
["GSM antenna 3dbi 2x2 MIMO Cross Polarized Omnidirectional LTE 5G antenna XPOL-A0001-V2-21 The XPOL-1-5G is Poynting's second generation \"V2\" of the very popular cross-polarized 2x2 MIMO antenna. A 4X4 MIMO derivative is also available for special applications. The antenna has been completely redeveloped compared to the previous generation, with a completely new housing and antenna design. The antenna now covers the newer 3400 - 3800 MHz bands as well as the popular lower 698 MHz band and is suitable for 2G, 3G, 4G & 5G. The performance of the antenna is exceptional in the following frequency bands: 698 - 960 MHz, 1700 - 2700 MHz & 3400 - 3800 MHz. The radiation patterns of this antenna are omnidirectional and well controlled. This makes the antenna perfect for many applications, such as: B. urban, rural, agricultural and commercial applications. The robust mechanical housing design makes the antenna weather, dust and vandal resistant, giving it an IP65 rating suitable for harsh environments", "New 3400 to 3800 MHz, 5G band", "Broadband, including the latest 3.5GHz bands", "X-polarized 2x2 or 4x4 MIMO antenna", "Wall or pole mounting possible", "Lightweight and robust", "weatherproof (IP65)", "High pattern consistency across bands for 4G/5G carrier aggregation", "Outdoor antennas for Fixed Wireless Access (FWA)", "LTE/5G internet connections for consumers", "Industrial and commercial LTE/5G deployments", "Improving reception in urban households", "Telemetry access for electricity, energy and water", "Oil and gas communication systems", "Municipal and state systems", "Repeaters and amplifiers to improve coverage", "Frequency band: 698 - 3800 MHz", "2x2 LTE MIMO antenna", "Compatible with: 2G, 3G, 4G/LTE", "5G ready", "Waterproof to IP65", "Cable Type: HDF-195", "Cable length: 5 meters", "Connection type: SMA - Male", "Housing color: white", "Wind survival time: ≤250 km/h *Except for window mounting configuration", "Temperature range (operation): -40°C to +70°C", "Environmental Conditions: Outdoor/Indoor", "Protection class/standard for water ingress: IP 65", "Salt spray: MIL-STD 810G/ASTM B117", "Relative humidity during operation: Up to 98%", "Storage humidity: 5% to 95% - non-condensing", "Storage temperature: -40°C to +70°C", "Housing flammability rating: UL 94-HB", "Impact resistance: IK10", "Product dimensions 247mm x 157mm x 88mm", "Packaging dimensions:", "270mm x 190mm x 100mm", "Radome material: UV-stable ASA", "Radome color: Brilliant White Pantone P 179-1 C", "Mounting type: wall, pole and window mounting"]
Specifications
| Frequenzband | 698 - 3800 MHz |
| kompatibel mit | 2G, 3G, 4G/LTE |
| Kabel Typ | HDF-195 |
| Cable length | 5 Meter |
| Verbindungs Typ | SMA - Male |
| Housing color | weis |
| Wind survival time | ≤250 km/h *Except for window mounting configuration |
| Temperature range (operation) | -40°C bis +70°C |
| Umgebungsbedingungen | Outside/Inside |
| Protection class/standard for water ingress | IP 65 |
| Salt spray | MIL-STD 810G/ASTM B117 |
| Relative humidity during operation | Bis zu 98% |
| Humidity during storage | 5% bis 95% - nicht kondensierend |
| Lagertemperatur | -40°C bis +70°C |
| Flammability class of the housing | UL 94-HB |
| Impact resistance | IK10 |
| Radom-Material | UV-stabiles ASA |
| Radomfarbe | Brilliant white Pantone P 179-1 C |
| Montageart | Wall, pole and window installation |
