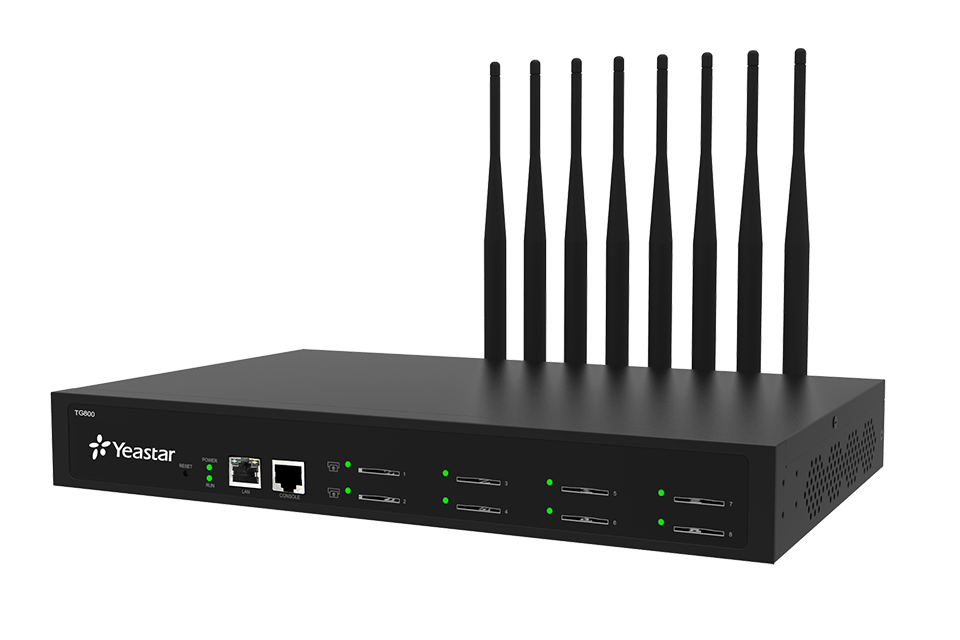

Yeastar LTE/4G-Gateway TG800L 8x Kanal
The Yeastar TG series connects GSM/3G/4G networks directly to VoIP networks, enabling bi-directional communication: GSM/3G/4G with VoIP and VoIP with GSM/3G/4G. The TG series is the best solution available for connecting IP-based telephone systems and offers a softswitch connection to a GSM/3G4G net
Availability: In stock
["The Yeastar TG series connects GSM/3G/4G networks directly to VoIP networks, enabling bi-directional communication: GSM/3G/4G with VoIP and VoIP with GSM/3G/4G. The TG series is the best solution available for connecting IP-based telephone systems and offers a softswitch connection to a GSM/3G4G network. It is also the best fallback solution if the landline connection fails. *You can order either GSM or 3G or 4G channel. TG100 and TG1600 do not support 4G LTE. **Click here to check the frequencies/bands and mobile operators supported by TG GSM VoIP Gateway", "Connect telephone system systems to GSM or 3G-WCDMA or 4G-LTE networks", "Send and receive SMS messages via web interface, supports bulk SMS", "Save significant phone costs with mobile-to-mobile calls and SIP trunks", "Everything can be set up effortlessly in the web-based administration", "Cost-effective backup if the landline network fails", "Easy to integrate: high compatibility with established IPPBX and Softswitch"]
Specifications
| Models* | TG100 |
| Number of Ports | 1 |
| GSM Frequency** | 850/900/1800/1900 MHz |
| WCDMA Frequency** | 850/1900 MHz, 850/2100 MHz, 900/2100 MHz |
| 4G Data | – |
| 4G LTE Band** | Don’t support 4G LTE |
| Protocol | SIP, IAX2 |
| Antenna Splitter (4 in 1) | – |
| Transport | UDP, TCP, TLS, SRTP |
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex |
| DTMF Mode | RFC2833, SIP Info, In-band |
| Echo Cancellation | ITU-T G.168 LEC |
| Calling Type | Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) |
| Network Protocol | FTP, TFTP, HTTP, SSH |
| LAN | 1 10/100 Mbps Ethernet Interface |
| NAT Traversal | Static NAT, STUN |
| Network | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN |
| Operation Range | 0°C to 40°C, 32°F to 104°F |
| Power Supply | DC 12V, 1A |
| Storage Range | -20°C to 65°C, -4°F to 149°F |
| Dimensions (L × W × H) (mm) | 110 x 70 x 24 |
| Humidity | 10-90% non-condensing |
| Einfach zu integrieren | high compatibility with established IPPBX and softswitch |
