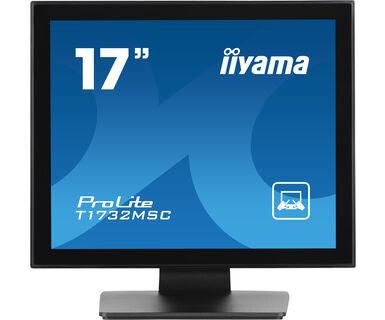

iiyama 17" Projective Capacitive 10pt touch screen with AG-coating
This Model 17" PCAP Anti-Glare coated, Bezel Free Front, 10P Touch, 1280x1024, Speakers, VGA, DisplayPort, HDMI, 215cd/m² (with touch), USB Interface, Built-In Power Adapter, Multitouch with supported OS. __________________________________________ The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edg
Availability: In stock
This Model 17" PCAP Anti-Glare coated, Bezel Free Front, 10P Touch, 1280x1024, Speakers, VGA, DisplayPort, HDMI, 215cd/m² (with touch), USB Interface, Built-In Power Adapter, Multitouch with supported OS. __________________________________________ The ProLite T1732MSC-B1SAG 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Specifications
| Front bezel colour | Black |
| Glass thickness | 1,2 mm |
| Market positioning | Business |
| Product colour | Black |
| Anti-glare screen | Yes |
| Backlight type | LED |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 215 cd/m² |
| Display brightness (peak) | 215 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 17 " |
| Display diagonal (metric) | 43 cm |
| Display number of colours | 16.7 million colours |
| Display resolution | 1280 x 1024 pixels |
| Display surface | Matt |
| Display technology | LED |
| HD type | Full HD |
| Horizontal scan range | 31 - 80 kHz |
| Native aspect ratio | 5:4 |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Pixel pitch | 0.264 x 0.264 mm |
| Response time | 5 ms |
| Screen shape | Flat |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Tabletop |
| Viewable size, horizontal | 33,8 cm |
| Viewable size, vertical | 27,05 cm |
| Viewing angle, horizontal | 170 ° |
| Viewing angle, vertical | 160 ° |
| Cable lock slot | Yes |
| Cable management | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, French, German, Italian, Japanese, Spanish, Traditional Chinese |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 5 - 90 ° |
| VESA mounting | Yes |
| Built-in camera | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Active display area (W x H) | 338 x 270.5 mm |
| Brightness | 215 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Depth | 24 cm |
| Height | 37,8 cm |
| International Protection (IP) code | IP54 |
| Touch method | stylus, finger, glove (latex) |
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Weight | 4900 g |
| Width | 38,7 cm |
| Cables included | AC, Audio, DisplayPort, HDMI, USB |
| Manual | Yes |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Stand included | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Audio input | Yes |
| Audio output | Yes |
| Built-in USB hub | No |
| DC-in jack | Yes |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 11,9 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1518684 |
| Power consumption (off) | 0,3 W |
| Power consumption (standby) | 0,6 W |
| Power consumption (typical) | 20 W |
| Power supply type | Internal |
| Socket connector type | C13 |
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
| Brand Name | I'm not |
| Warranty | 3 years |
| Depth (with stand) | 24 cm |
| Height (with stand) | 37,8 cm |
| Weight (with stand) | 4900 g |
| Width (with stand) | 38,7 cm |
