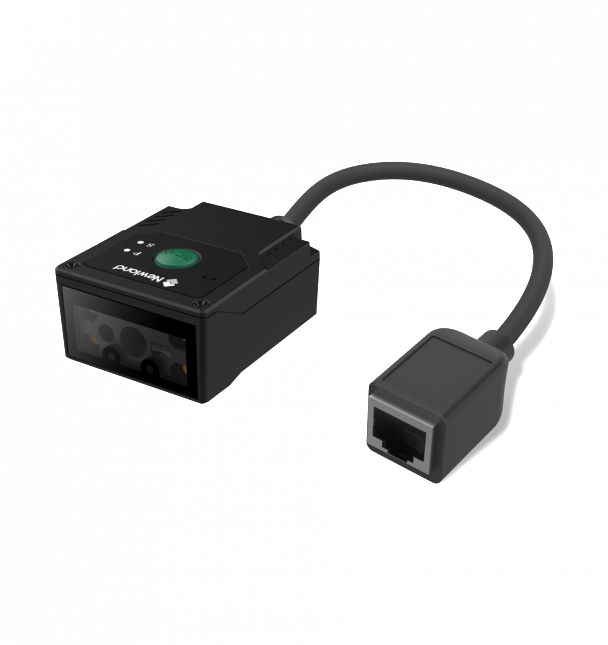

Newland 1D/2D, 1280 x 800 CMOS, RS-232, USB, 41.5 x 49.5 x 24.3 mm, 56 g
2D Mega Pixel Fixed Mounted Reader with 2 mtr. RS232 extension cable and multiplug adapter. Laser and LED Aimer, white light & IR sensor. (Barracuda PRO) ____________________________________________________ With its high motion tolerance, the FM431 Barracuda Pro adds more speed and accuracy to the FM430 Series. Its design allows for the scanning of 1D and 2D barcodes, even under direct sunlight, making the FM431 Barracuda Pro a versatile fixed-mount scanner perfect for indoor and outdoor applications. • Fast 2 meter per second motion tolerance • Fast communication responses to the host • Superb reading in bright sunlight • Low power consumption • Dual aiming in one device (Laser and LED) • Plug and play into existing FM430 designs • Easy to integrate with USB or serial cable options • Two mounting points
Availability: In stock
2D Mega Pixel Fixed Mounted Reader with 2 mtr. RS232 extension cable and multiplug adapter. Laser and LED Aimer, white light & IR sensor. (Barracuda PRO) ____________________________________________________ With its high motion tolerance, the FM431 Barracuda Pro adds more speed and accuracy to the FM430 Series. Its design allows for the scanning of 1D and 2D barcodes, even under direct sunlight, making the FM431 Barracuda Pro a versatile fixed-mount scanner perfect for indoor and outdoor applications. • Fast 2 meter per second motion tolerance • Fast communication responses to the host • Superb reading in bright sunlight • Low power consumption • Dual aiming in one device (Laser and LED) • Plug and play into existing FM430 designs • Easy to integrate with USB or serial cable options • Two mounting points
Specifications
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Cables included | RS-232 |
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 2 m |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Power source type | RS-232 |
| 2D (matrix & stacked) barcodes supported | Data Matrix, QR Code |
| Horizontal field of view | 51 ° |
| Linear (1D) barcodes supported | Code 39, EAN-13, PDF417 |
| Pitch reading angle | -55 - 55 ° |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Tilt reading angle | 0 - 360 ° |
| Type | Fixed bar code reader |
| Vertical field of view | 32 ° |
| Yaw reading angle | -55 - 55 ° |
| Brand Name | Newland |
| Warranty | 5 years |
