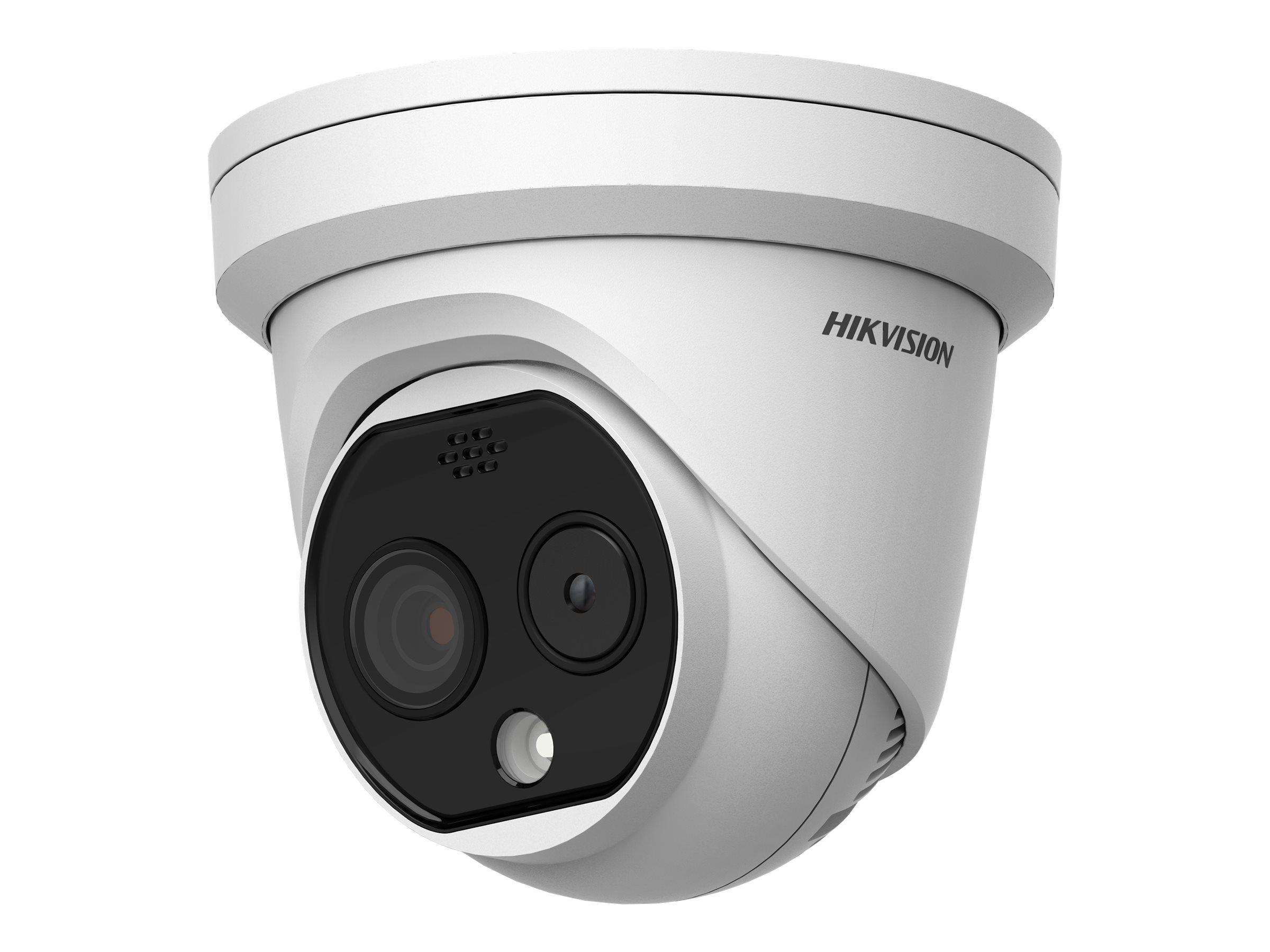

Hikvision HeatPro Series DS-2TD1228-7/QA Termisk/netværksovervågningskamera 2688 x 1520 (optisk)/256 x 192 (termisk)
€908,83
Hikvision HeatPro Series DS-2TD1228-7/QA - Termisk/netværksovervågningskamera - kanontårn - farve (Dag/nat) - 2688 x 1520 (optisk)/256 x 192 (termisk) - 720p, 1080p - fast brændvidde - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE klasse 3
Availability: In stock
Secure payment · Fast delivery
EAN:6931847135584Categories:, , Brand:
Hikvision HeatPro Series DS-2TD1228-7/QA - Termisk/netværksovervågningskamera - kanontårn - farve (Dag/nat) - 2688 x 1520 (optisk)/256 x 192 (termisk) - 720p, 1080p - fast brændvidde - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE klasse 3
Specifications
Specifications
| Produktbeskrivelse | Hikvision HeatPro Series DS-2TD1228-7/QA - termisk/netværksovervågningskamera - kanontårn |
| Enhedstype | Termisk/netværksovervågningskamera - fast - kanontårn |
| Audio | Ja |
| Dimensioner (B x D x H) | 13.83 cm x 13.83 cm x 12.31 cm |
| Vægt | 940 g |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Maksimum opløsning | 2688 x 1520 (optisk)/256 x 192 (termisk) |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Video Modes | 720p, 1080p |
| Billedsensortype | Uncooled VOx FPA / PS CMOS - 1/2.7" (optical) |
| Minimumbelysning | 0.0176 lux - farve - F2.25 - AGC on<br>0.0035 lux - S/H - F2.25 - AGC on |
| Brændviddekontrol | Fast brændvidde |
| Brændvidde | 6.4 mm |
| Objektiv Iris | F/1.6 |
| Interface | Ethernet 10Base-T/100Base-TX |
| Kontrolgrænseflade | RS-485 |
| Spænding | DC 12 V / PoE klasse 3 |
| Egenskaber | Wide Dynamic Range (WDR), strømstødsbeskyttelse, lynresistent, Voice Alert, ONVIF (Profil S) support, ONVIF (Profile G) support, Voltage Transient Protection, IP-adressefiltrering, 8 - 14 μm spektral respons, op til 20 kanalers samtidig live visning, Smart VCA, termisk sensitivitet 40 mK (NETD), temperaturmåling, Target Coloration, 6,9 mm termisk objektiv |
| Miljømæssige parametre (operativ) | -40 °C - 65 °C; 0 - 95% relativ luftfugtighed |
| Audio Formats | PCM, G.726, G.722.1, MP2L2, G.711a, G.711u |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 13.83 cm |
| Device Type | Thermal / network surveillance camera |
| Form Factor | Turret |
| Height | 12.31 cm |
| Weight | 940 g |
| Width | 13.83 cm |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 2688 x 1520 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 4 |
| Exposure Range | 1 sec - 1/100000 sec |
| Features | Wide Dynamic Range (WDR), surge protection, lightning-resistant, Voice Alert, ONVIF (Profile S) support, ONVIF (Profile G) support, Voltage Transient Protection, IP address filtering, 8 - 14 μm spectral response, up to 20 channels simultaneous live v |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 15 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1520 (optical) / 256 x 192 (thermal) |
| Minimum Illumination | 0.0176 lux - color - F2.25 - AGC on | 0.0035 lux - B&amp;W - F2.25 - AGC on |
| Motion Detection | Yes |
| Type | Fixed focal |
| Focal Length | 6.4 mm |
| Horizontal Field of View (degree) | 53 |
| Lens Iris | F/1.6 |
| Vertical Field of View (degree) | 28 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, SRTP, EAP, SFTP |
| Ports | LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack | Audio line out | Serial RS-485 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Compliant Standards | IP66, IEEE 802.3af |
| Power Requirements | DC 12 V / PoE Class 3 |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% |
