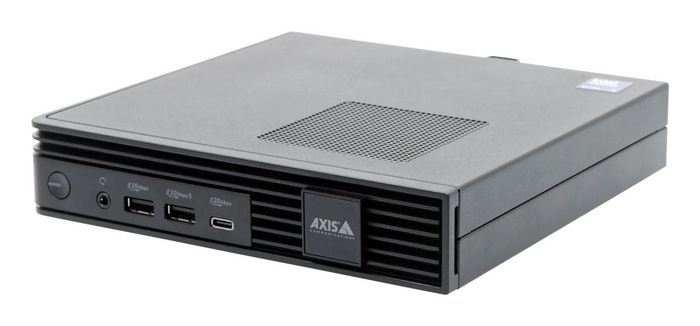

Axis S9301 Mk II
AXIS S9301 Mk II is a compact and flexible workstation which can be used as a client when connected to a server such as AXIS S12 or AXIS S22 Series, or as a server when used in combination with AXIS S30 or AXIS S40 Series. It supports up to two 4K monitors for optimal viewing. With a micro form factor, it’s ideal wherever space is limited. It comes preloaded with AXIS Camera Station Pro client software. Plus, the integrated AXIS Recorder Toolbox ensures quick and easy installation. Furthermore, it includes next-business-day on-site hardware replacement and a 5-year warranty. Plus, 10 AXIS Audio Manager Pro licenses are included.
Availability: In stock
AXIS S9301 Mk II is a compact and flexible workstation which can be used as a client when connected to a server such as AXIS S12 or AXIS S22 Series, or as a server when used in combination with AXIS S30 or AXIS S40 Series. It supports up to two 4K monitors for optimal viewing. With a micro form factor, it’s ideal wherever space is limited. It comes preloaded with AXIS Camera Station Pro client software. Plus, the integrated AXIS Recorder Toolbox ensures quick and easy installation. Furthermore, it includes next-business-day on-site hardware replacement and a 5-year warranty. Plus, 10 AXIS Audio Manager Pro licenses are included.
Specifications
| Chassis type | Micro Tower |
| Housing material | Plastic |
| Product colour | Black |
| Display included | No |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® Graphics |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Ethernet LAN | Yes |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 TOPs |
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Power plug type | Type C |
| AC adapter included | Yes |
| Cables included | Power |
| Internal memory type | DDR4-SDRAM |
| Maximum resolution | 3840 x 2160 pixels |
| Operating system installed | Windows 11 IoT Enterprise |
| Playback modes | Fast play |
| Product type | Workstation |
| Resolution at capture speed | 1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps, 640x360@30fps |
| Split screen | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10, 100, 1000 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 19.5 V |
| Power | 180 W |
| Power consumption (max) | 80 W |
| Power consumption (typical) | 50 W |
| Power supply | 180 W |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Built-in processor | Yes |
| Efficient cores | 8 |
| Efficient-core Max Turbo Frequency | 4,4 GHz |
| Maximum turbo power | 121 W |
| Number of processors installed | 1 |
| Performance cores | 6 |
| Processor base power | 65 W |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor frequency | 5 GHz |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 235 |
| Processor socket | FCLGA1851 |
| Processor threads | 14 |
| Intel Secure Boot | Yes |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Total storage capacity | 256 GB |
| Windows operating systems supported | Windows 11 |
| Compliance certificates | BSMI, CSA, Federal Communications Commission (FCC), KC, Korean Industrial Standards (KS), Norma Oficial Mexicana (NOM), RCM, REACH, RoHS, Trade Agreements Act (TAA), VCCI |
| Warranty period | 5 year(s) |
| Brand Name | Axis |
| Warranty | 5 years |
