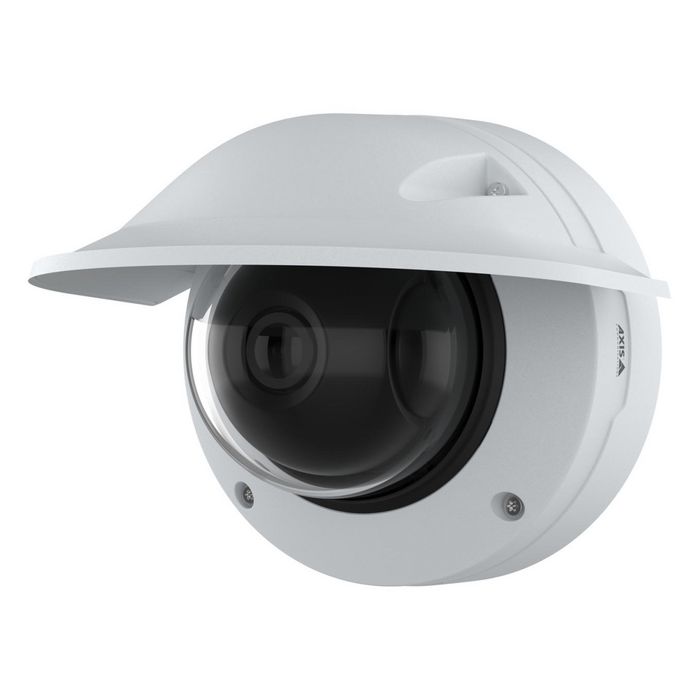

Axis Q3626-VE
Advanced dome camera with remote adjustment by Pan, Tilt, Roll and Zoom (PTRZ). Inlcudes a Deep Learning Processing Unit (DLPU) for advanced edge analytics. Support for Forensic WDR, Lightfinder 2.0. Robust, dust- and IK10 vandal-resistant outdoor-ready metal casing. Varifocal 4-9 mm P-Iris lens with remote pan, tilt, roll, zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy.
Availability: In stock
Advanced dome camera with remote adjustment by Pan, Tilt, Roll and Zoom (PTRZ). Inlcudes a Deep Learning Processing Unit (DLPU) for advanced edge analytics. Support for Forensic WDR, Lightfinder 2.0. Robust, dust- and IK10 vandal-resistant outdoor-ready metal casing. Varifocal 4-9 mm P-Iris lens with remote pan, tilt, roll, zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy.
Specifications
| Audio detection | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Sample rate | 48 kHz |
| Voice codecs | AGC |
| Camera shutter speed | 1/91000 - 1 s |
| Lens viewing angle, horizontal | 103 - 52 ° |
| Lens viewing angle, vertical | 56.2 - 29.6 ° |
| Minimum illumination | 0,06 lx |
| Pan range | 0 - 190 ° |
| Tilt angle range | -8 - 75 ° |
| Form factor | Dome |
| Housing material | Aluminium, Polycarbonate (PC) |
| I code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Wall |
| Product colour | White |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Focal length range | 4.3 - 8.6 mm |
| Maximum aperture number | 2,4 |
| Minimum aperture number | 1,5 |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Night vision | Yes |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Manual | Yes |
| Mounting brackets included | Yes |
| Number of cameras | 1 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese |
| Number of languages | 18 |
| Placement supported | Outdoor |
| Processor model | ARTPEC-8 |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| DC output voltage | 10, 28 |
| Power consumption (max) | 25 W |
| Power consumption (typical) | 7 W |
| Power source type | DC, PoE |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Doesn't contain | BFR, PVC |
| Warranty period | 5 year(s) |
| Brand Name | Axis |
| Warranty | 5 years |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Image stabilizer | Yes |
| Maximum resolution | 2688 x 1512 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 800, 160 x 120, 160 x 90, 2688 x 1512 |
| Text caption overlay | Yes |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Video streaming | Yes |
| Diameter | 18,4 cm |
