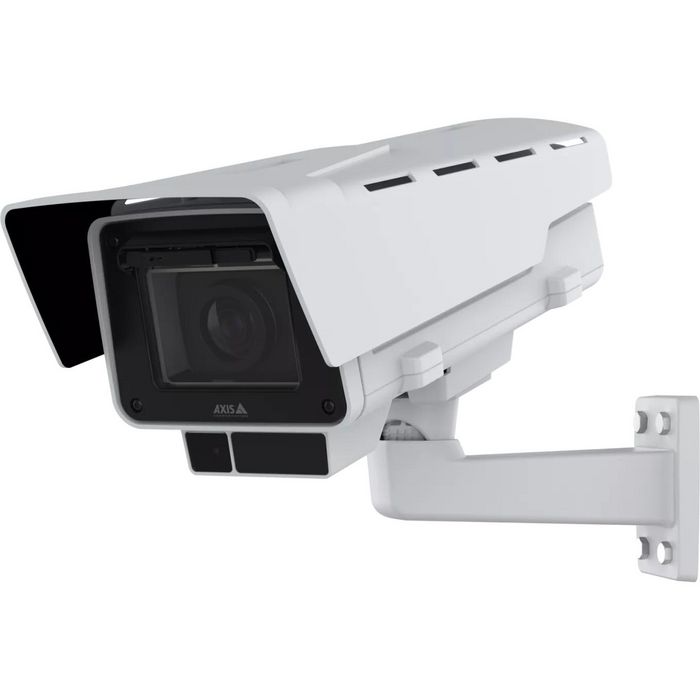

Axis Q1728-LE
1/1.2” image sensor, outdoor block camera with built-in wiper, NEMA 4X, IP66, IP67 and IK10-rated, 4K / 8 MP resolution, day/night, with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Forensic WDR and Lightfinder 2.0, OptimizedIR, a power-efficient 850nm IR LED technology. Varifocal IR corrected 5.9-13.3 mm lens, 108°-49° HFOV with remote zoom, focus and corridor format bracket. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 8 MP stream up to 50/60 fps. AXIS Object Analytics, shock detection and active tampering alarm and open casing intrusion detection. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Audio in jack, audio out with speaker pairing and supervised I/O port, microSD memory card slot. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. IDC p
Availability: In stock
1/1.2” image sensor, outdoor block camera with built-in wiper, NEMA 4X, IP66, IP67 and IK10-rated, 4K / 8 MP resolution, day/night, with Deep Learning Processing Unit (DLPU). ARTPEC-9 SoC. Forensic WDR and Lightfinder 2.0, OptimizedIR, a power-efficient 850nm IR LED technology. Varifocal IR corrected 5.9-13.3 mm lens, 108°-49° HFOV with remote zoom, focus and corridor format bracket. Multiple, individually configurable H.264/H.265/AV1 with Zipstream and Motion JPEG. 8 MP stream up to 50/60 fps. AXIS Object Analytics, shock detection and active tampering alarm and open casing intrusion detection. AXIS Edge Vault with FIPS 140-3 Level 3 for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Audio in jack, audio out with speaker pairing and supervised I/O port, microSD memory card slot. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. IDC punch or RJ45 connection. Carbon nanotube window heater, camera heater and fan. Arctic Temperature Control for start-up in -40°C to +60°C (-40 ºF to 140 ºF). ). Includes removable sunshield, wall bracket and cable glands. Midspan or power supply not included.
Specifications
| Audio detection | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.726, OPUS, PCM |
| Sample rates | 8 - 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 49 - 108 ° |
| Lens viewing angle, vertical | 27 - 58 ° |
| Minimum illumination | 0,01 lx |
| Form factor | Box |
| Housing material | Aluminium, Plastic |
| I code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Wall |
| Product colour | Black, White |
| Number of sensors | 1 |
| Optical sensor size | 1/1.2 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 0,5 m |
| Detect distance (tele) | 177,9 m |
| Detect distance (wide) | 84,6 m |
| Focal length range | 5.9 - 13.3 mm |
| Identify distance (tele) | 17,8 m |
| Identify distance (wide) | 8,5 m |
| Lens diameter | 1,3 cm |
| Maximum aperture number | 2,9 |
| Minimum aperture number | 1,6 |
| Number of lenses | 1 |
| Observe distance (tele) | 70,6 m |
| Observe distance (wide) | 33,6 m |
| Recognize distance (tele) | 35,6 m |
| Recognize distance (wide) | 16,9 m |
| Zoom capability | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Streaming method | Multicast |
| Infra-red wavelength | 850 nm |
| LED type | AND |
| Night vision | Yes |
| Night vision distance | 50 m |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Doesn't contain | CFR, PVC/BFR |
| Number of cameras | 1 |
| Wiper included | Yes |
| Auto-tracking | Yes |
| Certification | CE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| DC-in jack | Yes |
| Microphone in | Yes |
| RS-485 ports | 1 |
| Terminal block port | Yes |
| Power consumption (max) | 25,5 W |
| Power consumption (Power over Ethernet (PoE)) | 25,5 W |
| Power consumption (typical) | 7,8 W |
| Power source type | DC, PoE |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Line crossing detection |
| Privacy protection | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 4000 MB |
| Compliance certificates | REACH, RoHS |
| Brand Name | Axis |
| Warranty | 5 years |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Supported graphics resolutions | 160 x 120, 2560 x 1600 (WQXGA), 2592 x 1944, 3840 x 2160 |
| Text caption overlay | Yes |
| Total megapixels | 8 MP |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Video streaming | Yes |
