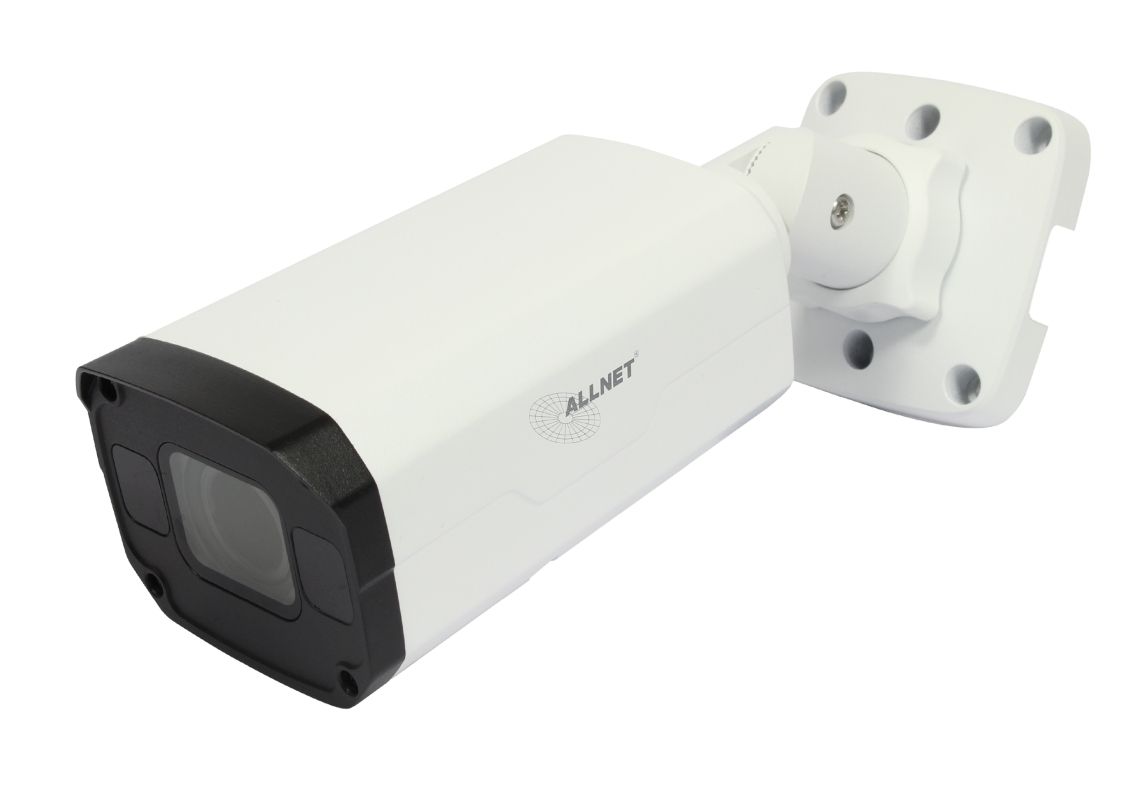

["Highlights: Optics 1/2.7'', with SmartIR light source, up to 50m (164 ft) IR distance Up to 120 dB optical WDR (Wide Dynamic Range) compression Ultra 265, H.265, H.264, MJPEG Triple streams 2592*1944@20fps in the main stream ROI (region of interest) Network ONVIF compliance construction DC12V or PoE power supply Wide voltage range of ±25% in DC Micro SD, up to 256GB Alarm 1 input and 1 output, Audio 1 input and 1 output IP67 Intrusion protection IK10 Vandal proof Links to direct streams see = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx Technical Details: ALL-CAM2496v2-LEFN Camera Sensor 1/2.7\",5.0 megapixel, progressive scan, CMOS Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 60.8 24.3 12.2 6.1 13.5 303.8 121.5 60.8 30.4 Angle of View (H) 106.25°~ 30.42° Angle of View (V) 56.36°~ 17.22° Angle of View (O) 110.34°~34.18° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Color: 0.002Lux (F1.2, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >56 dB IR Range Up to 50m (164ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0 W Dimensions (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) Net Weight 0.92kg (2.0lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A", "optics", "1/2.7'', with light source", "SmartIR, up to 50m (164 ft) IR distance", "Up to 120 dB optical WDR (Wide Dynamic Range)", "Compression", "Ultra 265, H.265, H.264, MJPEG", "Triple streams", "2592*1944@20fps in main stream", "ROI (Region of Interest)", "network", "ONVIF compliance", "Construction", "DC12V or PoE power supply", "Wide voltage range of ±25% in DC", "Micro SD, up to 256GB", "Alarm 1 input and 1 output, audio 1 input and 1 output", "IP67 protection against intrusion", "IK10 vandal-proof"]
