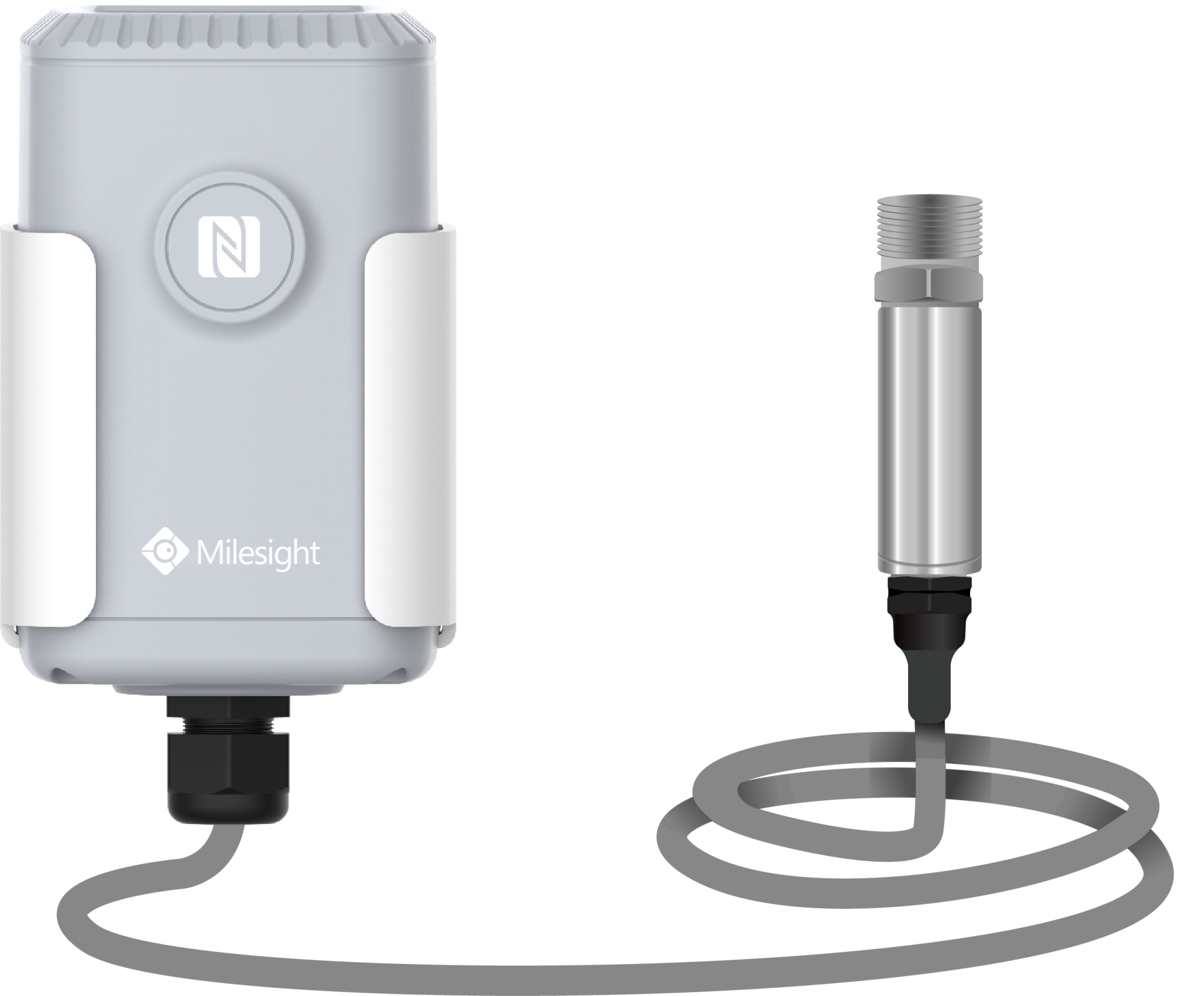

Milesight IoT LoRaWAN Pipe Pressure Sensor EM500
The Milesight EM500-PP is a high-precision pipe pressure sensor for continuous monitoring of liquid or gas pressure in industrial pipelines. Thanks to LoRaWAN® technology, it transmits the measured values wirelessly and energy-efficiently over long distances - ideal for smart industry, smart citie
Availability: In stock
["The Milesight EM500-PP is a high-precision pipe pressure sensor for continuous monitoring of liquid or gas pressure in industrial pipelines. Thanks to LoRaWAN® technology, it transmits the measured values wirelessly and energy-efficiently over long distances - ideal for smart industry, smart cities and supply networks. The robust IP67 housing and the optional different pressure ranges make it perfect for demanding environments", "High-precision pressure measurement (Gauge or Absolute Pressure)", "Different pressure ranges available (e.g. 0-1 bar, 0-10 bar, 0-100 bar)", "Wireless communication via LoRaWAN® (EU868)", "IP67 enclosures for outdoor use and industrial applications", "Robust stainless steel probe (304/316L) for maximum durability", "Long battery life (up to 10 years depending on transfer interval)", "Compatible with Milesight IoT Cloud, TTN, Helium & other platforms", "Model: EM500-PP-868M", "Measuring range: depending on the variant (e.g. 0-10 bar, 0-100 bar)", "Accuracy: ±0.5% FSR (typical)", "Pressure connection: G1/2\" external thread (stainless steel 304/316L)", "Communication: LoRaWAN® 1.0.2 / 1.0.3, EU868", "Range: up to 10 km (open field)", "Battery: 1 × 3.6V ER26500 (replaceable, 8500mAh)", "Battery life: up to 10 years (depending on usage)", "Housing protection: IP67 (waterproof & dustproof)", "Temperature range: -30°C to +70°C", "Dimensions: Sensor housing: approx. 105 × 71 × 69 mm", "Assembly: direct screw connection"]
Specifications
| Modell | EM500-PP-868M |
| Messbereich | je nach Variante (z. B. 0–10 bar, 0–100 bar) |
| accuracy | ±0,5 % FSR (typisch) |
| Druckanschluss | G1/2" external thread (stainless steel 304/316L) |
| Kommunikation | LoRaWAN® 1.0.2 / 1.0.3, EU868 |
| Reichweite | bis zu 10 km (Freifeld) |
| Batterie | 1 × 3,6 V ER26500 (austauschbar, 8500 mAh) |
| Batterielebensdauer | up to 10 years (depending on usage) |
| Housing protection | IP67 (wasserdicht & staubdicht) |
| Temperaturbereich | -30 °C bis +70 °C |
| Abmessungen | Sensor housing: approx. 105 × 71 × 69 mm |
| Montage | Direktverschraubu |
