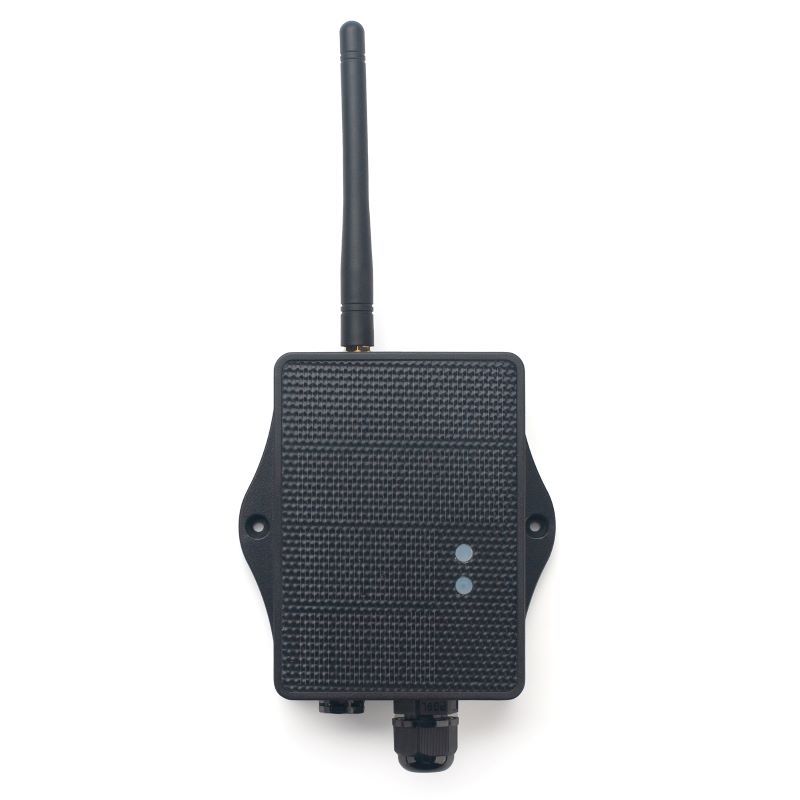

["The Dragino TS01-LS is a LoRaWAN tilt sensor for Internet of Things solutions. The TS01-LB/LS is an outdoor tilt sensor specifically designed for detecting the angle of trees, buildings or large appliances. The TS01-LB/LS measures the tilt and roll angle and converts it into LoRaWAN wireless data, which it sends to the IoT platform via the LoRaWAN network. The LoRa wireless technology used in the TS01-LS allows the device to send data and achieve extremely long ranges at low data rates. It offers spread spectrum communication with extremely long range and high interference immunity with minimal power consumption. The TS01-LS supports BLE configuration and over-the-air OTA updates, making it easier for users to use. The TS01-LS is powered by a solar cell powered + Li-on battery and is designed for long-term use of up to 5 years. Each TS01-LS is pre-loaded with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN servers and it will automatically connect after power on. Supply voltage: Built-in battery, 2.5v ~ 3.6v Operating temperature: -40 ~ 85°C", "LoRaWAN 1.0.3 Class A", "Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865", "Ultra-low power consumption", "Pitch and roll angle detection", "Supports angle alarm", "Supports datalog function", "Battery level monitoring", "Supports Bluetooth v5.1 and LoRaWAN remote configuration", "Supports over-the-air firmware OTA updates", "Uplink at regular intervals", "Downlink to change configuration", "Solar panel + 3000mAh Li-on battery (TS01-LS)", "Measuring pitch and roll", "Accuracy: 0.3°C", "Frequency range, Band 1 (HF): 862 ~ 1020 MHz, Band 2 (LF): 410 ~ 528 MHz", "Max. +22 dBm constant RF output vs", "RX sensitivity: up to -139 dBm", "Excellent blocking immunity", "Non-rechargeable Li/SOCI2 battery", "Self-discharge: <1% / year @ 25°C", "Max. continuous current: 130mA", "Max. charging current: 2A, 1 second", "Sleep mode: 5uA @ 3.3v", "LoRa transmission mode: 125mA @ 20dBm, 82mA @ 14dBm"]
