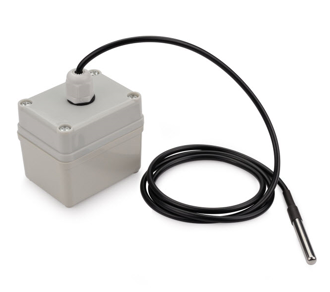

["The LSN50 LoRa Sensor Node is a LoRa Sensor Node with a large range. Er ist für den Außeneinsatz koncept und wird für den Zeiteinsatz mit einer Li/SOCl2-Batterie beutritten. LSN50 wurde entwickelt um Entwickler zu faciliteren schenlen Einsatz von LoRa und IoT Lösungen auf industriale Level. It helps the user to turn the idea into a practical application and let the Internet of Things become reality. Es ist einfach, Ihre Dinge zu programmieren, zu erstellen und überall anzuschließen. The wireless part of the LSN50 is based on SX1276/SX1278 and enables the user to send data and extremely large reach at low data rates. It offers spread-spectrum communication with ultra-high reach and high interference resistance at minimal power consumption. It is aimed at professional wireless sensor network applications such as irrigation systems, intelligent counting systems, intelligent cities, smartphone recognition, building automation, etc. ab. Der LSN50-MCU-Teil verwendet den STM32l0x-Chip von ST, STML0x is der Ultra-Low-Power-Microcontroller STM32L072xx, der die Konnektivitätsleistung des universalen serialen Busses (USB 2.0 crystal-free) mit dem high-performance 32-Bit-RISC-Kern ARM® Cortex®-M0+, der mit einer Frequenz von 32 MHz arbeitt, eine Speicherschutzeinheit (MPU), embedded high-speed memory (192 KByte Flash program memory, 6 KByte data EEPROM and 20 KByte RAM) as well as a comprehensive range of extended I/As and peripheral devices. LSN50 is an open-source product, it is based on the STM32Cube HAL driver and many libraries can be found on the ST-Site for fast development", "STM32L072CZT6 MCU", "SX1276/78 LoRa Wireless Modem", "Preload with ISP bootloader", "I2C,LPUSART1,USB", "18 x Digital I/Os", "2 x 12bit ADC; 1 x 12bit DAC", "Wake up the MCU by UART or interrupt", "LoRa™ modem", "Preamble detection", "Baud rate configurable", "LoRaWAN 1.0.2 specification", "Software based on STM32Cube HAL drivers", "Open source hardware/software", "Available Band:433/868/915/920Mhz", "IP66 waterproof housing", "Ultra-low power consumption", "AT commands for setting parameters", "4000mAh battery for long-term use", "Wireless alarm and security systems", "House and building automation", "Automatic meter reading", "Industrial monitoring and control", "Long distance irrigation systems, etc", "168 dB maximum link budget", "+20 dBm - 100 mW constant RF output power compared", "+14 dBm high efficiency PA", "Programmable bit rate up to 300 kbps", "High sensitivity: up to -148 dBm", "Bulletproof front end: IIP3 = -12.5 dBm", "Excellent blocking resistance", "Low RX current of 10.3mA, 200nA register hold", "Fully integrated synthesizer with a resolution of 61 Hz", "FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation", "Built-in bit synchronizer for clock recovery", "Preamble detection", "127 dB dynamic range RSSI", "Automatic RF detection and CAD with ultra-fast AFC", "Packet engine up to 256 bytes with CRC", "Built-in temperature sensor and low battery indicator", "MCU: STM32L072CZT6", "Flash:192KB", "SRAM:20KB", "EEPROM:6KB", "Clock Speed: 32Mhz", "VCC: 0.5v ~ 3.9v", "Operating Temperature: -40 ~ 85°C", "I/O pins: 0.5v ~ VCC+0.5V", "Supply Voltage: 1.8v ~ 3.6v", "Operating Temperature: -40 ~ 85°C", "I/O pins: Refer STM32L072CZT6 datasheet", "STOP mode: 2.7μA @ 3.3v", "RX Mode: 7.2mA", "TX Mode: 125mA@ 20dbm", "Li/SOCI2 unchargable battery", "Capacity: 4000mAh", "Self Discharge: <1% / Year @ 25°C", "Max continuous current: 130mA", "Max boost current: 2A, 1 second", "1 x Dragino LSN50-EU868"]
