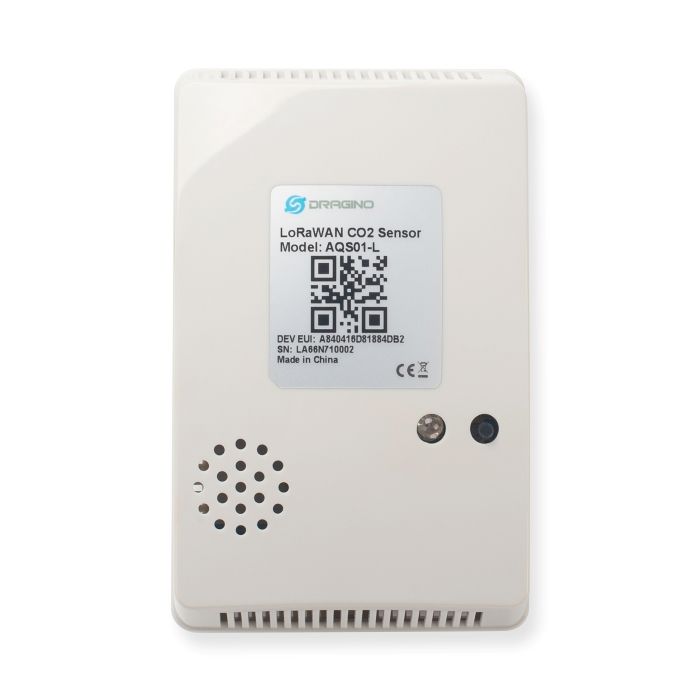

DRAGINO Sensor LoRa Air quality sensor (CO2) AQS01-L-EU868
The Dragino AQS01-L is an indoor LoRaWAN air quality sensor for the Internet of Things solution. It is designed to measure the environmental parameters including: CO2, temperature, relative humidity and barometric pressure, which are then uploaded to the IoT server via the wireless LoRaWAN protocol.
Availability: In stock
["The Dragino AQS01-L is an indoor LoRaWAN air quality sensor for the Internet of Things solution. It is designed to measure the environmental parameters including: CO2, temperature, relative humidity and barometric pressure, which are then uploaded to the IoT server via the wireless LoRaWAN protocol. AQS01-L is powered by an ER18505 4000mAh battery. The battery can last more than 2 years and is easy to change. AQS01-L supports BLE configuration and over-the-air OTA updates, making it easier for users to use. AQS01-L supports CO2 alarm and temperature alarm* functions, so the user can receive an alarm immediately. AQS01-L supports datalog function, user can get the sensor data via LoRaWAN commands. Note: CO2 alarm and temperature alarm significantly reduce battery life. LoRaWAN 1.0.3 Class A Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 CO2/Temperature/Relative Humidity/Pressure monitoring Supports CO2 alarm Supports datalog function Supports Bluetooth v5.1 and LoRaWAN remote configuration Supports wireless OTA firmware update Uplink periodically downlink to change configuration 4000mAh batteries powered supermarket wine cellar children's room school gym office", "Supply voltage: built-in 4000mAh Li-SOCI2 battery, 2.5v ~ 3.6v", "Operating temperature: -20 ~ 65°C", "Target gas: carbon dioxide (CO2)", "Operating principle: Non-dispersive infrared (NDIR)", "Operating range: 0-50°C, 0-85% RH (non-condensing)", "Measuring range: 400ppm to 5000 ppm (extended range up to 10000 ppm)", "Measuring accuracy: type ±(50 ppm +3% of reading)", "Pressure compensation", "Range: -20~65°C", "Measuring accuracy: type ±1.0 at 0-65°C", "Resolution: 0.01°C", "Range: 0~99.9%RH", "Accuracy: ±3%RH (20~80%RH)", "Resolution: 0.008%RH", "Long-term stability: 0.5%RH/year", "Range: 300~1100hPa", "Accuracy: ±1.0hPa (0-65°C)", "Resolution: 0.18Pa", "Long-term stability: ±1.0 hPa/year", "Frequency range, Band 1 (HF): 862 ~ 1020 MHz", "Max. +22 dBm constant RF output vs", "RX sensitivity: up to -139 dBm", "Excellent blocking immunity", "Non-rechargeable Li/SOCI2 battery", "Capacity: 4000mAh", "Self-discharge: <1% / year @ 25°C", "Sleep mode: 6uA @ 3.3v", "LoRa transmission mode: 125mA @ 20dBm, 82mA @ 14dBm"]
Specifications
| Supply voltage | eingebauter 4000mAh Li-SOCI2 Akku, 2.5v ~ 3.6v |
| Betriebstemperatur | -20 ~ 65°C |
| Zielgas | Kohlendioxid (CO2) |
| Funktionsprinzip | Nichtdispersives Infrarot (NDIR) |
| Betriebsbereich | 0-50°C, 0-85% RH(nicht kondensierend) |
| Messbereich | 400ppm bis 5000 ppm (erweiterter Bereich bis zu 10000 ppm) |
| Measurement accuracy | Typ ±(50 ppm +3% vom Messwert) |
| Bereich | -20 ~ 65 °C |
| resolution | 0.01°C |
| accuracy | ± 3%RH (20 ~ 80%RH) |
| Long-term stability | 0,5 %RH/Jahr |
| Frequenzbereich, Band 1 (HF) | 862 ~ 1020 Mhz |
| RX sensitivity | bis zu -139 dBm. |
| capacity | 4000mAh |
| self-discharge | <1% / Jahr @ 25°C |
| Schlafmodus | 6uA @ 3.3v |
| LoRa-Sendemodus | 125mA @ 20dBm, 82mA @ 14dBm |
