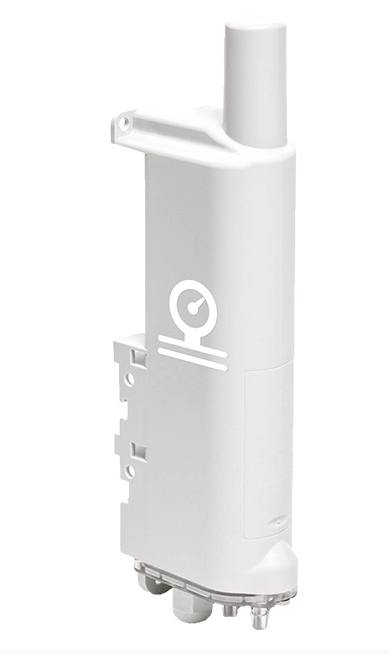

Adeunis LoRa LoRaWAN DeltaP atmospheric pressure sensor EU868 ARF8283AA
LoRa Adeunis LoRaWAN DeltaP Atmospheric Pressure Sensor DeltaP LoRaWAN™ EU863-870 Soldered battery / IP68 Monitor the operation of a ventilation box, ventilation device or building air system
Availability: In stock
["LoRa Adeunis LoRaWAN DeltaP Atmospheric Pressure Sensor DeltaP LoRaWAN™ EU863-870 Soldered battery / IP68 Monitor the operation of a ventilation box, ventilation device or building air system", "Pressure difference: relative to atmospheric pressure or between two different zones", "2 digital inputs/outputs: for connection to a PLC to track alarms or operating states", "1 analog input 0-10V: for connecting to a sensor", "Periodic or event mode", "Operating temperature range: -20°C /+70°C", "Delta pressure: -500/+500Pa", "Accuracy: +/- 25Pa", "Housing: IP68", "Dimensions: 200 x 63.5 x 34mm", "Replaceable battery", "Integrated mounting system: DIN rail, tube, wall, collar", "Zone:", "Sigfox: RC1", "LoRaWAN®: EU863-870", "Standards: Directive 2014/53/UE (RED)"]
Specifications
| Druckdifferenz | relative to atmospheric pressure or between two different zones |
| 2 digital inputs/outputs | for connection to a PLC to track alarms or operating states |
| 1 Analogeingang 0-10V | zum Anschluss an einen Sensor |
| Betriebstemperaturbereich | -20°C /+70°C |
| Delta-Druck | -500/+500Pa |
| accuracy | +/- 25Pa |
| Housing | IP68 |
| Abmessungen | 200 x 63,5 x 34 mm |
| Integriertes Befestigungssystem | DIN-Schiene, Rohr, Wand, Kragen |
| Sigfox | RC1 |
| LoRaWAN® | EU863-870 |
| Normen | Directive 2014/53/UE (RED) |
