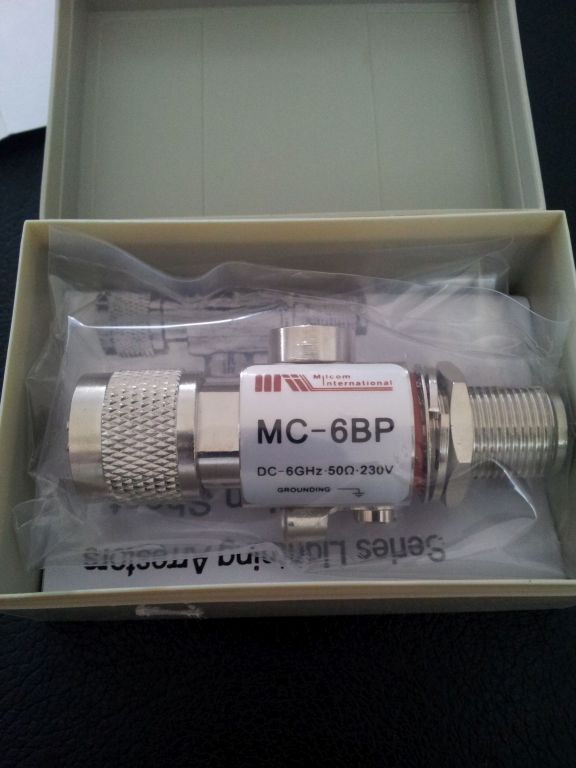

ALLNET Antennen-Blitzschutz 2,4~5 GHz N-Type M -> N-Type F
The device features a bulkhead N-socket with a rubber "O" ring seal for mounting through a housing wall or via the optional stainless steel mounting bracket. Due to its superior RF performance, this device is ideal for IEEE 802.11a and other 0-6 GHz ISM and UNII applications as well as 3.5 GHz WLL a
Availability: In stock
["The device features a bulkhead N-socket with a rubber \"O\" ring seal for mounting through a housing wall or via the optional stainless steel mounting bracket. Due to its superior RF performance, this device is ideal for IEEE 802.11a and other 0-6 GHz ISM and UNII applications as well as 3.5 GHz WLL applications. Both Pors ports on this device are equally protected. This provides protection no matter which direction it is installed", "Reliable DC 0~6GHz performance", "High-performance lightning protection", "Multi-Strike Capability", "EEE 802.11a, 802.11b and 802.11g wireless LAN applications", "ISM, MMDS, Cellular and PCS", "Dimensions 68x23x31 mm"]
Specifications
| Frequency Range | 0 – 6 GHz |
| VSWR | 1.2:1 Max (0-6 GHz) |
| Insertion Loss | 0.6 dB Max (0-6 GHz) |
| Impedance | 50 Ohm |
| Withstand Power | 200 PEP |
| Discharge Voltage | DC230V +/- 15% |
| Puls Voltage (1x40) us | 1000V |
| Puls Current (1x40) us | 6KA |
| Resistance at 100v | >10,00M OHM |
| Dimensions | 68x41x23mm |
| Weight | 140g |
