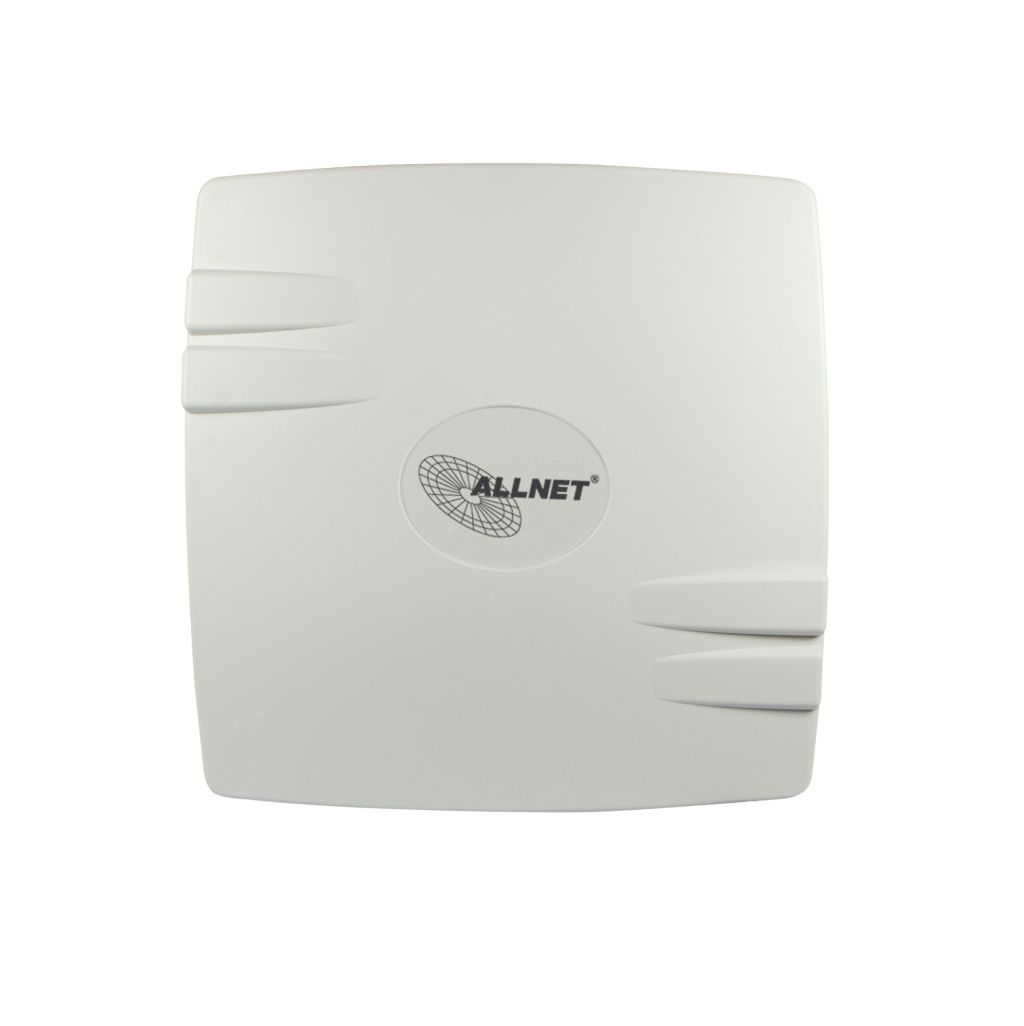

ALLNET Antenne 2,4/5 GHz 4/7dBi Flat Patch Outdoor N-Type female
€81,03
Nominal 25° @ 2,45GHz Nominal 15° @ 5,8GHz Nominal 35° @ 2,45GHz Nominal 25° @ 5,8GHz
Availability: In stock
Secure payment · Fast delivery
EAN:4038816926609Categories:, , Brand:
Nominal 25° @ 2,45GHz Nominal 15° @ 5,8GHz Nominal 35° @ 2,45GHz Nominal 25° @ 5,8GHz
Specifications
Specifications
| Frequency range | 2400MHz - 2500MHz 5150MHz - 5850MHz |
| VSWR | Nominal 1.5:1, Maximal 2:1 |
| Nominal Impedance | 50 ohm |
| Gain | 4 dBi @ 2,45GHz 7 dBi @ 5,8GHz |
| Polarization | Vertical or Horizontal |
| Azimuth Beamwidth (3dB) | Nominal 25° @ 2,45GHz Nominal 15° @ 5,8GHz |
| Elevation Beamwidth (3dB) | Nominal 35° @ 2,45GHz Nominal 25° @ 5,8GHz |
| Maximum Power | 10 W |
| Enclosure | 185mm x 185mm x 45mm |
| Connectors | N female |
| IP Protection | IP 67 |
| Temperature range | from -40 °C to 80 °C |
| Wind Speed | 160Km/h |
