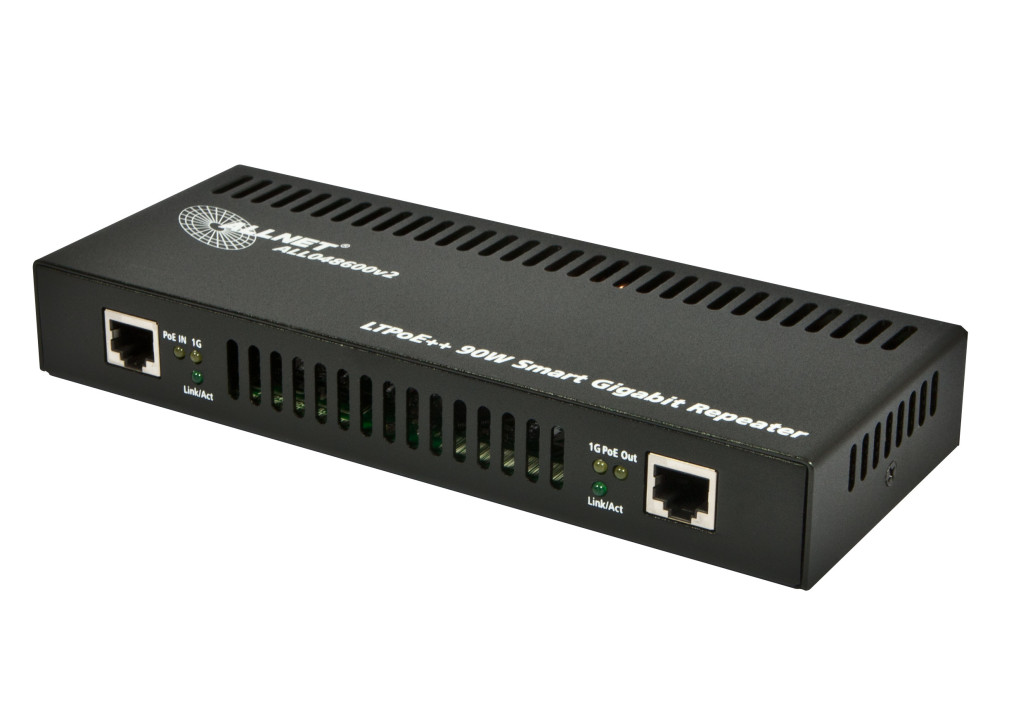

ALLNET ALL048600v2 / PoE Gigabit Repeater PoE++ 90W
Power over Ethernet, simply extend by 100m. The Power Over Ethernet Repeater ALLNET ALL048600 extends the PoE and network range by 100m. Depending on the PoE input power, up to 6 repeaters can be connected in a row. For example, we recommend the ALLNET ALL048900 LT PoE injector for the output power.
Availability: In stock
["Power over Ethernet, simply extend by 100m. The Power Over Ethernet Repeater ALLNET ALL048600 extends the PoE and network range by 100m. Depending on the PoE input power, up to 6 repeaters can be connected in a row. For example, we recommend the ALLNET ALL048900 LT PoE injector for the output power. LT PoE++ IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab 1000BaseT 1x RJ45 input (data and power) 1x RJ45 output (data and power) System: 2.1A (Max.120W), StandBy: typ. 1.5W Operating temperature: 0 ~ 50 °C Operating humidity: 10% ~ 90% (non-condensing) Storage temperature: -40 ~ 70 °C Storage humidity: 5% ~ 90% (non-condensing)", "2x Gigabit Ethernet ports PoE (data and power)", "LT PoE++, IEEE802.3 at+/at/af", "Up to 6 repeaters can be cascaded"]
Specifications
| Element | Spezifikation |
| Supported standards | LT PoE++ IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab 1000BaseT |
| Connections | 1x RJ45 input (data and power) 1x RJ45 output (data and power) |
| LED Indikatoren | Power / PoE Act/Status |
| Spannungseingang | PoE 36~57V |
| Spannungsausgang | LT PoE++, 802.3af/at/at+ |
| Stromverbrauch | System: 2,1A (Max.120W), StandBy: typ. 1,5W |
| Housing | Metal housing, wall mounting possible |
| Mass | Length/width/height: 200 x 80 x 36 mm |
| Weight | 253g (without power supply and packaging) |
| Vicinity | Operating temperature: 0 ~ 50 °C Operating humidity: 10% ~ 90% (non-condensing) Storage temperature: -40 ~ 70 °C Storage humidity: 5% ~ 90% (non-condensing) |
| Labeling | CE |
