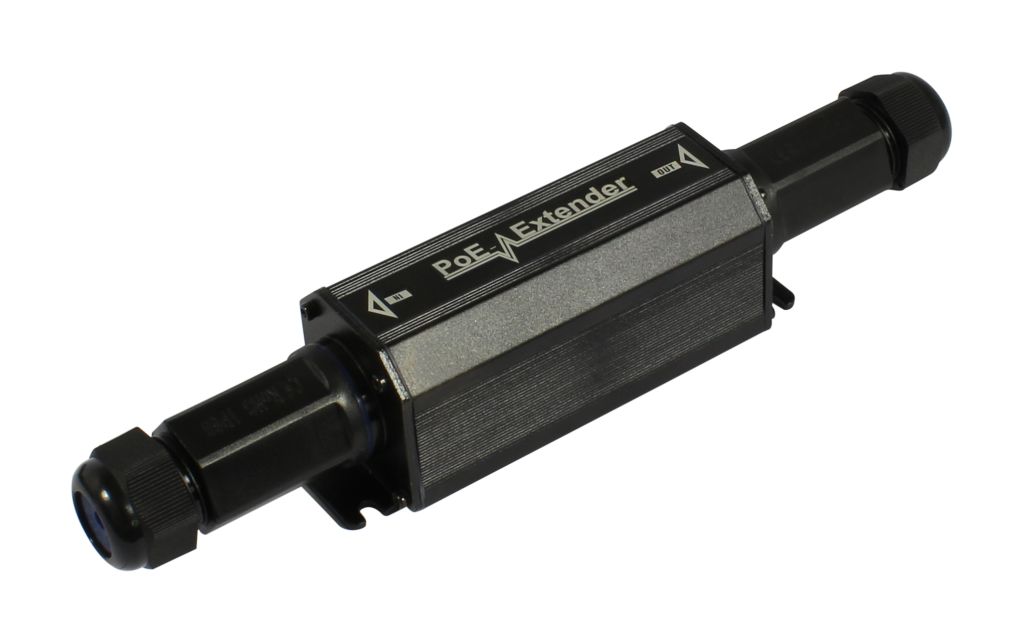

["The new ALL-PR2012P-E PoE repeater extends the PoE signal by 100 meters each. This length is usually the maximum distance for the PoE supply of power and data. With the help of the repeater, up to 300 meters of PoE can be achieved if a new device is installed every 100 meters. This is only possible because it is an active device and the signal is continually reprocessed. The repeater is fed with IEEE802.3at and outputs IEEE802.3af PoE. Thanks to the highest certification for protection class IP67, the product is suitable for outdoor use as it is dustproof and protected against constant submersion. Installing the outdoor repeater is visibly simple and is shown in the diagram below. To give a better idea of the concept of an outdoor repeater, here are some usage scenarios: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE802.3af for POE IEEE802.3at for POE+ 1x 10/100/1000M PoE (IEEE802.3at POE+) INPUT 1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) Pin Assignment and Polarity: 1/2 (+), 3/6 (-) Output power: up to 25W Outdoor type shielded category 5 (or higher)", "Outdoor IP67 Gigabit Extender Repeater", "1x 10/100/1000M PoE (IEEE802.3at POE+) INPUT", "1x 10/100/1000M PoE (IEEE802.3at POE+) OUTPUT", "Max. OUTPUT Power 25W, PoE Pin 1/2(+) 3/6 (-)", "Extended operating temperature: -25°C to +55°C", "Power and data supply for an outdoor IP camera", "Connecting a switch in a small building to the headquarters", "Possibility of an emergency IP telephone outside the company building", "Bridging a longer distance between two buildings"]
