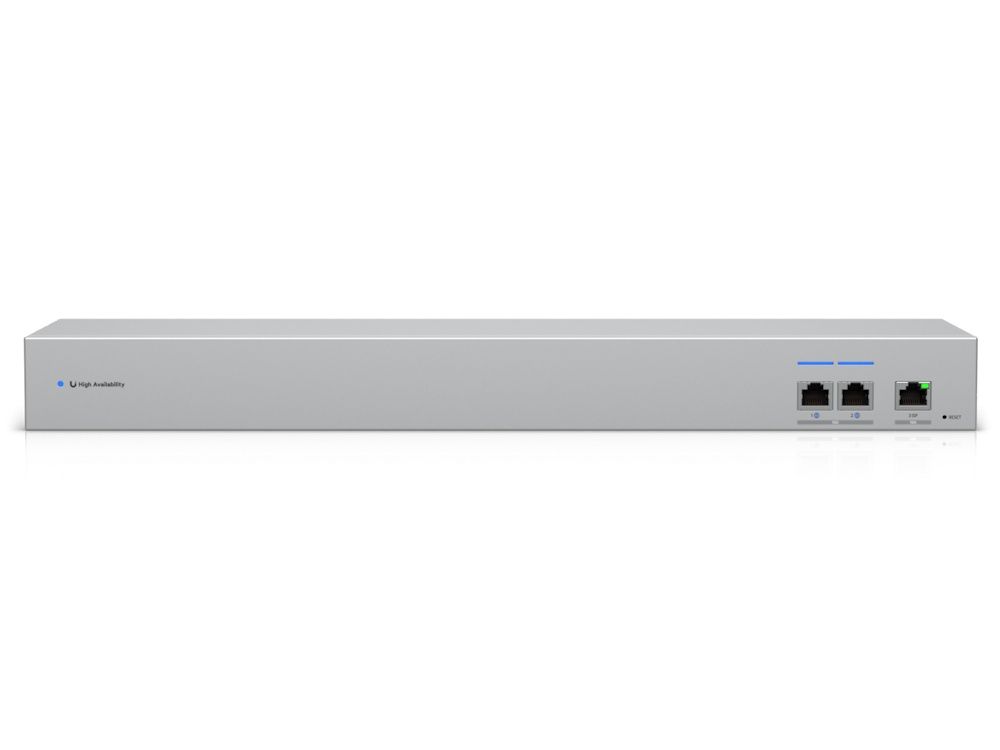

Ubiquiti UniFi WAN Switch RJ45 Managed Network
The Ubiquiti UniFi WAN Switch RJ45 is a professional 10 GbE switch for creating a High Availability setup with UniFi Gateways. This rackmount switch is specially designed to simultaneously connect two gateways to one internet connection (ISP), with automatic failover via Shadow Mode. Thanks to the fast 10 Gbps RJ45 ports, this model is ideal for mission-critical networks.
- For High Availability (Shadow Mode) UniFi Gateway
- 3x 10G RJ45 (2x out) and 1x Gigabit RJ45 (management)
- Redundant AC power supply
Availability: In stock
Features Ubiquiti UniFi WAN Switch RJ45
Links two gateways to one ISP via 10G RJ453x 10G RJ45 ports (1x input, 2x output)1x Gigabit RJ45 management portSuitable for High Availability via Shadow Mode20 Gbps switching capacity, 15 Mpps forwarding rateRedundant power supply via dual AC inputHousing made of robust SGCC steel (rack mount 1U)Fully manageable via UniFi Network Controller (v9.1.120+)NDAA compliant, CE, FCC and IC certified
Maximum performance for critical networks
The Ubiquiti UniFi WAN Switch RJ45 combines high speed with maximum reliability. The three multi-gigabit RJ45 ports (10G/5G/2.5G/1G/100M) provide a powerful and flexible WAN connection, for example between two gateways and an ISP. For multi-carrier installations, a second USW-WAN-RJ45 switch can be added for additional ISP redundancy.
Secure and energy-efficient WAN switch
This 1U rackmount switch features extensive ESD and EMP protection, operates at temperatures from -5 to 40°C and consumes a maximum of 18 watts. The dual AC power increases availability, and the UniFi Network software makes management and monitoring extremely easy through one dashboard.
Package contents
- Ubiquiti UniFi WAN Switch RJ45
- Power cables (2x)
- Rackmount brackets
- Installation manual
Specifications
| Brand | Ubiquiti |
| Article number | USW-WAN-RJ45 |
| EAN | 0810177160120 |
| LAN ports | 2 |
| PoE | Without PoE |
| SFP support | No SFP |
| Managed | Managed |
| 10GbE support | Yes |
| 5GbE support | Yes |
| 2.5GbE support | Yes |
| Stackable | No |
| Controller based | Yes; UniFi compatible |
| IGMP snooping | No |
| Rack mountable | Yes |
| Fanless | Yes |
