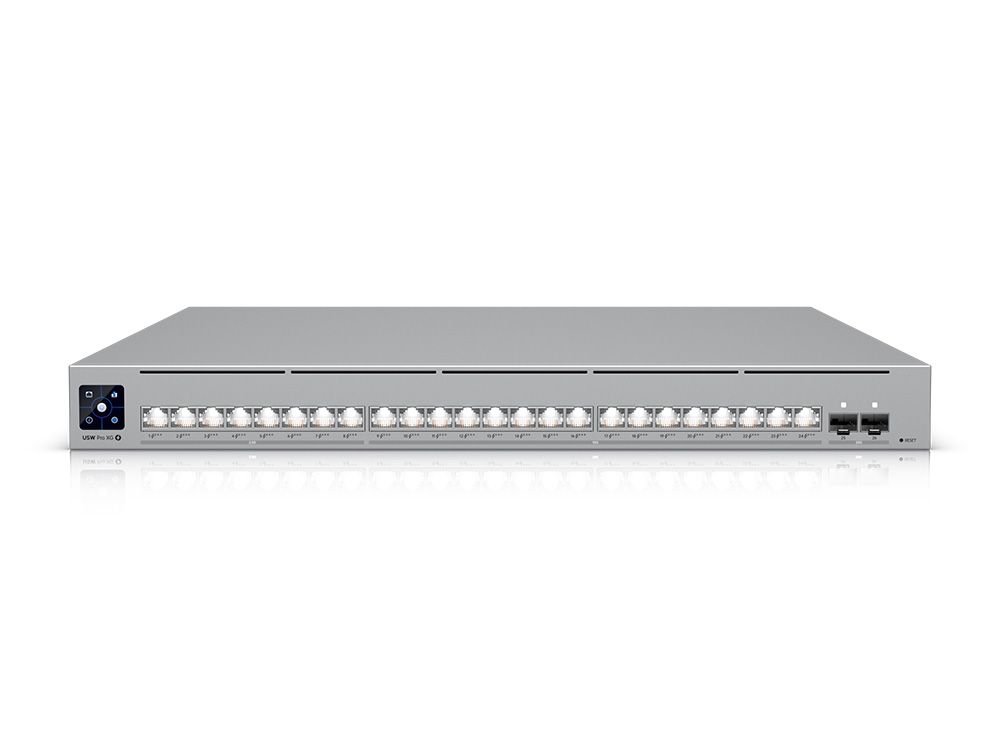

Features Ubiquiti USW-Pro-XG-24-PoE:

24 x PoE+++ Ethernet ports (16 x 10G + 8 x 2.5G)2 x 25G SFP28 uplink portsMaximum PoE budget of 720WFull Layer 3 supportManagement via UniFi Network ControllerSwitching capacity of 460 Gbps1.3" touchscreen and Etherlighting™ status displayRack-mountable (1U, 19") with RPS backup option

24 high speed PoE+++ ports

The USW-Pro-XG-24-PoE has 24 RJ45 ports, of which 16 ports support up to 10 Gbps and 8 ports support up to 2.5 Gbps. Each port delivers a maximum of 90W via PoE+++, which is more than sufficient for high-end access points, cameras or AV equipment. The total PoE budget is 720W, with automatic distribution among active devices.

Speed ​​and capacity for demanding networks

With a switching capacity of 460 Gbps and non-blocking throughput of 230 Gbps, this switch effortlessly processes large amounts of data traffic. Ideal for environments where performance and stability are vital, such as offices, AV installations or campus networks.

Flexible uplinks via 25G SFP28

For fast connection to your core or aggregation layer, the Ubiquiti USW-Pro-XG-24-PoE offers two SFP28 ports with 25G speed. This way you can connect multiple switches or servers without limiting performance.

Advanced Layer 3 functionalities

The built-in Layer 3 options such as DHCP server, DHCP relay, static routing and inter-VLAN routing make it possible to segment the network in detail. This increases control and optimizes performance within larger networks.

Management via UniFi and visual feedback

Like other Ubiquiti switches, this model is easy to manage via the UniFi Network Controller (v9.1.120 or higher). Via the integrated 1.3" touchscreen and Etherlighting™ you can see port status and power consumption at a glance.

Robust design for professional use

The SGCC steel housing is suitable for 19" rack mounting and supports depths from 600 to 1,066 mm. The switch weighs 8 kg including mounting brackets and operates in temperatures from -5 to 40°C. Thanks to the support for a redundant power system (RPS), operation is guaranteed, even in the event of a power outage.

Package contents

• Ubiquiti USW-Pro-XG-24-PoE
• Rackmount brackets + mounting material
• Power cable
• Quick start guide
