Features Ubiquiti USW-Pro-Max-24-PoE:

Managed switch, management via UniFi Network Controller

Easy cable management thanks to Etherlightning

2x 10 Gigabit SFP+ port (10 Gbps uplinking)

8x 2.5 Gigabit PoE++ RJ-45 port

8x Gigabit PoE+ RJ45 port, 8x Gigabit PoE++ RJ45 port

8x PoE/PoE+ (802.3af/at, 15.4W/30W) and 16x PoE++ (802.3bt, 60W)

Total PoE budget: 400W

Switching capacity: 112 Gbps

1.3" LCM touch screen

Dimensions: 442.4 x 325 x 43.7 mm

Layer 3 functions

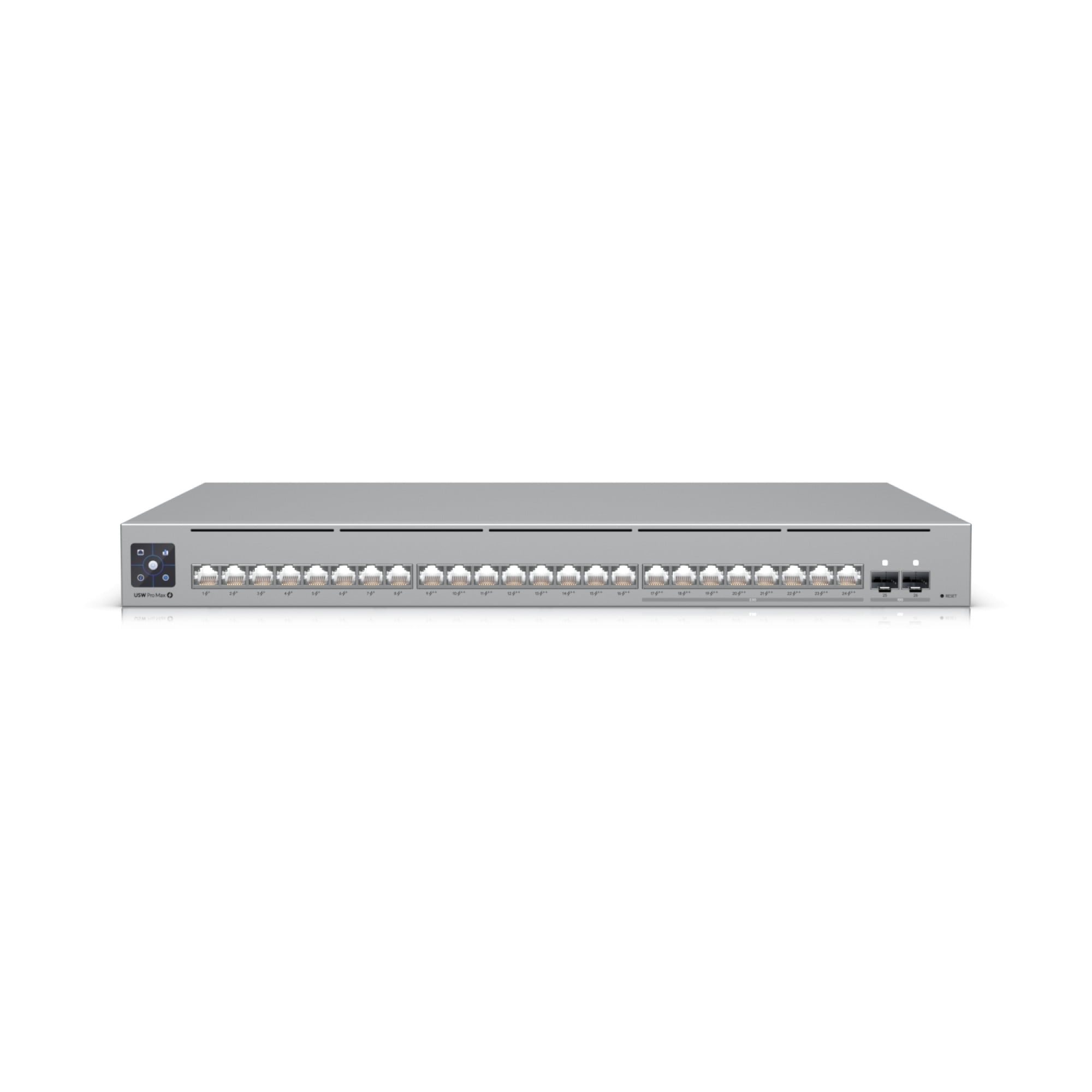

Managed 24-port Gigabit PoE++ switch

The Ubiquiti USW-Pro-Max-24-PoE switch provides connected network equipment in addition to a data connection, also 802.3af/at PoE+ via 8 Gigabit LAN ports and 802.3bt PoE++ via 8 Gigabit and 8 2.5 Gigabit LAN ports. For example, connect access points, IP cameras and VoIP telephones to the managed 24-port switch and provide these devices with power and a data connection at the same time. In addition to all Ethernet ports, the switch also has 2 10 Gigabit SFP+ ports.

Easy cable management thanks to Etherlightning

No more physical labels or consideration of the color of network cables. Cable management is child's play thanks to Etherlightning. You can quickly identify the port location, speed/connection and VLANs/networks because the ports light up.

Check out Etherlightning on the USW-Pro-Max-24-PoE

Ubiquiti UniFi Network Controller software

With Ubiquiti UniFi Network Controller software you can easily configure and manage the USW-Pro-Max-24-PoE switch. For example, read the status per port or set any VLANs. The software also makes it possible to access multiple switches, so that you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform software updates or adjust configurations. You don't have to pay anything for the UniFi Controller software and no licenses are required.

Package contents

• Ubiquiti UniFi switch Pro Max 24 PoE (USW-Pro-Max-24-PoE)
• Mounting brackets for in a rack
• Mains cable
• Fastening material
