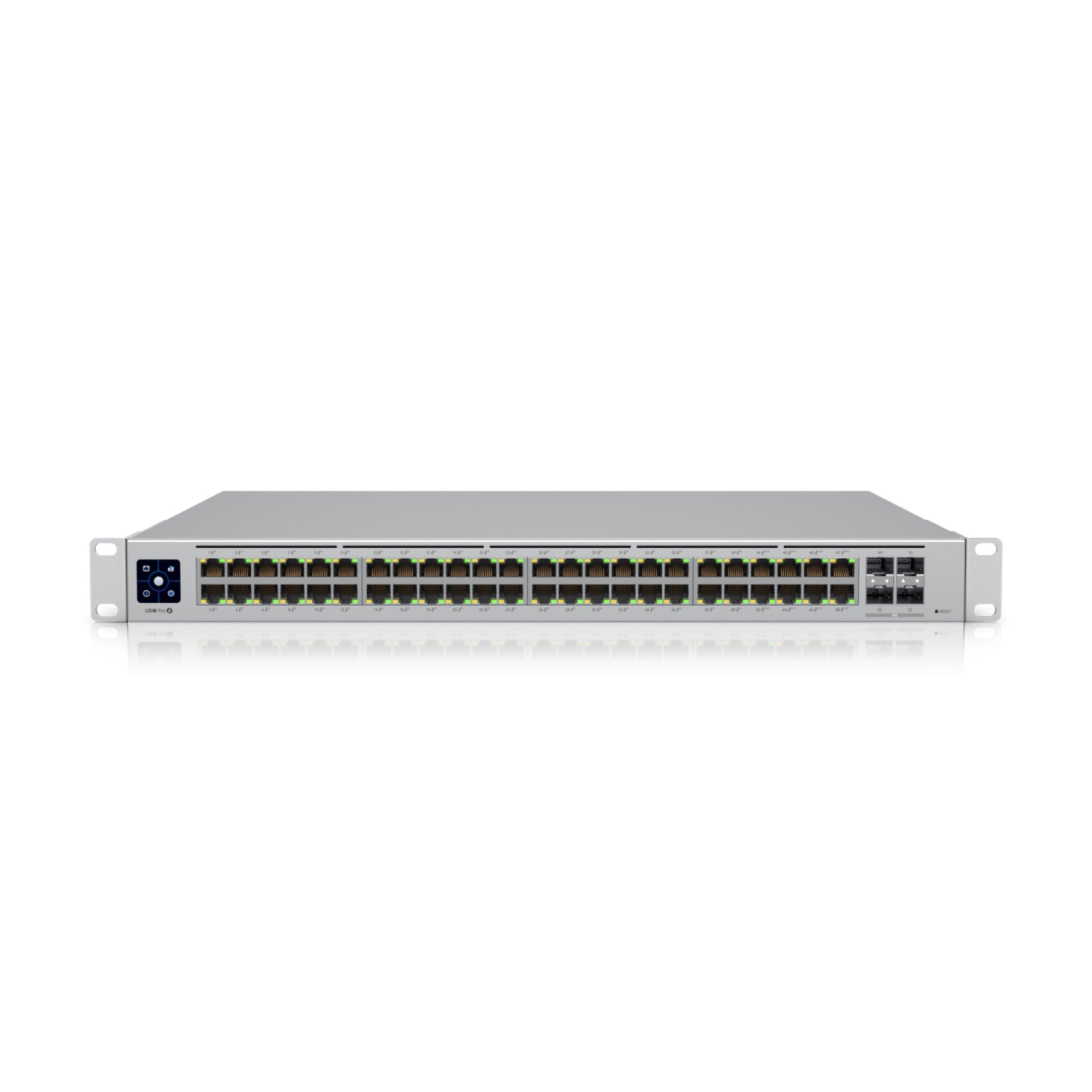

Features Ubiquiti USW-Pro-48-POE Gen2:

Managed switch, management via UniFi Network Controller

4x SFP+ port (10Gbps uplinking)

48x Gigabit RJ45 port

40x PoE+ (802.3at) and 8x PoE++ (802.3bt)

Total PoE budget: 600W

Switching capacity: 88 Gbps

1.3" LCM touchscreen

Dimensions: 442.4 x 399.6 x 43.7 mm

Layer 3 features (available after future software update)

Rack mountable (19", 1U), including mounting kit

48-port Gigabit PoE switch

In addition to a data connection, the Ubiquiti USW-Pro-48-POE Gen2 switch supplies connected network equipment with power via 40 LAN ports with PoE+ (802.3at) and via 8 LAN ports with PoE++ (802.3bt). For example, connect access points, IP cameras and VoIP telephones to the managed 48-port switch and provide these devices with power and data at the same time. The switch also has 4 SFP+ ports with 10Gbps uplinking for fast fiber optic connections.

Ubiquiti UniFi Network Controller software

With Ubiquiti UniFi Network Controller software you can easily manage and configure the USW-Pro-48-POE Gen2 switch. For example, read the status per port or set any VLANs. The software also makes it possible to access multiple switches, so you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform updates or adjust configurations using the software. You do not have to pay anything for the UniFi Controller software and no licenses are required.

Package contents

• Ubiquiti UniFi Switch USW-Pro-48-POE Gen2
• Rackmount Brackets and mounting kit
• Power cable
• Manual
