Features Ubiquiti USW-Pro-24-POE Gen2:

Managed switch, management via UniFi Network Controller

2x SFP+ port (10Gbps uplinking)

24x Gigabit RJ45 port

16x PoE+ (802.3at) and 8x PoE++ (802.3bt)

Total PoE budget: 400W

Switching capacity: 88 Gbps

1.3" LCM touch screen

Dimensions: 442.4 x 285.4 x 43.7 mm

Layer 3 features (available after future software update)

Rack mountable (19", 1U), including mounting kit

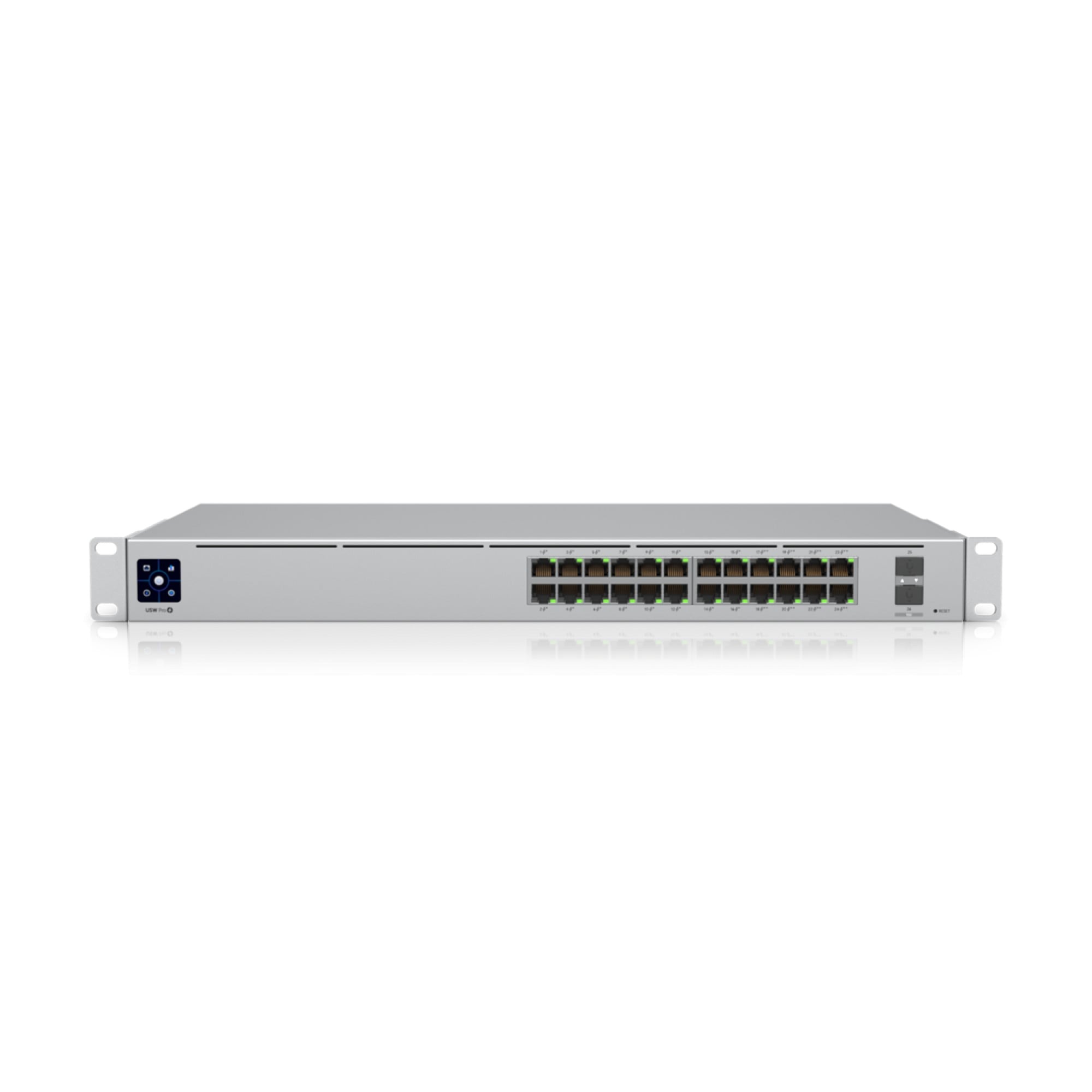

24-port Gigabit PoE++ switch

The Ubiquiti USW-Pro-24-POE Gen2 switch provides connected network equipment in addition to a data connection, also 802.3at PoE+ via 16 LAN ports and 802.3bt PoE++ via 8 LAN ports. For example, connect access points, IP cameras and VoIP telephones to the managed 24-port switch and provide these devices with power and data at the same time. In addition to the 24 Ethernet ports, the switch has 2 SFP+ ports with 10Gbps uplinking.

Ubiquiti UniFi Network Controller software

With Ubiquiti UniFi Network Controller software you can easily manage and configure the USW-Pro-24-POE Gen2 switch. For example, read the status per port or set any VLANs. The software also makes it possible to access multiple switches, so you can manage switches from different locations from one central point. The devices are clearly displayed and you can perform updates or adjust configurations using the software. You do not have to pay anything for the UniFi Controller software and no licenses are required.

Package contents

• Ubiquiti UniFi Switch USW-Pro-24-POE Gen2
• Rackmount brackets and mounting kit
• Power cable
• Manual
